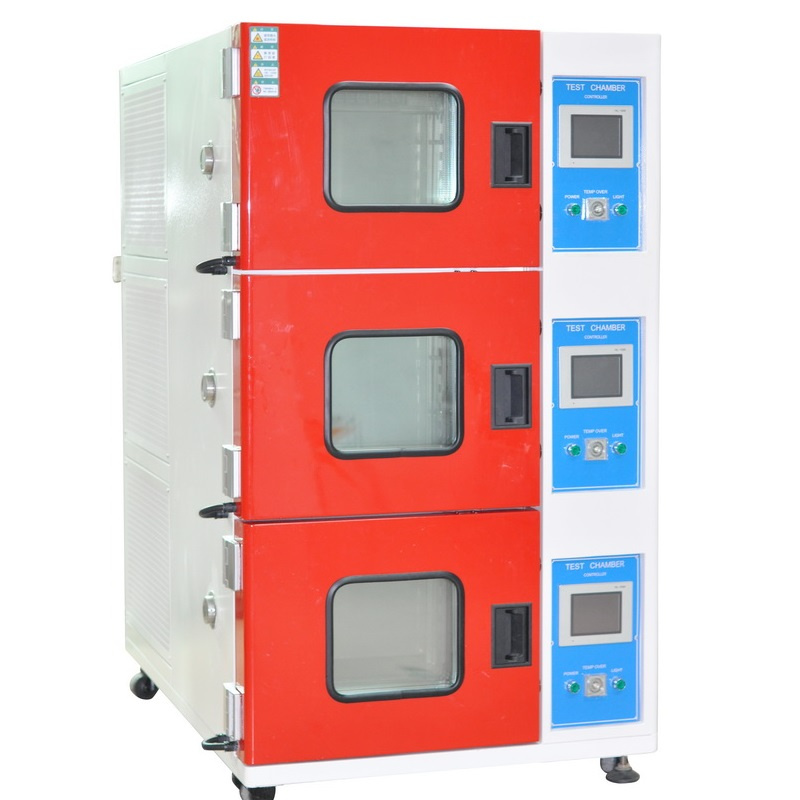

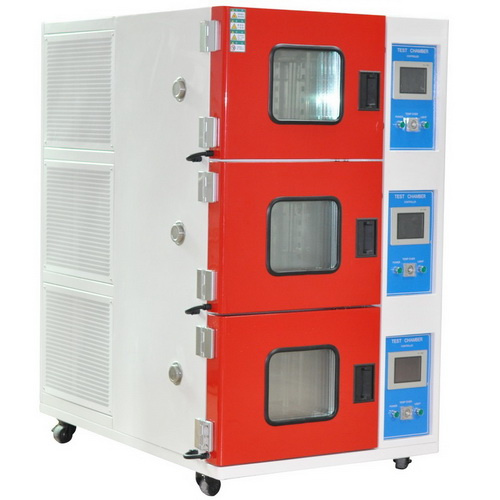

Multifunctional Three Layers Programmable Temperature and Humidity Test Chamber

Name: Multifunctional Three Layers Programmable Temperature and Humidity Test Chamber
Brand: China-Manufacturer-Directory.com
SKU: 731225225
Availability: InStock
Rating: 4.4 (141 reviews)

Supplier:	Dongguan Sinowon Precision Instrument Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	QTH3-80B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Humid. Range:	10% ~98%R.H.
Temp. Range:	-70 Deg C to 150 Deg C
Temp. Heating Rate:	1 - 2 Deg C Per Min
Temp. Cooling Rate:	Average 2 - 3 Deg C Per Min
Power Supply:	380V/50Hz/3p/4wire
Exterior Material:	Stainless Steel with Baking Paint
Interior Material:	SUS304# Stainless Steel
Insulation Material:	Rigid Polyurethane Foam
Refrigeration System:	Mechanical Cascade Refrigeration System; Fin Type
Circulation System:	Mechanical Convection System
Type:	Temperature Humidity Test Chamber

Product Description

Three layers multifunctional Temperature and Humidity Test Chamber simulates a full range of temperature and humidity conditions to test reliability, durability, climatic, freezing resistance, quality assurance, thermal endurance etc.

Application Range:

1, Electronics, electrical appliances, sensors

2, Semiconductor, PCB, LCD & LED

3, Medicals tests

4, Mechanical, Military, aerospace products

5, Vehicles, Transport, automobile supply industries

6, Chemicals, Petrochemical industries

7, Building materials, Plastics, Textile industries

8, Testing metal related industries like plating etc.

9, Instrumentation

Characteristics:

1, Chamber exterior material is stainless steel with environmentally baking paint resists corrosion and provides impact resistance. Interior material is SUS304# stainless steel with excellent heat resistance and easy to clean.

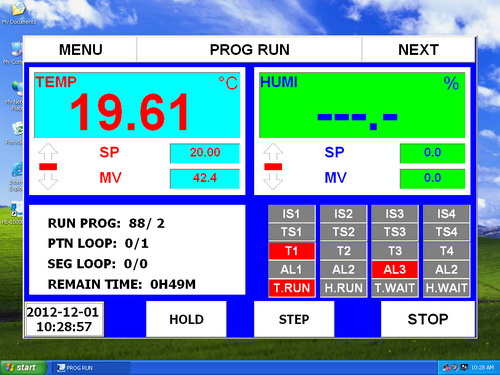

2, Q1-Test HL-1000 touch screen controller is designed to save chamber programming and setup time with temperature limit and alarm to protect your product.

3, Safety relay connection is provided to protect your device under test by removing power to it when the chamber is not running.

4, RS-232 communications is for computer connection, programming can be set on computer by software, monitor testing process and automatically execute power on/off functions.

5, Fog-free viewing window and interior light makes viewing workspace freely and observe the test under best conditions.

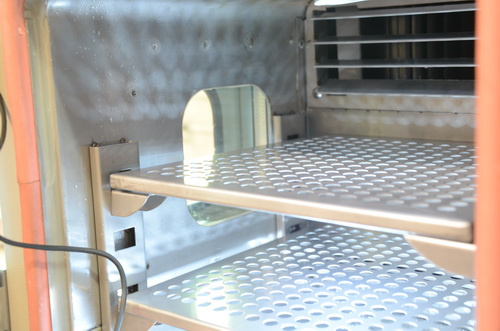

6, Adjustable product shelf slides out for easier product access. Shelf design is non-tipping and supports large product loads.

7, Left side of chamber with diameter 50mm cable port for power-on test.

8, Optional electronic humidity sensor is used on all test chambers for accuracy and minimal maintenance.

Conform following standards:

IEC68-2-1 (GB-2423.1-2008) Testing A: Low temperature testing method

IEC68-2-2 (GB-2423.2-2008) Testing B: High temperature testing method

MIL-STD-202F (GJB360.8-87) High temperature life testing

MIL-STD-810D (GBJ150.3) High temperature method

MIL-STD810D (GBJ150.4) Low temperature method

IEC68-2-3 (GB2423.3-93) Testing Ca: Constant moist heat testing method.

IEC68-2-30 (GB2423.4-93) Testing Db: Alternate moist heat testing method.

MIL-STD-810D (GJB150.9-93) Moist heat testing method

Specifications:

Control Mode	Balanced Temperature and Humidity Control System
Operating Temp. & Humid. Range	+5ºC ~ +35ºC; <85%R.H.
Temp. range	A=0ºC, B=-20ºC, C=-40ºC, D=-70ºC ~ +100ºC(150ºC)
Humid. range	10% ~98%R.H. (Optional: 5%~98%R.H.)
Temp. & Humid. fluctuation	±0.5ºC; ±2.5%R.H.
Temp. & Humid. uniformity	≤2.0ºC; ≤3%R.H.
Temp. & Humid. Deviation	≤1.0ºC; ≤2%R.H.
Temp. Heating Time	0ºC ~ +100ºCwithin 30min; -20ºC ~ +150ºCwithin 45min
Temp. Cooling Time	20ºC ~ -40ºCwithin 60min; 20ºC ~ -70ºCwithin 85min
Power Supply	AC380V, 50/60HZ, Three-phase (Specified by User)
Exterior Material	stainless steel with baking paint
Interior material	SUS304# Stainless steel
Insulation material	Rigid Polyurethane foam
Refrigeration system	Mechanical cascade refrigeration system; Fin type radiator
Circulation system	Mechanical convection system
Humidification Water Supply	Automatic water regulating, recoverable supply system, water shortage alarm system
Water quality	Distilled water only, 20L Water tank capacity
Controller	HL-1000 Touch Screen Controller
Safety devices	Overheat protector Switch, Compressor overload protector Switch water shortage protector Switch, Humidifier protector Switch Fault alarm system
Accessories	Viewing window, Chamber Illumination, Cable port ø50mm, Product shelf slides 2 pieces, universal casters HL-1000 touch screen controller

Note: 1, The performance values are no specimen inside the test area.
2, At 20ºC ambient temperature, relative humidity 65%rh, rated voltage
3, According to IEC60068-3-5:2001 and IEC60068-3-6:2001
4, The above specifications are for reference only.
