Product Specifications
| Prod Model: |
SDC-NDS3712 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Interface: |
1 DVB/ Asi(One for Reserve) |
| Output Interface: |
Two DVB/ Asl |
| Output Bit-Rate: |
1~54mpbs |
| CAS: |
Four Different CAS System Simultaneously |
| Dimension: |
44mmx482mmx360mm |
Product Description
Outline

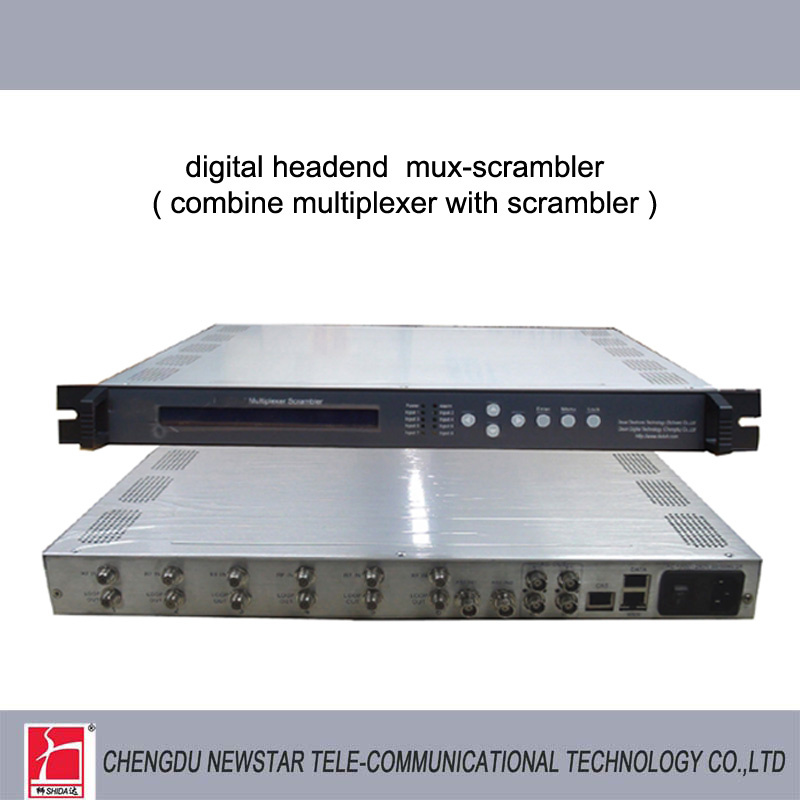

NDS3712 Tuner input (NDS3712A ASI input) multiplexer scrambler is the latest multiplexing and scrambling device for digital TV broadcasting head-end system. The mux-scrambler 2 groups of ASI output and 2 corresponding IP output (share one megabits DATA port, RJ45 interface). In conclusion, its high integration and cost effective design make this device widely used in the Next Generation of CATV Broadcasting system.
Features
Fully comply with ISO13818 and EN300468 standard
Integrated multiplexing and scrambling functions
6 tuner inputs ( tuner can be DVB-S/DVB-S2/DVB-C/ISDB-T)+2 ASI inputs or 8ASI input
Support 2 channels TS re-multiplexing
SPTS and MPTS code stream multiplexing
Supports accurate PCR adjusting
Support PID filtering, re-mapping
Two groups( each group has 2 channels) separate TS output
TS over UDP output as mirrors of ASI outputs(RJ45)
Supports PSI/SI rebuilding, editing
Supports DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
Support 4 different simulcrypt CAS
Supports CAS remote connection scrambling
Supports huge buffer memory and resists unexpected code stream
Supports multiplexing the same program to all the output channels
Alarming function
Supports network remote upgrading
LCD/keyboard and net management, support NMS/SNMP
|
Input interface |
Tuner |
6 tuners (DVB-S/ DVB-C / DVB-S2/ISDB-T optional) |
NDS3712 |
|
ASI |
2 ASI |
|
8ASI |
NDS3712A |
|
Re-multiplex |
2 channels TS re-multiplex |
|
PID re-mapping ( auto/manual optional) |
|
PCR accurate adjusting |
|
Automatically generating PSI/SI table |
|
Input |
Packet format |
204/188 self-adaption |
|
Scrambling |
Simul-crypt CA |
4 |
|
Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
|
Connection |
Local/Remote connect |
|
Output port |
ASI |
2 groups separate outputs (each group has 2 channels) |
|
IP |
TS over UDP output as mirror of ASI output (RJ45) |
|
PID |
Output range |
0x0000_0x1FFF |
|
Amount of output PID per input |
64 |
|
NMS port |
Ethernet port |
10/100M |
|
Miscellaneous |
Demission(LxWxH) |
482mm× 410mm× 44mm |
|
Weight |
4kg |
|
Temperature |
0~45 degree (operation) , -20~80 degree(storage) |
|
Power supply |
AC 110V± 10% , 50/60Hz
Or AC 220V± 10% , 50/60Hz |
|
Consumption |
≈ 18W |
