Product Specifications
Prod Model: |
N075YL-6 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: |
Piston |
Performance: |
Low Noise |
Drive Mode: |
Electric |
Power Source: |
AC Power |
Configuration: |
Stationary |
Material: |
Copper |
Piston Type: |
Closed |
Lubrication Style: |
Lubricated |
Application: |
Low Back Pressure Type |
Mute: |
Not Mute |
Product Description



1. Frequency only for 50HZ
2. Voltage application from 220 to 240V
3. Application in refrigeration equipments.
4. High efficiency
5. Small size
6. Low vibration
7. Good reliability
8. Nominal power is 1/13 HP
9. COP is 1.3 with the cooling capacity 75W
10. RSIR Motor
11. Cooling type Static
12. Low Back Pressure
13. Aluminum compressor
14. Compressor should be stored in a dry and drafty place
15. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
16. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
17. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

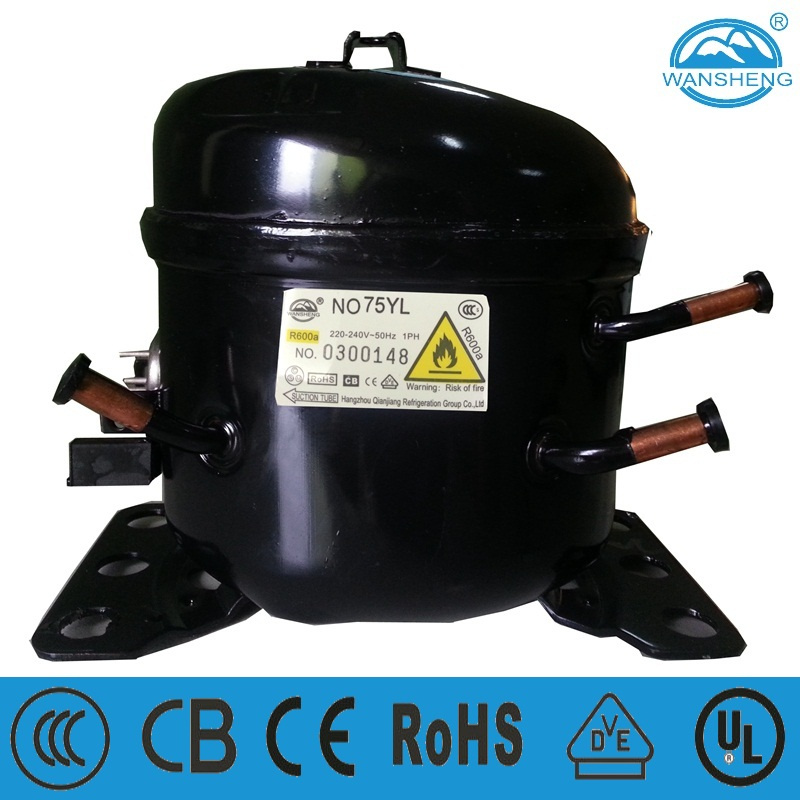

18. Piston refrigeration compressor N075YL
19. N series N075YL compressor use R600a refrigerant
20. Cheap price provided for the compressor N075YL makes the customers better choice
21. Experienced staff ensure produce of the compressors with good quality
22. Starting device is PTC
Wansheng R600a compressors technology parameters | Test Conditions | Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
|
Amb. Temp.: 32.2°C | Suction. Temp.: 32.2°C |
|
Subcooling Temp.: 32.2°C | LBP ASHRAE |
|
Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type |

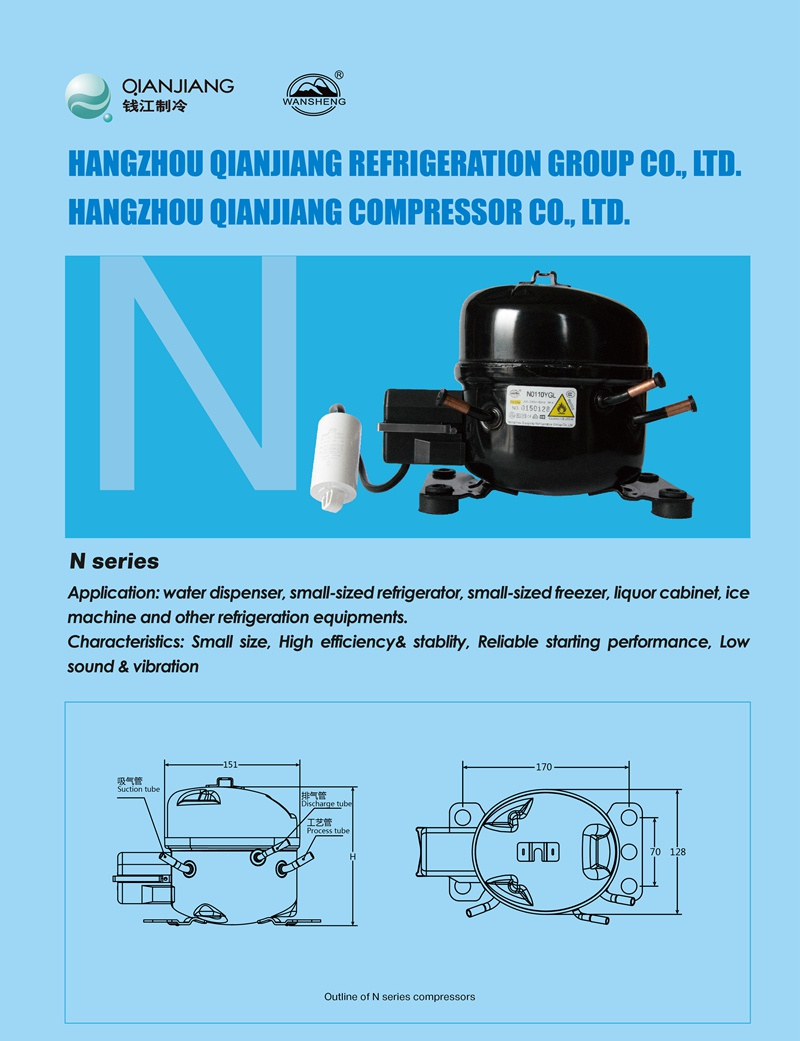

N series |
|
N075YL | 220-240V/50Hz | 4.3 | 75 | 58 | 1/13 | 1.3 | RSIR | / | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
