Product Specifications
| Prod Model: |
Vokes NPP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thermal Conductivity 50oc: |
0.016W/(M.K) |
| Thermal Conductivity 200oc: |
0.020W/(M.K) |
| Thermal Conductivity 400oc: |
0.025W/(M.K) |
| Thermal Conductivity 600oc: |
0.040W/(M.K) |
| Thermal Conductivity 800oc: |
0.060W/(M.K) |
| Thermal Conductivity 1000oc: |
0.073W/(M.K) |
| Cold Crushing Strength (Compression 20%): |
≥0.40MPa |
| Permanent Linear Change(800oc×24h): |
≤1.0% |
| Service Life: |
Extrapolated, Depending on Application up to 50y |
| Apparent Density: |
180~210kg/m³ |
| Usage: |
Interior Tiles |
| Material: |
Fumed Silica |
| Refractoriness: |
1300oc |
| Diameter: |
Thickness 10-50mm |
| Surface Treatment: |
with or Without Aluminum Foil |
| Color: |
White, Grey |
Product Description
CHARACTERISTICS:

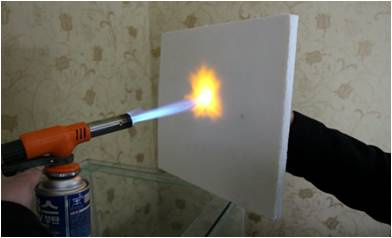

Vokes®NNP is a micro porous thermal insulating panel with excellent insulating properties. The core material of Vokes® NPP is fumed silica which is made by nano technology. Furthermore an infrared opacifier is added to minimize thermal transmission by in heat radiation. It's noncombustible, specializes in the insulation applications where the space is limited but a high thermal resistance is necessary. Long-term application temperature is during -120ºC-1000ºC, the insulation performance is much better than the traditional materials, especially at high temperature.
ADVANTAGES:
? Wide insulation range: Long-term working temperature is at the period of -120ºC-1000ºC.
? Extremely low and stable thermal conductivity: At normal temperature, the insulated performance is at least 3-5 times better than the traditional materials. At temperatures higher than 300ºC, the insulated performance is at least 4-8 times better than the traditional materials.
? Space saving: It drastically reduced insulation thickness.
? Easy installation and maintenance: The small density makes installing safely and easily.
?Corrosion resistant: Products are made of inorganic silicates, it doesn't include soluble chloride ions, won't cause corrosion on equipments, pipes..
? Soundproof/Shockproof: It helps acoustic noise reduction and shock buffer.
? Waterproof: Nano particles of product themselves are super hydrophobic.
? Durable: It has a long working life.
APPLICATIONS:
Vokes®NNP is widely used because of the stable thermal performance. According to diverse situations, Vokes®NNP can be protected with appropriate covers.
-Industrial furnace (rotary kiln, shuttle kiln, steel ladle, tundish, oven door etc. )
-Metallurgical industry (steel, aluminum, smelting furnace, holding furnace, etc.)
-Instrument (temperature tracker, heat receiver, date protection system, etc.)
-Oil and energy (piping, reacting furnace, etc.)
-Refrigeration and freezing
-Automotive (Cars, trains, planes, ships, etc.)
PRODUCT DATA:
Thermal conductivity (Surface temperature:ºC)
50ºC 0.016W/(m·k)
200ºC 0.020W/(m·k)
300ºC 0.023W/(m·k)
400ºC 0.025W/(m·k)
500ºC 0.033W/(m·k)
600ºC 0.040W/(m·k)
700ºC 0.049W/(m·k)
800ºC 0.060W/(m·k)
900ºC 0.064W/(m·k)
1000ºC 0.073W/(m·k)
Standard dimension (L x W)(mm): 1200x600/500x600/250x600
Thickness:10mm/15mm/20mm/25mm/30mm/40mm/50mm
Size tolerance ? 0 to 500 mm: ±2 mm
Thickness tolerance: ± 1 mm
ZHONGHENGNEW MATERIAL SI-TECH Co., Ltd, located in Daming, China, sales office in Beijing, China, has been a leading manufacturer of vacuum insulation and nanoporous insulation in the field of high-performance insulation materials since it's established in 2012. The super insulation products, Nanoporous Insulation Material, were developed by our research department with independent intellectual property rights.
Certification: Our factory has acheived Quality Management System Certification, Environmental Management System Certification, Occupational Health and Safety Management System Certification. Three main products, Vokes® HVIP/Vokes® NPP/Vokes® NPS have certified by CE in 2014.
Vokes® Consists of inorganic silicates, with the main content being fumed silica. It is of great insulation performance, perfect for insulation applications where is finite in space but a high thermal resistance is necessary. Furthermore, it's energy-saving, eco-friendly, recyclable, easy-installation. It's the best solution for insulations.
Applications:
*Building &. Construction(Walls, ceilings, roofs, floors, etc)
*Transportation &. Storage of refrigeration and freezing (freezers, medical thermotank, blood bank, medical kit, refrigerated containers, etc. )
*Industrial applications (Metallurgical, Chemical, Electrical, Mechanical, Pharmaceutical, etc )
*Automotive (trains, ships, air planes, etc. )
*Aerospace and Military
Advantages:
*Extremely low and stable thermal conductivity and wide insulation range.
*Space saving: It drastically reduced insulation thickness so that usable volume is maximum increased...
*Easy installation and maintenance.
*Corrosion resistant/Soundproof/Shockproof/Waterproof.
* Durable: Long working life is up to 50 years.
