Product Specifications
| Prod Model: |
Vokes NPP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thermal Conductivity 50oc: |
0.016W/(M.K) |
| Thermal Conductivity 200oc: |
0.020W/(M.K) |
| Thermal Conductivity 400oc: |
0.025W/(M.K) |
| Thermal Conductivity 600oc: |
0.040W/(M.K) |
| Cold Crushing Strength (Compression 20%): |
≥0.40MPa |
| Permanent Linear Change(800oc×24h): |
≤1.0% |
| Service Life: |
Extrapolated, Depending on Application up to 50y |
| Apparent Density: |
180~210kg/m³ |
| Material: |
Fumed Silica |
| Refractoriness: |
800oc |
| Diameter: |
Thickness 3-10mm |
| Surface Treatment: |
Without Skin |
| Usage: |
Interior and Exterior |
| Color: |
White, Grey |
Product Description
Characteristics:

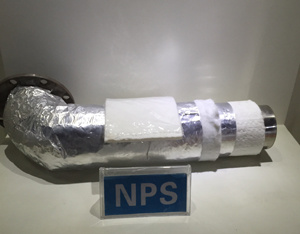

Vokes® NPS, flexible flat insulated felt which is made of fumed silica by nano technology. It is of small density, high compressive strength, waterproof, and many other superior performance, widely used in all kinds of industrial piping, tanks, and various vessels in regular/irregular shapes.
Advantages:
Wide insulation range: Long-term working temperature is at the period of -120ºC-650ºC.
Extremely low and stable thermal conductivity: At normal temperature, the insulated performance is at least 3-5 times better than the traditional materials. At temperatures higher than 300ºC, the insulated performance is at least 4-8 times better than the traditional materials.
Flexible: It's good for wrapping pipes and equipments.
Space saving: It drastically reduced insulation thickness.
Easy installation and maintenance: The small density makes installing safely and easily.
Corrosion resistant: Products are made of inorganic silicates, it doesn't include soluble chloride ions, won't cause corrosion on equipments, pipes.
Soundproof/Shockproof: It helps acoustic noise reduction and shock buffer.
Waterproof: Nano particles of product themselves are super hydrophobic.
Durable: It has a long working life.
Applications:
Metallurgical and Mechanical Industry
Oil and Energy (piping, boiler, etc.)
Glass furnace
Aerospace and Military.
Product Data:
Thermal conductivity (Surface temperature:ºC)
50ºC 0.016W/(m·k)
200ºC 0.020W/(m·k)
300ºC 0.023W/(m·k)
400ºC 0.025W/(m·k)
500ºC 0.033W/(m·k)
600ºC 0.040W/(m·k)
Standard dimension (L x W)(mm): 1200x600/400x600
Thickness:3mm/6mm/10mm
Size tolerance 0 to 500 mm: ±2 mm
Thickness tolerance: ± 1 mm
ZHONGHENGNEW MATERIAL SI-TECH Co., Ltd, located in Daming, China, sales office in Beijing, China, has been a leading manufacturer of vacuum insulation and nanoporous insulation in the field of high-performance insulation materials since it's established in 2012. The super insulation products, Nanoporous Insulation Material, were developed by our research department with independent intellectual property rights.
Certification: Our factory has acheived Quality Management System Certification, Environmental Management System Certification, Occupational Health and Safety Management System Certification. Three main products, Vokes® HVIP/Vokes® NPP/Vokes® NPS have certified by CE in 2014.
Vokes® Consists of inorganic silicates, with the main content being fumed silica. It is of great insulation performance, perfect for insulation applications where is finite in space but a high thermal resistance is necessary. Furthermore, it's energy-saving, eco-friendly, recyclable, easy-installation. It's the best solution for insulations.
Applications:
*Building &. Construction(Walls, ceilings, roofs, floors, etc)
*Transportation &. Storage of refrigeration and freezing (freezers, medical thermotank, blood bank, medical kit, refrigerated containers, etc. )
*Industrial applications (Metallurgical, Chemical, Electrical, Mechanical, Pharmaceutical, etc )
*Automotive (trains, ships, air planes, etc. )
*Aerospace and Military
Advantages:
*Extremely low and stable thermal conductivity and wide insulation range.
*Space saving: It drastically reduced insulation thickness so that usable volume is maximum increased...
*Easy installation and maintenance.
*Corrosion resistant/Soundproof/Shockproof/Waterproof.
* Durable: Long working life is up to 50 years.
