Product Specifications
| Prod Model: |
42 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| NEMA17: |
42mm |
| 1.8degree: |
2phase |
| Type: |
Linear |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Brand: |
Bohong |
| Operate Mode: |
The Single Step |
| Certification: |
CE,RoHS |
Product Description
Item Specifications:

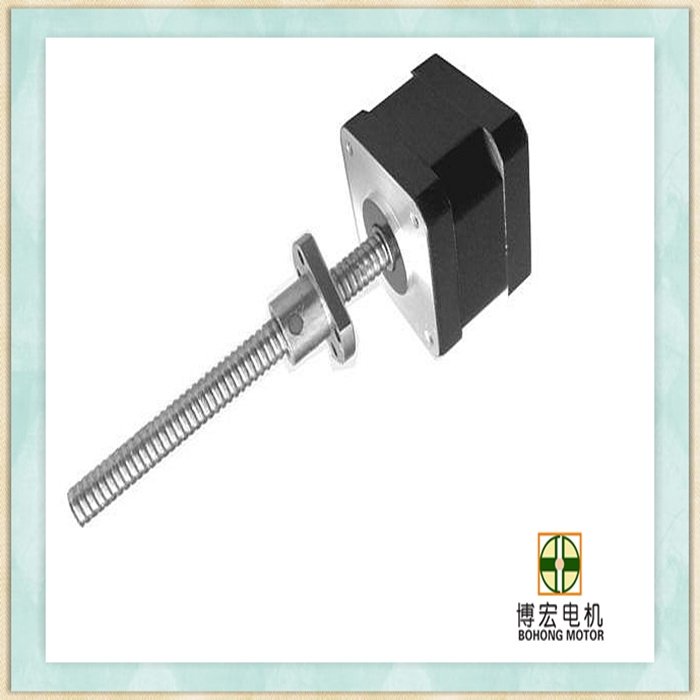

Nema 17 stepping motor, 42mm linear stepper motor
Motor with a precision Acme threaded rod for a shaft
Lead Screw Tr8x8(P2)
200 steps per revolution (1.8 deg/step)
2 Phase
Rated Voltage 2.52v
Rated Current (peak value when microstep 1.7A
Coil Resistance/phase: 1.5 Ohm ± 10% (20º C)
Coil Inductance/phase: 2.3mH ± 20% (1kHz 1 V rms)
Shaft diameter: 5mm / 0.188" (3/16")
Shaft length: 210 mm with 5mm unthreaded cap
Lead Screw Tr8x8(P2)
|
Model No. |
Voltage(V) |
Current(A) |
Resistance(Ω) |
Inductance(mH) |
Lead Wire No. |
Motor Length(mm) |
|
BH42HBS1735-01 |
7.2 |
0.5 |
14.4 |
19.8 |
4 |
35 |
|
BH42HBS1735-02 |
3.6 |
1.0 |
3.6 |
5.0 |
4 |
35 |
|
BH42HBS1735-03 |
2.4 |
1.5 |
1.6 |
2.2 |
4 |
35 |
|
BH42HBS1749-01 |
11.0 |
0.5 |
22 |
46 |
4 |
49 |
|
BH42HBS1749-02 |
4.5 |
1.2 |
3.8 |
8.0 |
4 |
49 |
|
BH42HBS1749-03 |
2.2 |
2.5 |
0.87 |
1.8 |
4 |
49 |
