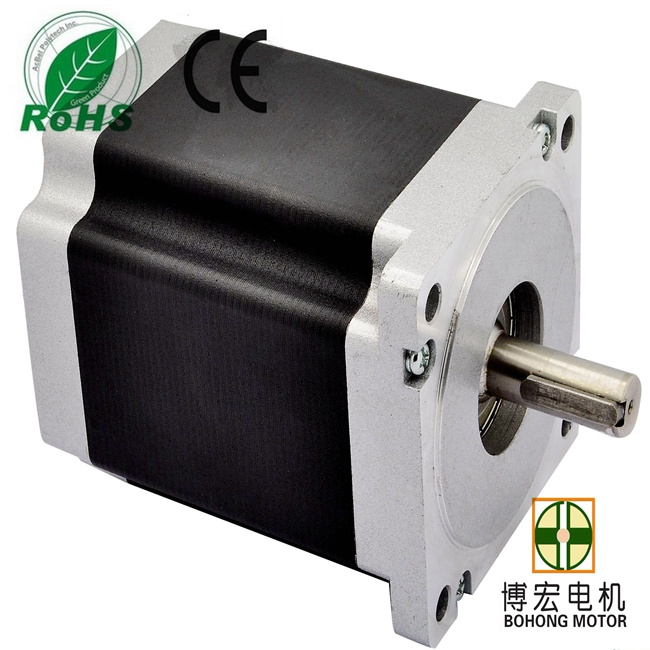

Item Specifications:
Step Angle 1.8.
Step Angle Accuracy ± 5% (full step, no load)
Resistance Accuracy ± 10%
Inductance Accuracy ± 20%
Temperature Rise 80. C Max. (rated current, 2 phase on)
Ambient Temperature -20. C~+50. C
Insulation Resistance 100MΩ Min., 500VDC
Dielectric Strength 1800VAC, 1s, 5mA
Shaft Radial Play 0.02Max. (450 g-load)
Shaft Axial Play 0.08Max. (450 g-load)
Max. Radial force 220N (20mm from the flange)
Max. Axial force 60N
| Model | Step
angel
( °) | Motor Length
L(mm) | Rated
Voltage
(V) | Rated Current
(A) | Phase Resistance
(Ω) | Phase Inductance
(mH) | Holding
Torque
(N.m) | Lead
Wire
(NO.) | Rotor
Inertia
(Kg. m ) | Motor
Weight
(kg) |
| 110HB99-5504-01 | 1.8 | 99 | 3.3 | 5.5 | 0.6 | 8 | 8 | 4 | 5.5 | 5 |
| 110HB150-6004-01 | 1.8 | 150 | 5.4 | 6 | 0.9 | 17 | 21 | 6 | 10.9 | 8.4 |
| 110HB201-6004-01 | 1.8 | 201 | 5.4 | 6 | 0.9 | 21 | 28 | 8 | 16.2 | 11.7 |
