Product Specifications
| Prod Model: |
NEMA56 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: 208/230V/460V: |
Rated Frequency: 60Hz |
| Farm Duty Motor: |
Compressor Motor |
| Pump Motor: |
Tefc Motor |
| IP55 IP22 Motor: |
Rigid Base Motor |
| Heavy Duty Motor: |
General Use Motor |
| Weg Motor: |
ABB Motor |
| Siemens Motor: |
2HP 3HP 5HP 7.5HP 20HP 15HP Motor |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Certification: |
CE |
| Brand: |
Xiaolaoda, Kapteeni Motor |
Product Description

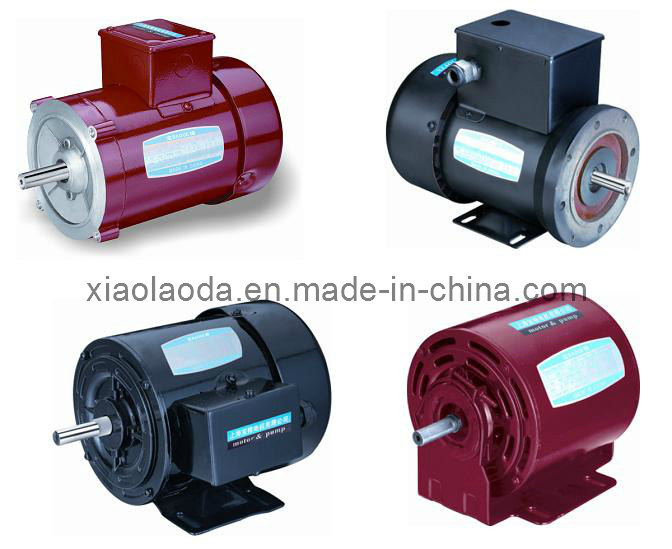

NEMA standard asynchronous electric motor
NEMA standard high efficiency motors are totally enclosed fan cooled machine(IP54). This series motors are designed and manufactured in accordance with NEMA standard of U. S. A and C390-93 standard of Canada. These motors are of a novel style and of excellent workmanship. The motors are characterized as reliability safety, minimal temperaure rise, high efficiency, low noise. Low vibration. High starting torque, etc. The motors adopt design Band class F insulation, Their service factor is 1.15.
They are rated 208-230/460V, 460V or 575V and 60Hz. Exposure to an ambient temperature in the range of -15 temperature to 40 temperature, arid to an altitude which dose not exceed 3300 nfeet. They are ideal for application with no special requirement, They can be used to drive various kinds of mechanical equipment. This series motors can be specially manufactured on request, such as T, TC, TD or H insulation class, different voltage, different frequency, etc.
TERMINAL BOX
There are 3, 6, 9 and 12 outleads in the terminal box.
The follow diagrams indicate the ways of connection. The length of leads 6 inches measured from Frame surface. Terminal marking and connections should accord with MG 1-2.62. There is grounding screw with grounding marking in the terminal box.
Terminal markings for Y and Delta connected Dual-voltage and Single-voltage motors.
Zhejiang Huaming Electric Motor Co., Ltd founded in 1985 year, is located in Wenling city. Closes to 104 National Road, 15 minutes' driving to the Wenling Railway Station, high-speed road junctions and 30 minutes' driving to Huangyan airport, Only 3 hours'way to Ningbo Port.
The company is an enterprise covering design, production and sales, produce "XIAOLAODA" brand products, there are EU IEC standard three-phase electric motors Y, Y2, YD, YVF, YB2, YS series, single-phase motors YC, YL, YY series, and the USA NEMA standard single & three-phase motors, also many derived motors (meat machines motor, fruit juicer motors, food processing motors, etc ). Also we product submersibel pumps as QY, QX, WQD, IRG four series. We achieved a "national industrial product production license", "export product quality permit" and the products certificates, such as CCC, ISO9001, CE, TUV, and we can apply UL certificate for clients.
Our products are very popular in China, we have Right to Import and Export, we also widely export to Europe, Australia, and America market.
Any interests or doubts, Please Kindly contact us, the good cooperation come from this moment.
