Product Specifications
| Prod Model: |
FCT-1318W |
| Markets: |
North America,South America,Southeast Asia |
| Type: |
Engraving Router |
| Controlling Mode: |
CNC |
| Feed Mode: |
Mechanical |
| Spindle Number: |
Single-Spindle |
| Spindle Layout: |
Horizontal |
| Certification: |
CE, ISO |
| Color: |
Iron Grey |
| Condition: |
New |
| Customized: |
Customized |

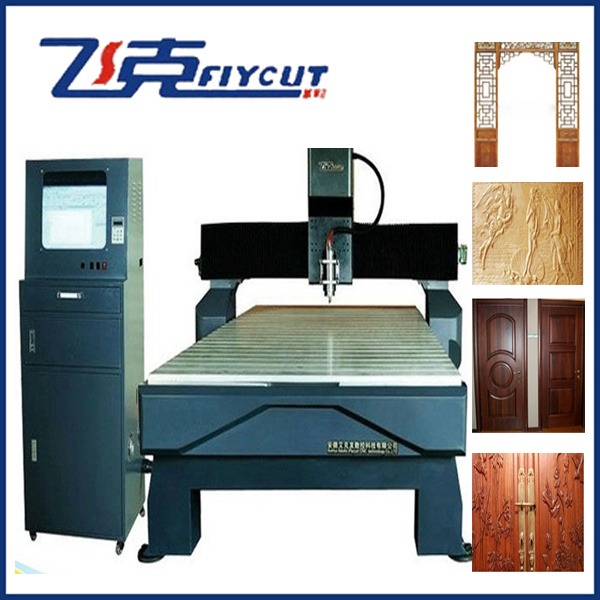

Product Description
Features:
1. The lathe is founded by industrial pipe welding, box-type structure to ensure the high stability.
2. The special instruments to eliminate welding stress, high-precision machining planer ensure the precision and no deformation.
3. The major machine body makes the stability and no shacking in high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific structure and generous appearance.
6. XYZ axis use anti-dust system, prevent dust during working, make sure the long lifespan of spare parts.
7. High quality driver motor, spindle motor, cables, inverters, etc.
8. Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.
Application:
Widely used in Antique furniture with relief carving, wood carving, furniture-processing, instrument making, 3D light box making, Aluminum composite panel, funding mound decorative doors and windows processing etc.
Special configuration:
It can be customized more large format and special format models, and it can be optional standard configuration spindle or importing, auto-change tool system, oil lubrication system, vacuum inhaling and dust collect etc.
Machine size can be customized as 1500*3000/2000*2000/2500*25000/2000*3000mm.
Technical Parameters:
| Model | FCT-1318W |
| Machine Size | 1600×2000mm |
| Working Size | 1300×1800×200mm |
| Spindle Power | Water cooling 2200W |
| Spindle rotation | 6000--24000rpm |
| Motor driver | Stepper motor driver (China servo motor and Japan servo motor is optional) |
| Tool diameter | 3.175,4,6,12.7mm |
| Machine structure | Industry square tube structure |
| Transmission | The ballscrew or high accuracy gear rack |
| XYZ rails | PMI square rails |
| Dust-proof system | XYZ high quality dust cover |
| Machine accuracy | <0.03/300mm |
| Engraving speed | 8000mm/min |
| Data transmission | PC-connection directly |
| Support format | G code or HPGL |
| Working voltage | AC220V/50Hz or 380V/50Hz |
| Net weight | 900kg |
If you are not sure which machine you should choose,kindly afford the following information.Suitable machine will be recommended to you.
1) what materials do you want to engrave or cut?
2) what's the max. size of the materials (Length*Width*Thickness)?
