Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
SGS, CE, ISO9001 |
| Warranty: |
One Year |
| After Sale Service: |
for Whole Using Life |
| Installation: |
Engineer Guide and Train Workers |
| Diameter Of Dryer: |
1.2m |
| Long Of Cylinder: |
10m |

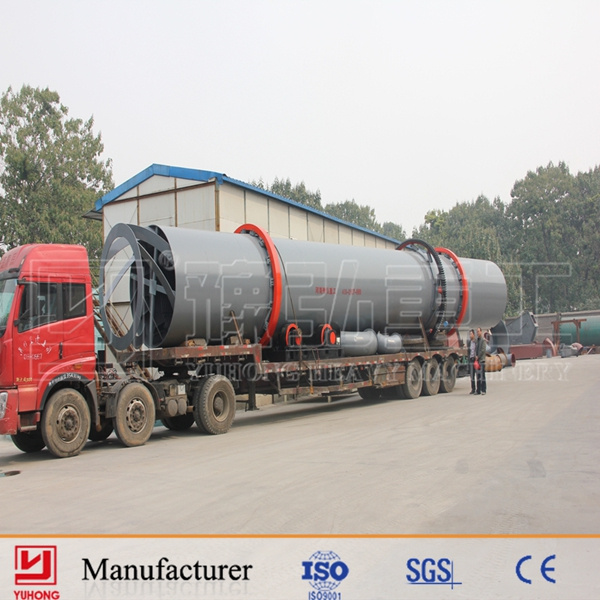

| Shipment: |
by Sea or Land |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Atmospheric Dryer |
| Movement Way: |
Fixed |
| Heating Mode: |
Transmission |
Product Description
Micro powder dryer is the special equipment that our company developed for the ultra-fine powder series of materials. It has advantages of environmental protection, energy saving, low consumption. Yuhong Micro powder drying production line is used in large related industry base test successfully and enjoyed good reputation.
1. Principles of Micropowder drying machines:
Wet and dry material from the belt conveyor or bucket elevator sent hopper, then through feeder hopper into the feeding side through the feeding pipe. Feeding tube inclination angle is greater than the natural materials in order to smooth flow of material within the drying machine.
Wet material in the drying machine to move forward the process, directly or indirectly to the body containing the hot heat, so that the wet material to dry, then the material side by the belt conveyor or screw conveyor sent. In the tube wall with the body copy board, its role is to bring up another copy of materials cast, so the materials and the contact surface increases airflow to improve the drying rate and to promote material progress.
Heat carrier are generally divided into hot air, flue gas and so on. Heat carrier by the drying machine was a general need within the gas cyclone brought down trapping materials. For further reduction of exhaust gas dust content, but also through the bag filter or wet dust emissions after the release.
2. Special characteristics of Micropowder drying machine:
1). Can be dried up to 80% moisture content of materials, dry powder fineness, the product moisture content low as 0.1%
2). TAIDA powder special drying equipment drying using continuous and improve productivity.
3). Effectively reduce the micro-dust consumption, reduce material waste and loss.
4). The effective cost savings, compared with the conventional powder drying equipment, cost nearly 30%.
5). Process short, high thermal efficiency, low energy consumption, small size, configuration is simple, convenient control, good operating environment.
6). Efficient dust removal, effective solution to the problem of dust pollution.
Model
( mm )
|
Gradient
( % )
|
Rotation Speed
( r/min )
|
Feed-in Gas Temperature
( ºC )
|
Power
( kw )
|
Output
( t/h )
|
Weight
( t )
|
Φ600x6000
|
3-5
|
3-8
|
≤700
|
3
|
0.5-1.5
|
2.9
|
Φ800x8000
|
3-5
|
3-8
|
≤700
|
4
|
0.8-2.0
|
3.5
|
Φ800x10000
|
3-5
|
3-8
|
≤700
|
4
|
0.8-2.5
|
4.5
|
Φ1000x10000
|
3-5
|
3-8
|
≤700
|
5.5
|
1.0-3.5
|
5.6
|
Φ1200x10000
|
3-5
|
3-8
|
≤700
|
7.5
|
1.8-5
|
14.5
|
Φ1200x12000
|
3-5
|
3-8
|
≤700
|
11
|
2-6
|
14.8
|
Φ1500x12000
|
3-5
|
2-6
|
≤800
|
15
|
3.5-9
|
17.8
|
Φ1800x12000
|
3-5
|
2-6
|
≤800
|
18
|
5-12
|
25
|
Φ2200x12000
|
3-5
|
1.5-6
|
≤800
|
18.5
|
6-15
|
33
|
Φ2200x18000
|
3-5
|
1.5-6
|
≤800
|
22
|
10-18
|
53.8
|
Φ2200x20000
|
3-5
|
1.5-6
|
≤800
|
30
|
12-20
|
56
|
Φ2400x20000
|
3-5
|
1.5-5
|
≤800
|
37
|
18-30
|
60
|
Φ3000x20000
|
3-5
|
1.5-5
|
≤800
|
55
|
25-35
|
78
|
Φ3000x25000
|
3-5
|
1.5-5
|
≤800
|
75
|
32-40
|
104.9
|
