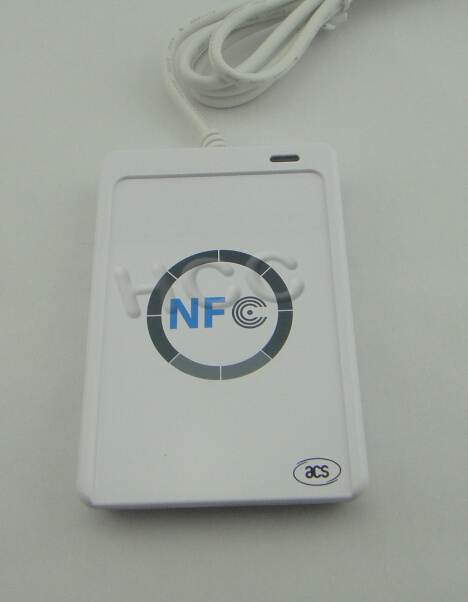

Nfc Contactless Smart Promation Card Reader--ACR122u
Product Specifications
| Prod Model: |
ACR122U |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
98 Mm (L) X 65 Mm (W) X 12.8 Mm (H) |
| Weight: |
70 Grams |
| Supply Voltage: |
Regulated 5V DC |
| Operating Distance: |
<= 50mm |
| Supply Current: |
200mA (Operating); 50mA (Standby); 100mA (Normal) |
| Standards/Certifications: |
ISO14443 1-4, CE, FCC, RoHS Compliant |
| 10.5 Kg: |
USB Full Speed |
| Interface: |
USB |
| Type: |
Smart Card Reader |
Product Description
NFC Contactless Smart Promation Card Reader--ACR122U
- The World's First NFC Card Reader compliant to CCID Standard
General
- ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and followed the ISO/IEC18092 Standard for Near Field Communication (NFC), supporting not only Mifare® ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.
- The ACR122U is a USB Plug and Play device with CCID compliance. By making use of up to 424 Kbps for NFC Tag access and full USB speed of up to 12 Mbps, the ACR122U can read and write faster and more efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use. Operating distance can be extended on request by adding an RF boaster, so the ACR122U is suitable for logistics and supply chain management.
- In order to increase the security level, the ACR122U can be optionally integrated with an ISO7816-3 SAM slot. In addition, the ACR122U is available in module form for easy integration into bigger machines, like POS terminals, physical access devices and vending machines.
- With excellent performance and flexibility, you can experience the convenience and benefits offered by the ACR122U.
Feature
- USB Full Speed (12 Mbps)
- USB PnP
- Bi-Color LED
- Built-in Antenna
- NFC Reader
- ISO/IEC18092 (NFC) compliant
- NFC Tags Access Speed = 424 kbps
- Contactless Smart Card Reader
- Support FeliCa card
- Support ISO 14443 Type A & B cards
- MIFARE® cards (Classics, DES Fire)
- CCID Standard
- CE and FCC Certificated
- RoHS Compliant
- User Controllable Buzzer (optional)
- SAM Socket (optional)
Application- Home Banking and Home Shopping
- E-commerce
- Checking the balance of electronic purses
- Network access control
- Customer Loyalty Program
- Identification and Authentication
- Ticketing
- Online gaming
- Parking and toll collection
- Automatic Fare Collection
- Public Transportation Terminals
- Physical Access Control
- Time attendance
- Vending machines
- Contactless public phones
- Logistics and supply chain management
Dimensions |
98 mm (L) x 65 mm (W) x 12.8 mm (H) |
Weight |
70 grams |
Interface |
USB Full Speed |
Operating Distance |
<= 50mm |
Supply Voltage |
Regulated 5V DC |
Supply Current |
200mA (operating); 50mA (standby); 100mA (normal) |
Operating Temperature |
0-50°C |
Operating Frequency |
13.56 MHz |
Standards/Certifications |
ISO14443 1-4, CE, FCC, RoHS Compliant |
Operating System Support |
Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 64, Android 3.1 and above
|
