Product Specifications
| Prod Model: |
A+E 80FB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Ultrasonic Flow Meter |
| Sensor Temperature: |
-40 to 160 C (32 to 320 F) |
| Repeatability: |
0.2% |
| Battery Operation: |
15 Hours (1900mAh Ni-MH Battery) |
| Internal Data Logger: |
Min. 2GB SD Card |
| Output: |
RS485 |
| Display: |
2 Lines Characters LCD Screen |
| Units: |
Gallon, Cubic Feet, Cubic Meter, etc. |
| Amb. Temp: |
-20 to +75 C ( -4 to +167f) |
| Pipe Size: |
15~100mm, 50~700mm, 300~6000mm |
| Type: |
Ultrasonic Flow Meter |
| Measuring Principle: |
Acoustics |
| Measuring Media: |
Liquid |
| Accuracy: |
>?à1% |
| Main Application: |
Sea Water, Alcohol |
| Sensor: |
Clamp-on/External |
| Application: |
Industrial, Energy, Environmental |
| Size: |
Dn15-6000 (1/2" to 236") |
Product Description
Non-invasive Handheld Ultrasonic Flow Meter (A+E 80FB)

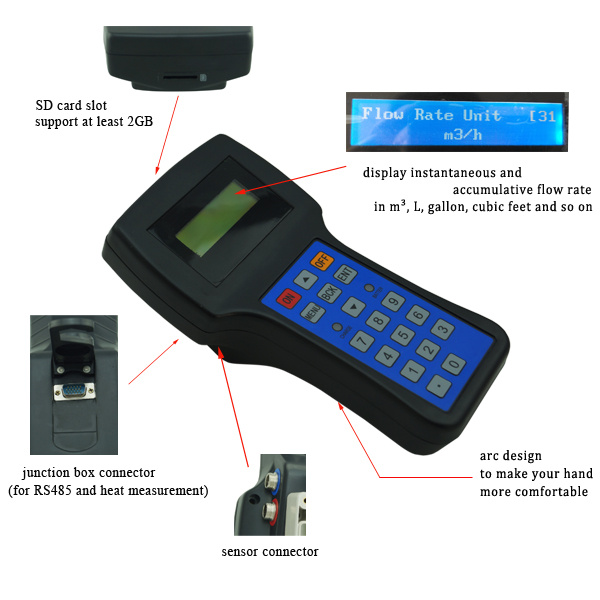

With a weight of about 600g, the 80FB is a very light ultrasonic flow meter which can be carried in one hand. This makes it an ideal instrument for the use in confined spaces. The device applies transmit-time measurement technology. This enables the meter to provide highly accurate and reliable data for almost any kind of liquid regardless of its electric conductivity.
The 80FB is a battery operated ultrasonic flow meter employing clamp-on sensors for the measurement of liquids in full, enclosed pipes. Flow measurements can be undertaken without interruption of the process or interference with the integrity of the pipeline. The clamp-on sensors are attached to the outside of the pipes.
In combination with a data logger, the ultrasonic flow meter enables the user to download and visualize the data on a computer after the measurement or in real-time using the embedded terminal function. The data can be transferred via RS485 or USB.
Specifications
Flow Element
Principle: ultrasonic flow meter
Power requirements: Built-in 24V Ni-MH battery provides 15 hrs of continuous operation, Charging: 220V AC 56/60 Hz
Inputs/Outputs: 4-20mA, RS232 / RS485, Heat Flow
Dispaly: 4 line characters display instantaneous and accumulative flow, velocity and signal status
Units: User configured
Ambient conditions: -20 °C to +75 °C ( -4 to +167°F), 0 to 85% relative humidity
Size: 220*120*92mm (8-2/3"*4-3/4"*3-1/2"), 600g
Flow rate: 0-10m/s (0-33"ft/s)
Accuracy (at calibrated conditions): Flow: ± 1% reading, Heat: ± 2%
Repeatability: 0.2%
Protection: IP65
Internal data logger: approx. 30.000 samples (128kb)
Transducer
Technical parameters | Standard S1 | Standard M1 | Standard L1 | S1H | M1H | HS bracket | HM bracket |
Applicable pipe (mm) | 15~100 | 50~700 | 300~6000 | 15~100 | 50~700 | 15~100 | 50~700 |
Material | Aluminum alloy | PES (Polyether Sulfone) |
Working frequency | 1 MHZ |
Installation method | V (N,W) | V,Z | Z method | V (N,W) | V,Z | V (N,W) | V,Z |
Calibration | Pairing & Calibrating for the complete machine |
Magnetism | Yes | N/A | Yes |
Applicable temperature | -40~90 °C | -40ºC~160 °C |
Protection | IP68 |
Media type | Water, seawater, sewage, alcohol, various oils and other single, uniform and stable liquid that can transmit ultrasonic wave |
Medium turbidity | <20000ppm with low bubble content |
Applicable pipes | Uniform and compact pipes made of carbon steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastics, and lining is permitted. |
Pipe lining material | Epoxy asphalt, rubber, mortar, polypropylene, polystyrene, bakelite, polytetrafluoroethylene etc. |
Signal cable | Standard configuration: 5mX2, and 10mX2 or 15mX2 are optional. |
Typical Applications
--pump testing and inspection
--inline flowmeter performance verification
--leakage and blockage detection
--flow surveys
--cooling and heating fluid measurements
--deluge and extinguisher system testing
--demineralised water measurement
--clean room applications
Warranty
All AEAD manufactured ultrasonic flow meters are guaranteed for 12 months since delivery.
Package

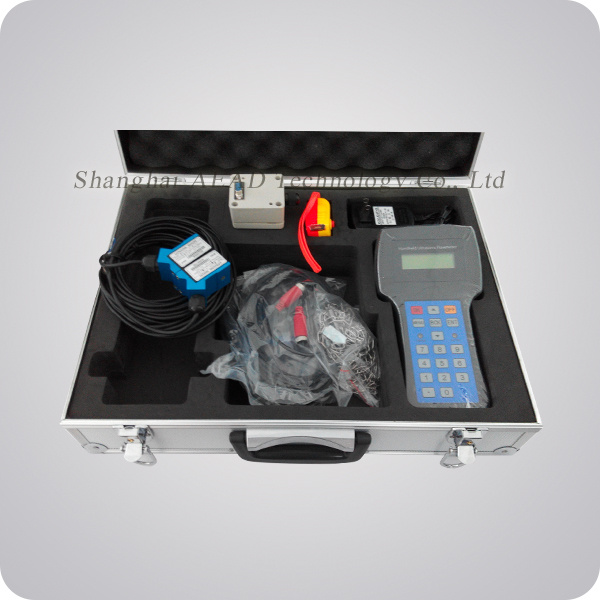

Ultrasonic flow meter package: aluminum case in carton, size 51*41*18cm, gross weight 5.8kg.
