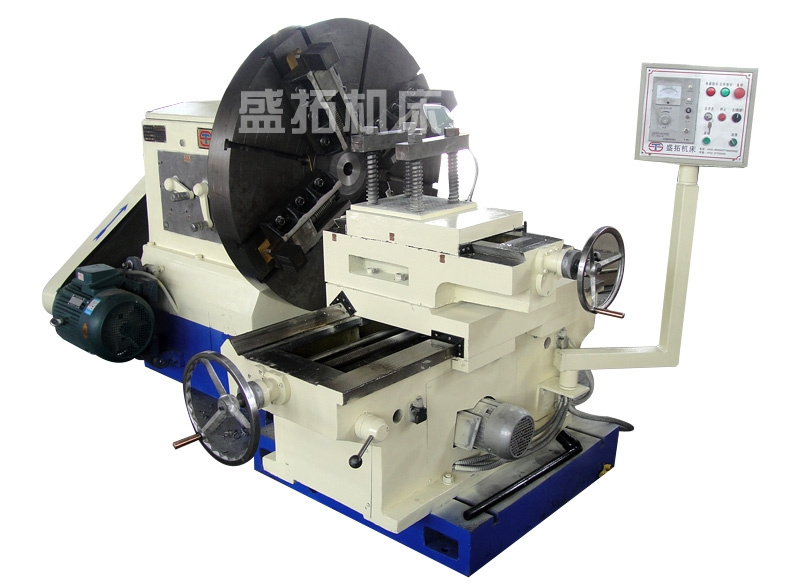

Normal Lathe Swing Diameter 23.2m Machine Tool (C6022)

Name: Normal Lathe Swing Diameter 23.2m Machine Tool (C6022)
Brand: China-Manufacturer-Directory.com
SKU: 701891412
Availability: InStock
Rating: 4.6 (64 reviews)

Supplier:	Qingdao Shengtuo Jichuang Co., Ltd.
Price:	US $ 24000-25000set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ST-C6022
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Swing Diameter:	1600mm
Max. Length Of Processing:	400mm
Max. Weight Of Machining:	3000kg
Stype:	Floor Lathe
Type:	Floor Lathe
Processing Accessory:	Chuck CNC Lathe
Tool Holder:	Single-tool Holder CNC Lathe
Power Source:	Electric
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Setting Mode:	Floor-type
Precision:	Precision

Product Description

It is widely applied to many industries,such as rubber machinery, textile machinery,chemical machinery, automobile manufacturing ,tire mould machinery and so on. It is mostly used to process various flanges, valves, pressure vessels, boilers,tire moulds,plastic moulds, boilers and other workpieces.

Specifications:

Item	ST-C6022	Unit
Item	ST-C6022	Unit
Type of machine	Facing Lathe
Max. swing diameter of workpiece	2200	mm
The cross-feed travel of slide carriage	1000	mm
The longitude-feed travel of slide carriage	400	mm
Max. length of workpiece	700	mm
Max. weight of workpiece	4000	kg
Chuck diameter	1600	mm
The quantity of the steel jaws	4	set
Number of spindle speeds	6	level
Spindle diameter	190	mm
Spindle bore	50	mm
Cutter bar section size	50×50	mm
Spindle speed range	21~216	r/min
Power of main motor	11	KW
Power of feed motor	1.1	KW
Adjusting mode of feed motor	stepless
Machine power supply	380v,50HZ,3P
Lathe weight	about 7	t
Standard configuration:1 headstock, 1piece of 4-jaw(500 mm-long per jaw) chuck Φ 1600mm, 1 piece of chuck wrench, 1 bed(1.56m-long), 1 base, 1 main motor(11kw), 1 feed motor.
Optional configuration: Extended bed and floor,chuckΦ1400mm,1600mm,1800mm and 2000mm.500mm-long jaws.
Specific Notice: Customers can customize the lathes according to their workpieces.

Qingdao Shengtuo Machine Tool Co., Ltd have 20s manufacture, install and processing experences. It is a senior and professional manufacturer and exporter of large-diameter surfacing lathes of ST-C series with a leading status in machinery industry in China. At present, our products mainly include heavy duty face lathe machines, horizontal lathe machines, CNC lathe machines, vertical lathe machines, roll/rotor turning lathe and so on.

With the advantages in high technical content, rational structure, strong rigidity, superior performance and energy-efficient, the machine tools produced by our company has been sold well at home and abroad, especially exported to UK, Southeast Asia, India, North America, South America and Middle East. And we enjoy a high reputation from customers.

These machine tools are widely applied to many industries, such as rubber machinery, tire mould machinery, mine machinery, wheel mould machinery, automobile manufacture, aviation, shipbuilding, textile machinery, chemical machinery and so on. They are mostly suitable for cutting and processing various flanges, roller, pressure vessels, tire moulds, plastic moulds, big drums, bearings, shafts, boilers and other workpieces.

Our markets and clients more and more per year, so our performance is growing year by year.

We always uphold the principle "Honesty foremost, Quality fisrt". After years of efforts, we successfully passed the ISO9001 quality system certification and CE certification. And we have than 10 national patent products, and achieved many certificates of honor: High-tech enterprises in Shandong Province, China 3.15 Consumer Satisfaction Unit, AAA grade credit unit, Contract keeping and Credit First Company.

We`ll always continually provide high quality machine tools and services to repay the society.
