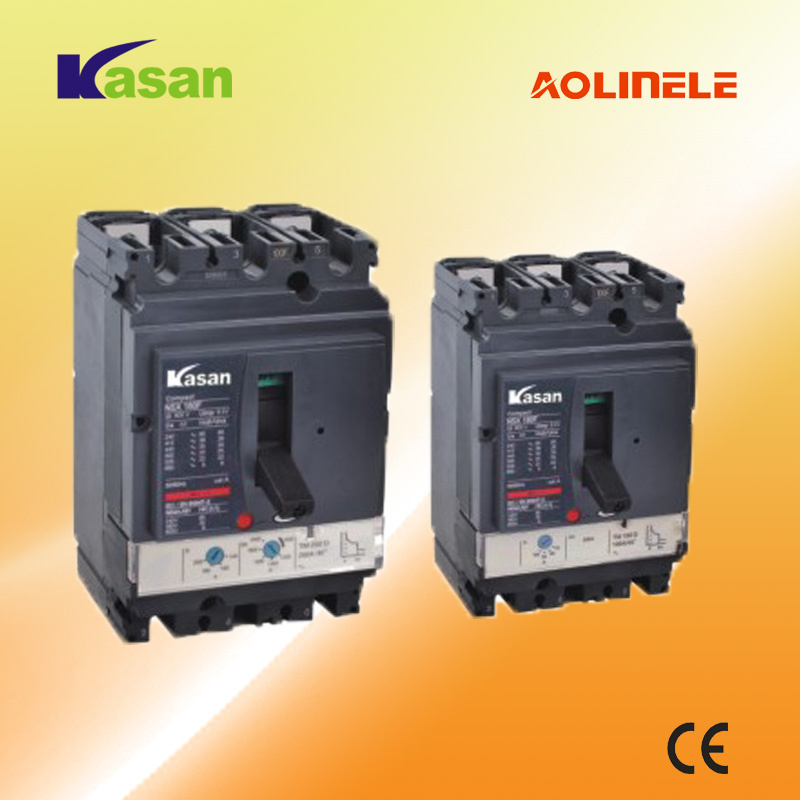

Nse, Nsx, Nsc, Nsd Moulded Case Circuit Breaker (MCCB)
Product Specifications
| Prod Model: |
NSX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Certification: |
CCC |
Product Description
NSE, NSX, NSC, NSD moulded case circuit breaker,
NS MCCB adopt MERLIN GERIN technic
NS series moulded case circuit breaker/MCCB is one of the most advanced type breakers in the world, which adopt international advanced design and manufacture fechnology. They are suitable for short circuit and overload protection for circuit of AC 690V 50/60Hz, rated current from 12.5A to 630A. It takes protect effect when mouse cage motors non-frequent start, breaking off working and protecting overload, short circuit and lacking voltage.
Tripping Characteristics of MCCB
Rated Current of Release(A) Thermodynamic Release (ambient temp +40C) Operational Current of Magnetic Release(A)
1.05In(cold state) inoperative time(h) 1.30In(heat state) operative time(h)
In≤ 63 ≥ 1 <1 10In+20%
63 ≥ 2 <2 10In +20%
100 ≥ 2 <2 5-10In+20%
Rated Current of Release(A) Thermodynamic Release (ambient temp +40C) Operational Current of
Magnetic
Release(A)
1.0In(cold state)operative time(h) 1.20In(heat state)operative time(h) 1.50In(heat state)operative time(h) 1.01In(heat state)operative time(h)
12.5≤ In≤ 400 ≥ 2 <2 ≤ 4min S 12In+20%
|
Rated current of release(A) |
Thermodynamic release(ambient temp+40 ) |
Operation current of magnetic release(A) |
1.05ln(cold state)
inoperative time(h) |
1.30ln(heat state)
inoperative time(h) |
|
ln 63 |
1 |
1 |
10ln 20% |
|
63 ln 100 |
2 |
2 |
10ln 20% |
|
100 ln 630 |
2 |
2 |
5-10ln 20% |
|
Rated current of release(A) |
Thermodynamic release(ambient temp+40 ) |
Operation current of magnetic release(A) |
1.0ln(cold state)
inoperative time(h) |
1.20ln(heat state)
inoperative time(h) |
1.50ln(heat state)
inoperative time(h) |
1.0ln(heat state)
inoperative time(h) |
|
12.5 ln 400 |
2 |
2 |
4min |
2S Tp 10S |
12ln 20% |
Specifications:
|
Type |
Rated current(A) |
Pole No. |
Rated insulating voltage (V) |
Rated operating voltage |
Arcing over distance (mm) |
Ultimate short circuit breaking capacity(kA) |
Services short circuit breaking capacity(kA) |
Operation performance (Endurance) |
|
ON |
OFF |
|
NS-100D |
12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100 |
3
4 |
950 |
690 |
0 |
18 |
18 |
1500 |
8500 |
|
NS-100N |
25 |
25 |
|
NS-100H |
70 |
70 |
|
NS-100L |
150 |
150 |
|
NS-160D |
16, 20, 25, 32, 40, 50, 63, 80, 100, 125, 160 |
25 |
25 |
1000 |
7000 |
|
NS-160N |
36 |
36 |
|
NS-160H |
70 |
70 |
|
NS-160L |
150 |
150 |
|
NS-250D |
160, 180, 200, 225, 250 |
25 |
25 |
1000 |
7000 |
|
NS-250N |
36 |
36 |
|
NS-250H |
70 |
70 |
|
NS-250L |
150 |
150 |
|
NS-400D |
200, 225, 250, 300, 315, 400 |
35 |
35 |
1000 |
4000 |
|
NS-400N |
15 |
45 |
|
NS-400H |
70 |
70 |
|
NS-400L |
150 |
150 |
|
NS-630D |
315, 350, 400, 500, 600, 630 |
35 |
35 |
1000 |
4000 |
|
NS-630N |
45 |
45 |
|
NS-630H |
70 |
70 |
|
NS-630L |
150 |
150 |
