Product Specifications
| Prod Model: |
HM8500A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
Digital Sensor |
| Usage: |
Liquid Level Sensor |
| Theory: |
Magnetic Sensor |
| Material: |
Metal |
Product Description

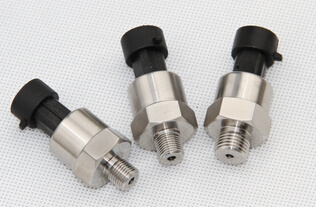

HM8500 series oil pressure sensor using thick-film and application specific integrated circuit (ASIC) design and manufacturing technology. High integration, signal amplification processing and temperature compensation to improve the performance of the various aspects of products, HM8500A is suitable for the engine oil pressure measurement.
This series of products with characteristics of EMC protection, high and low temperature, vibration, heat shock resistance and resistance to chemical pollution and so on, which suitable for bad environment, and can be customized to different shell and parameters to meet the needs of different models. It also can provide OEM service for customers.
Range: 0~1MPa, 0~5MPa, 0~10MPa(Optional or custom)
Static accuracy ± 1.5%FS
Supply voltage: 5VDC
Output voltage: 0.5~4.5V
Pressure connection: NPT1/8-27, R1/8-28, G1/4-19(Optional or custom)
Overload pressure: 3 x Range
Output type: Ratio meter type for below 5V
Pressure cycle life: 1, 000, 000 times
Protection grade: IP65
Measure medium: Compatible with the ceramic medium
Shenzhen Ever-Smart Sensor Technology Co., Ltd. Specializes in Manufacturing Pressure Sensor, Transmitter, Digital Pressure Gauge, Electronic Pressure Switches, etc.
We have inherited more than ten years of achievements and expericence in the field of sensor, With an optimization, Development and innovation team. The products of Ever-smart sensor completely reach or go beyond the criteria of the same kind products abroad.
The main market is Europe, North America, Germany, Iran, Turkey and so on.
