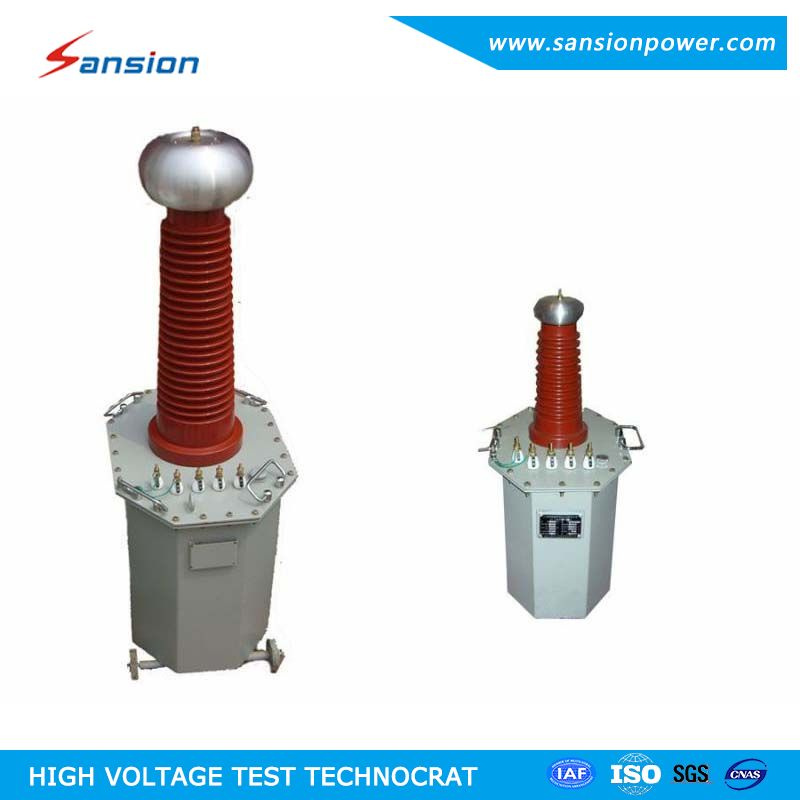

Oil Testing Transformer
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
General information:
YDJ Series Oil Immersed Type Testing Transformer can provide high voltage for various HV testing, and AC/DC HV output, to provide HV voltage to HV test.
Sansion oil type transformers are virtually maintenance free and are manufactured in accordance with industry and international standards including ISO 9001.
Features:
√ Compact in design, low cost and maintenance free.
√ Hermetically sealed with good insulation ability.
√ Stable accuracy over life time
√ Over voltage protection.
√ Octagonal shell, a movable wheel can be installed for 10KVA or above testing transformers, easy to move.
Specifications:| Model | Capacity | HV Voltage(KV) | HV Current(mA) | LV Input | Turns Ratio | Temperature RiseºC |
| (KVA) | AC | DC | AC | DC | Voltage
(V) | Current
(A) | HV/Measuring | 30
mins |
| YDJ 1.5/50 | 1.5 | 50 | 70 | 30 | 15 | 200 | 7.5 | 500 | 10 |
| YDJ 3/50 | 3 | 50 | 70 | 60 | 15 | 200 | 15 | 500 | 10 |
| YDJ 5/50 | 5 | 50 | 70 | 100 | 15 | 200 | 25 | 500 | 10 |
| YDJ 10/50 | 10 | 50 | 70 | 200 | 50 | 200 | 50 | 500 | 10 |
| YDJ 20/50 | 20 | 50 | 70 | 400 | 100 | 380 | 53 | 500 | 10 |
| YDJ 30/50 | 30 | 50 | 70 | 600 | 100 | 380 | 79 | 500 | 10 |
| YDJ 40/50 | 40 | 50 | 70 | 800 | 105 | 380 | 105 | 500 | 10 |
| YDJ 50/50 | 50 | 50 | 70 | 1000 | 100 | 380 | 132 | 500 | 10 |
| YDJ 10/100 | 10 | 100 | 140 | 100 | 50 | 200 | 50 | 1000 | 10 |
| YDJ 20/100 | 20 | 100 | 140 | 200 | 100 | 380 | 53 | 1000 | 10 |
| YDJ 30/100 | 30 | 100 | 140 | 300 | 100 | 380 | 79 | 1000 | 10 |
| YDJ 40/100 | 40 | 100 | 140 | 400 | 100 | 380 | 105 | 1000 | 10 |
| YDJ 50/100 | 50 | 100 | 140 | 500 | 100 | 380 | 132 | 1000 | 10 |
| YDJ 100/100 | 100 | 100 | 140 | 1000 | 100 | 380 | 250 | 1000 | 10 |
| YDJ 30/150 | 30 | 150 | 210 | 200 | 100 | 380 | 79 | 1000 | 10 |
| YDJ 40/150 | 40 | 150 | 210 | 267 | 100 | 380 | 105 | 1000 | 10 |
| YDJ 50/150 | 50 | 150 | 210 | 333 | 100 | 380 | 132 | 1000 | 10 |
| YDJ100/150 | 100 | 150 | 210 | 667 | 150 | 380 | 263 | 1000 | 10 |
Warranty: One year quality guarantee after shipment.
![]()
More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
| Prod Model: |
YDJ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Rectifier |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Sansion |
