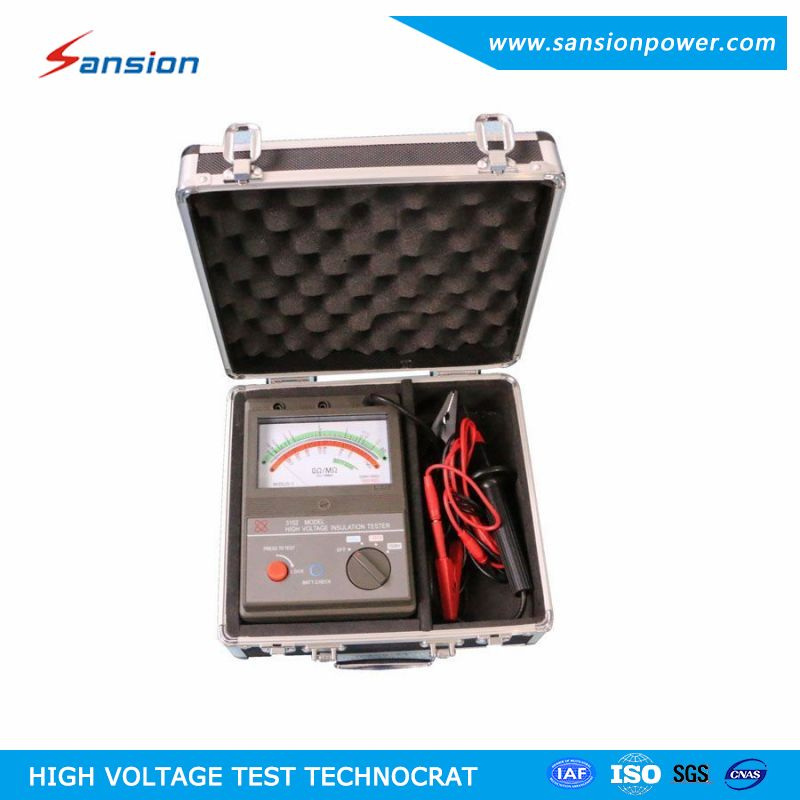

Pointer Type 5kv Insulation Resistance Meter
Product Specifications
| Prod Model: |
SXBJ Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage Range: |
500V/1000V/2500V/5000V |
| Test Error: |
10% |
| Measuring Range: |
200gohm |
| Installation: |
Clamp-on |
| Display Mode: |
Indicator |
| Theory: |
Machine-electric Type |
Product Description
General information:SXBJ Series Adapts advanced electric circuit and components, stable output voltage, wide measurement range, auto position changing. It's used to measure the insulation resistance of power cable, transformer, electric generator, HV switchgear and etc for electric power division, large scale industrial enterprises. Features:√ Working environment
√ Temperature: -10ºC - +40ºC
√ Relative humidity: 40ºC 85%RH
√ Power supply voltage: DC 12V
Specifications: | 2500V | 5000V | 500V /1000V /2500V | 2500V/5000V |
Output Voltage(DC) | 2.5KV±5% | 5KV±5% | 2.5KV±5% 1000V±5% 500V±5% | 5KV±5% 2.5KV±5% |
Measuring Range 1GΩ=1000MΩ | 0-2 GΩ 1-100 GΩ | 0-5 GΩ 2-200 GΩ | 2.5KV 0-2 GΩ 2-100 GΩ 1KV 0-0.8 GΩ 0.4-40 GΩ 500V 0-0.4 GΩ 0.2-20 GΩ | 2.5KV 0-2 GΩ 1-100 GΩ 5KV 0-4 GΩ 2-200 GΩ |
Measuring Error | 0.02 GΩ-50 GΩ±10% The rest:±20% | 0.02 GΩ-100 GΩ±10% The rest:±20% | 2.5KV typical value 0.02-50 GΩ±10% The rest:±20% | 5KV typical value 0.02-100 GΩ±10% The rest:±20% |
More information, please kindly contact with us, we can customize the suitable test set according your requirements and give you the best quotation. Thank you!
