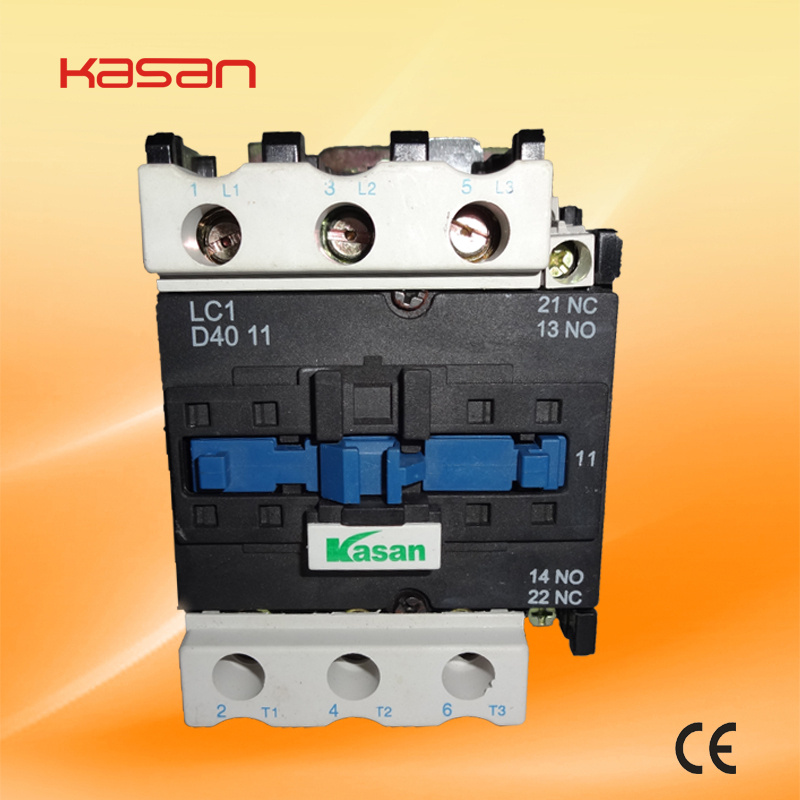

Old Type AC Contactors (LC1-D4011)
Product Specifications
| Prod Model: |
CJX2 LC1-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Miniature |
| Usage: |
Household Appliances Relay, Communication Relay |
| Theory: |
Contactor |
Product Description
LC1-D series AC contactor is suitable for suing in the circuits up to rated voltage 660V AC 50/60HZ, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contactor, mechanical interlocking contactor, and star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC947-2, VDE0660 & BS5452.
SPECIFICATION
Type |
LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 |
| Rated working current(A) | AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 |
| AC3 capacity of phase 3 squirrel-cage motor AC3(KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 |
| 415V | 4 | 5.5 | 9 | 11 | 15 |
| 440V | 4 | 5.5 | 9 | 11 | 15 |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 |
Rated heat current (A) |
20 | 20 | 32 | 40 | 50 |
| Electrical life | AC4×104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 |
| AC3×106 | 2 | 2 | 2 | 2 | 2 |
Mechanical life×106 |
20 |
20 |
20 |
20 |
20 |
Number of the contacts |
3P+NO |
3P+NC |
Type |
LC1-D40 |
LC1-D50 |
LC1-D65 |
LC1-D80 |
LC1-D95 |
Rated working current(A) |
AC3 |
40 |
50 |
65 |
80 |
95 |
AC4 |
18.5 |
24 |
28 |
37 |
44 |
AC3 capacity of phase 3 squirrel-cage motor AC3(KW) |
220/230V |
11 |
15 |
18.5 |
22 |
25 |
380/400V |
18.5 |
22 |
30 |
37 |
45 |
415V |
22 |
25 |
37 |
45 |
45 |
440V |
22 |
30 |
37 |
45 |
45 |
500V |
22 |
30 |
37 |
55 |
55 |
660/690V |
30 |
33 |
37 |
45 |
45 |
Rated heat current (A) |
60 |
80 |
80 |
125 |
125 |
Electrical life |
AC4×104 |
10-7 |
7 |
7-6 |
7-5 |
7-5 |
AC3×106 |
2 |
2 |
1.6 |
1.6 |
1.6 |
Mechanical life×106 |
20 |
20 |
20 |
20 |
20 |
Number of the contacts |
3P+NO+NC |
OUTLINE & MOUNTING SIZES
Outline & mouting sizes of KLC1-115-330 contactors are shown as followings:
Type | A | B | C | b1 | P | Q | S | Q1 | M | H | L | φ | Ga | Ha |
| LC1-115 | 167 | 163 | 172 | 137 | 37 | 70 | 20 | 60 | 147 | 124 | 107 | M6 | 80 | 110 |
| LC1-150 | 167 | 171 | 172 | 137 | 40 | 70 | 20 | 57.5 | 150 | 124 | 107 | M8 |
| LC1-185 | 171 | 174 | 183 | 137 | 40 | 71 | 20 | 59.5 | 154 | 127 | 113.5 | M8 |
| LC1-225 | 171 | 197 | 183 | 137 | 48 | 71 | 25 | 51.5 | 172 | 127 | 113.5 | M10 |
| LC1-265 | 204 | 203 | 215 | 145 | 48 | 87 | 25 | 66.5 | 178 | 147 | 141 | M10 | 96 |
| LC1-330 | 213 | 206 | 220 | 145 | 48 | 91 | 25 | 74 | 181 | 181 | 145 | M10 |
