Product Specifications
| Prod Model: |
HCC2020 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
105mm*100mm*156mm |
| Weight: |
300g |
| Voltage: |
5V |
| Power: |
1.0watt |
| Certification: |
CE |
| Type: |
Data Collector |
Product Description

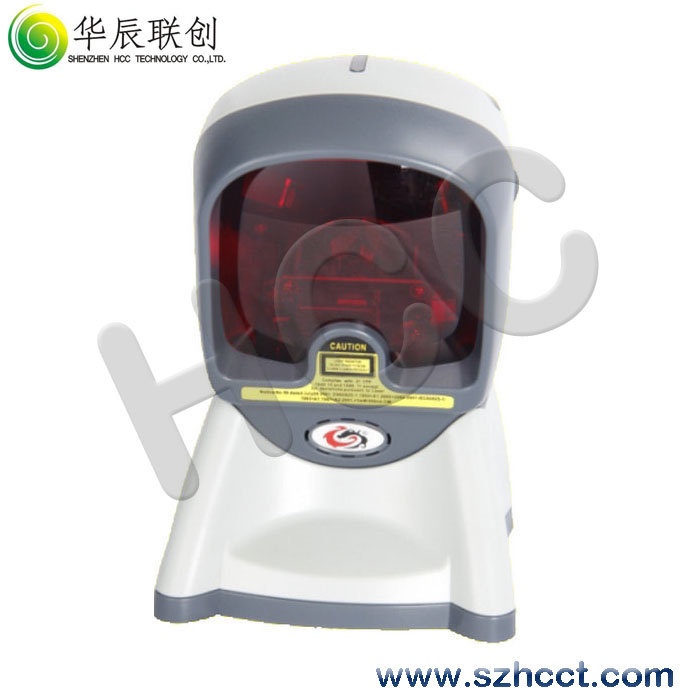

HCC2020 Omnidirectional Laser Barcode Scanner
Features:
Support both omnidirectional and single-line scan, easily changer the scan mode between omnidirectional and single-line by press the button
20 laser scan lines (5 directions) make the scan rate up to 1500scan/s, and 75 scan/s on single-line mode
Self-developed decoder chip and high performance hardware decode Technology can scan all kinds of 1D barcodes exactly and quickly
Suit for keyboard, RS-232, USB and emulator interface port
Suiting with each kind of charge machine
Full independent intellectual property rights ( having been award with multiple national patents)
Technical Specifications:
Performance parameter
Light source 650nm Visible laser diode
Scan Pattern 20lines omnidirectional: 5 fields of parallel lines
Scan Rate 1500 scans per second(omnidirectional), 75scans per second (single-line)
Print contrast 30%UPC/EAN 100%
Minimum resolution 5mil@PCS90%
Scan depth of field 0-200mm(0.33mm. PCS 90%)
Support interface RS232, PS2 keyboard, USB and so on.
Indicators(LED) Two color LED (Blue &Red)
Beeper operation Programmable tone &volume
Physics Parameter
Size L*W*H: 105mm*100mm*156mm
Weight 300g
Material ABS+PC
Cable standard 2.0m
Electricity parameter
Voltage 5V
1.0wattPower s
Static current 200mA
Laser safety Comply with national Laser II safety standard
EMC CE & FCC DOC compliance
Environment Parameter
Working temperature 0º C-45º C
Storage temperature -20º C-60º C
Humidity Relative humidity 5%-95%(Non-condensing)
Light levels Max. 5, 000 Lux(Fluorescence)
Shock Designed to withstand 1.5m drops
Decode capacity EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, and so on.
