Online High Frequency UPS for Computer 1000va-10kVA

Name: Online High Frequency UPS for Computer 1000va-10kVA
Brand: China-Manufacturer-Directory.com
SKU: 696987822
Availability: InStock
Rating: 4.6 (77 reviews)

Supplier:	Zhejiang TTN Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Online High Frequency
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	P
Voltage Regulation:	1%
Current Crest Ratio:	3 : 1
Waveform(Batt. Mode):	Pure Sine Wave
Standard Model:	4 Hours Recover to 90% Capacity
Long-Run Model:	Depending on The Capacity of External Batteries
LCD:	Load Level, Battery Level, AC Mode, Bypass Mode, a
Optional Snmp:	Power Management From Snmp Manager and Web Browser
Capacity:	1-30kVA
Wide Input Voltage Range:	110V to 300VAC
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Brand:	Ttn

Product Description

P1K(L)-P3K(L) ONLINE HIGH FREQUENCY UPS

Function Features
True double-conversion online UPS
Microprocessor control optimizes reliability
Output power factor0.8
Wide Input voltage range(110V - 300VAC)
Input power factor correction
Converter mode available
ECO mode for energy saving
Generator compatible
Smart SNMP works well with either USB or RS-232 together
Comprehensive display allows easy monitoring and access of UPS status

Specification

MODEL			P1K(L)	P2K(L)	P3K(L)
PHASE			Single phase with ground
CAPACITY			1000VA/ 800W	2000VA/ 1600W	3000VA / 2400W
INPUT
Nominal Voltage			100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range			55~150 VAC or 110-300VAC at 50% load 85-140 VAC or 160-280VAC at 100% load
Frequency Range			40Hz ~ 70Hz
Power Factor			>=0.99@ Nominal voltage(100% load)
OUTPUT
Output Voltage			100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation			±1%
Frequency Range(Synchronized Range)			47-53 Hz or 57~63 Hz
Frequency Range(Batt. Mode)			50 Hz±0.25Hz or 60Hz±0.3 Hz
Current Crest Ratio			3 : 1
Harmonic Distortion			<=3% THD(Linear Load), <=6% THD(Non-linear Load)
Transfer Time		AC to DC	Zero
		Inverter to Bypass	4ms(Typical)
Waveform(Batt. Mode)			Pure Sine wave
EFFICIENCY
To AC Mode			88%	88%	90%
To Battery Mode			83%	85%	88%
BATTERY
Standard Model	Battery Type		12V/7Ah	12V/7Ah	12V/7Ah
	Numbers		2	4	6
	Typical Recharge Time		4 hours recover to 90% capacity
	Charging Current(max.)		1.0A
	Charging Voltage		27.4VDC±1%	54.7VDC±1%	82.1VDC±1%
Long-run Model	Battery Numbers		Depending on the capacity of external batteries
	Charging Current(max.)		1A-6A(Adjustable)
	Charging Voltage		41.0VDC±1%	82.1VDC±1%	109.4VDC±1%
INDICATORS
LCD			Load level, Battery level, AC mode, Bypass mode, and Fault indicators
PHYSICAL
Standard Model	Dimension, D×W×H(mm)		397×145×220	419×190×318
	Net Weight(kgs)		9.8	17	23
Long-run Model	Dimension ,D×W×H(mm)		282×145×220	397×145×220
	Net Weight(kgs)		3.97	6.7	7.24
ENVIRONMENT
Humidity			20-90% RH@ 0-40ºC(Non-condensing)
Noise Level			Less than 50dBA@ 1 Meter
MANAGMENT
Smart RS-232/USB			Support Windows@2000/2003/XP/Vista/2008, Windows@7/8, Linux, Unix, and MAC
Optional SNMP			Power management from SNMP manager and web browser

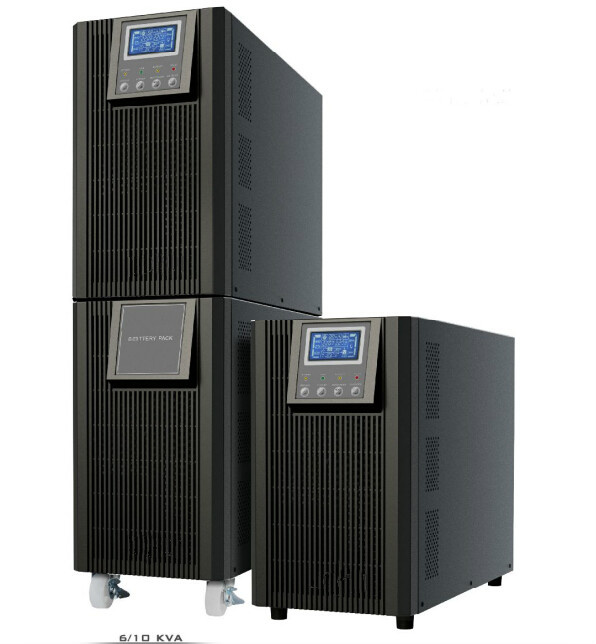

P6K(L)/P10K(L) ONLINE HIGH FREQUENCY UPS

Function Features
True double-conversion online UPS
DSP technology guarantees high performance
Output power factor 0.8
Standard backup UPS and long backup UPS in one integrated unit
Adjustable charging current via LCD or software(0.5A-6A)
Wide input voltage range(110-300VAC)
Active Input power factor correction 0.99
Emergency power off function(EPO)

Specification

MODEL			P6K(L)	P10K(L)
PHASE			Single phase with ground
CAPACITY			6000VA/ 4800W	10000VA / 8000W
INPUT
Nominal Voltage			208/220/230/240VAC
Input Voltage Range			110-300 VAC at 50% load ,178-300 VAC at 100% load
Frequency Range			46~54Hz or 56~64Hz
Power Factor			>=0.99@ Nominal voltage(100% load)
OUTPUT
Output Voltage			208/220/230/240VAC
Voltage Regulation			±1%
Frequency Range(Synchronized Range)			46~54 Hz or 56-64 Hz
Frequency Range(Batt. Mode)			50 Hz or 60Hz ±0.1 Hz
Current Crest Ratio			3 : 1
Harmonic Distortion			<=3% THD(Linear Load), <=5% THD(Non-linear Load)
Transfer Time		AC to DC	Zero
		Inverter to Bypass	Zero
Waveform(Batt. Mode)			Pure Sine wave
EFFICIENCY
To AC Mode			92%	90%
To Battery Mode			90%	89%
BATTERY
Standard Model	Battery Type		12V/7Ah
	Numbers		16
	Typical Recharge Time		9 hours recover to 90% capacity
	Charging Current(max.)		1.0A
	Charging Voltage		218.4VDC±1%
Long-run Model	Battery Numbers		Depending on the capacity of external batteries
	Charging Current(max.)		1A, 2A, 4A, 6A(Adjustable)	Default:4.0A± 10%
	Charging Voltage		218.4VDC±1%
INDICATORS
LCD			Load level, Battery level, AC mode, Bypass mode, and Fault indicators
PHYSICAL
Standard Model	Dimension,D×W×H(mm)		369×190×688	442×190×688
	Net Weight(kgs)		60	66
Long-run Model	Dimension,D×W×H(mm)		369×190×318	442×190×318
	Net Weight(kgs)		12	16
ENVIRONMENT
Humidity			0-95% RH@ 0-50ºC(Non-condensing)
Noise Level			Less than 58dBA@1 Meter
MANAGMENT
Smart RS-232/USB			Support Windows@2000/2003/XP/Vista/2008, Windows@7/8, Linux, Unix, and MAC
Optional SNMP			Power management from SNMP manager and web browser

P10K(L)(3/1)-P20K(L)(3/1) ONLINE HIGH FREQUENCY UPS

Function Features
True double-conversion online UPS
DSP technology guarantees high performance
Output power factor0.8
Wide Input voltage range(110V - 300VAC)
Active power factor correction in all phases
50Hz/60Hz frequency converter mode
ECO mode for energy saving
Generator compatible
Programmable power management outlets
Emergency power off function(EPO)
Charger capacity expansion to 8A for long-run models
3-stage extendable charging design for optimized battery performance
SNMP+USB+RS-232 multiple communications
Maintenance bypass available
Optional N+X parallel redundancy

Specification

MODEL			3P10KL	3P15KL	3P20KL
PHASE			3- phase in/ 1-phase out
CAPACITY			10000VA/ 8000W	15000VA/ 12000W	20000VA / 16000W
INPUT
Input Voltage Range			305~478 VAC (3-phase) at 100% load 190-520 VAC ( 3-phase) at 50% load
Frequency Range			46-54Hz or 56-64Hz
Power Factor			>=0.99@ Nominal voltage(100% load)
OUTPUT
Output Voltage			208/220/230/240VAC
Voltage Regulation			±1%
Frequency Range(Synchronized Range)			46-54 Hz or 56~64 Hz
Frequency Range(Batt. Mode)			50 Hz±0.1Hz or 60Hz±0.1 Hz
Current Crest Ratio			3 : 1
Harmonic Distortion			<=2% THD(Linear Load), <=5% THD(Non-linear Load)
Transfer Time		AC to DC	Zero
		Inverter to Bypass	Zero
Waveform(Batt. Mode)			Pure Sine wave
EFFICIENCY
To AC Mode			89%	89%	89%
To Battery Mode			86%	88%	87%
BATTERY
Long-run Model	Battery Numbers		Depending on the capacity of external batteries
	Charging Current(max.)		4A	4A
	Charging Voltage		218.4VDC±1%
INDICATORS
LCD			UPS status, Load level, Battery level, Input / Output voltage, Discharge timer, and Fault indicators
PHYSICAL
Long-run Model	Dimension ,D×W×H(mm)		592×250×576	592×250×576
	Net Weight(kgs)		28	40	40
ENVIRONMENT
Humidity			20-90% RH@ 0-40ºC(Non-condensing)
Noise Level			Less than 50dBA@ 1 Meter
MANAGMENT
Smart RS-232/USB			Support Windows@2000/2003/XP/Vista/2008, Windows@7/8, Linux, Unix, and MAC
Optional SNMP			Power management from SNMP manager and web browser
*Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC.
