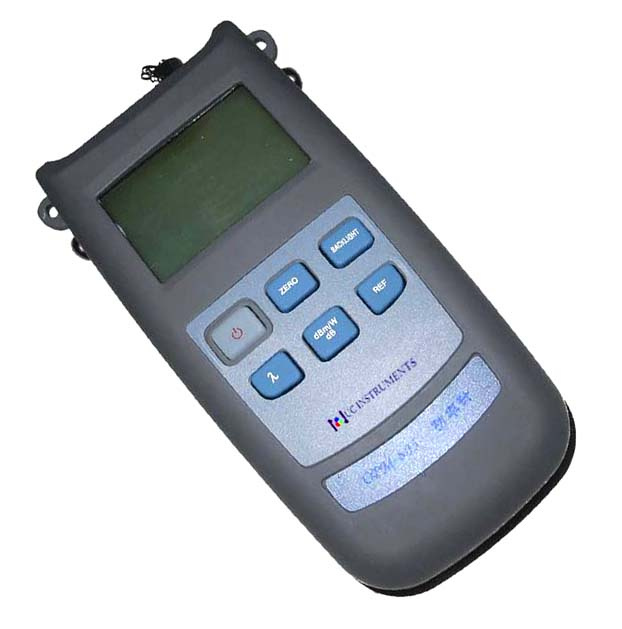

Opm-60x Handheld Optical Power Meter

Name: Opm-60x Handheld Optical Power Meter
Brand: china-manufacturer-directory.com
SKU: 676703942
Availability: InStock
Rating: 4.5 (141 reviews)

Supplier:	Guilin GM Technology Industry Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	OPM-60X
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Single-mode Fiber

Product Description

The OPM-60X series handheld optical power meter is used for direct power measurement or power loss relative measurement. The OPM-60X is a base measurement instruments for Tele-COM and the characterization and feature evaluation of optical fiber and optical cable, optical passive component.

Model #	OPM-603A	OPM-603B	OPM-605A	OPM-605B
PowerRange	-70 ~ +3 dBm	-50 ~ +26 dBm	-70 ~ +3 dBm	-50 ~ +26 dBm
Detector Type	SI		InGaAs
Detector Dimensions	0.3 mm		1.0 mm
WavelengthRange	600 ~ 900 nm		800 ~ 1650 nm
Working Wavelength	850, 980, 1310, 1490, 1550, 1625nm
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Uncertainty (accuracy) at reference condition	+/- 5%
Optical Input Connector	universal contact
Display Resolution	0.01 dBm
Operation Temperature	-10 to +60 degree
Storage Temperature	-25 to +70 degree
Automatic shutdown time	10 minutes
Continued working time	200 hours
Power Supply	DC1.5V battery, three
CommunicationPort	RS232
Dimensions	156 X 88 X 36 mm
Weight	130 g
