Product Specifications
| Prod Model: |
WXG-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range Of Optical Rotation: |
+/- 180° Degree |
| Dial Venire Value In Reading: |
0.05 Degree |
| Monochromatic Light Source: |
589.44 Nm (Sodium Lamp) |
| Accuracy: |
<0.05 |
| Length Of Test Tube: |
100mm 200mm |
| Voltage: |
AC220±22V50±1Hz 100W |
| Warranty: |
3 Years Optical System |
| Type: |
Measurement Type |
Product Description

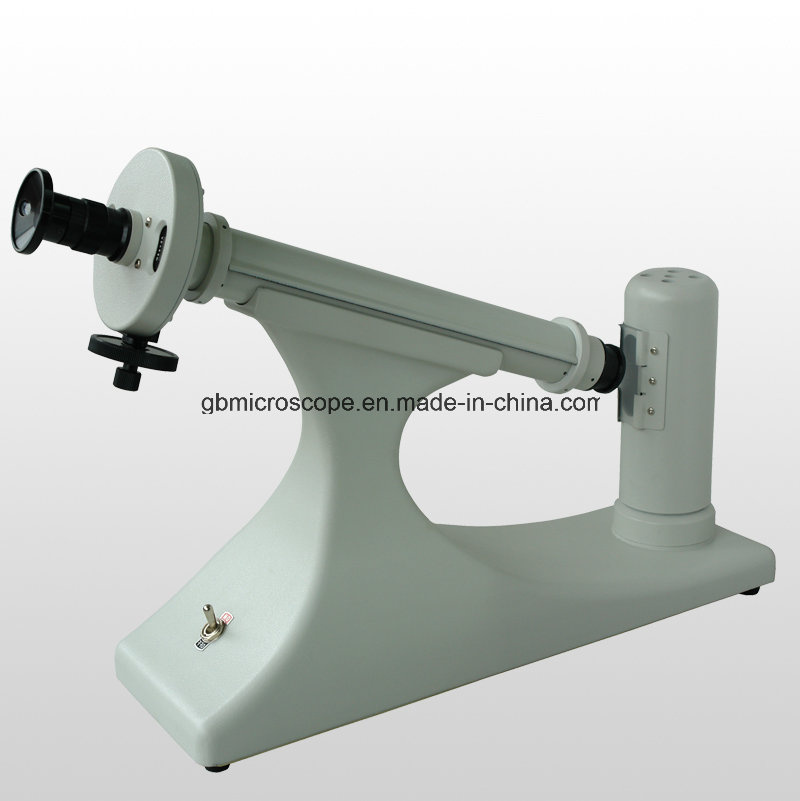

Manual Disc Polarimeter: WXG-4
Description:
This great brand new disc polarimeter is used for measuring the organic substances with optical rotaion. With the aid of the disc polarimeter, the specific gravity, purity, concentration and content of thousands of active materials, such as sugar solution, turpentine oil and camphor could be measured. For example, in the food industry, it can be used to inspect the sugar content and measure the sugar content of food flavorings, In the clinic or hospital, it can be used to measure the sugar content and protein in urine. In the sugar refinery, it can be used to inspect the concentration of the sugar solution in industrial processes
| Specifications: |
| Measuring range of optical rotation: | +/- 180° degree |
| Dial Venire Value in Reading | 0.05 degree |
| Monochromatic Light Source | 589.44 nm (sodium lamp) |
| Accuracy | ±0.005 degree |
| Repeatability | ≤0.05° |
| Length of test tube | 100mm 200mm |
| Power source | AC220±22V50±1Hz 100W |
| Net. Weigh | 7.0 Kg |
| Packing List: |
| disc polarimeter | 1 pc |
| sodium lamp | 1 pc |
| 100mm test tube | 1 pc |
| 200mm test tube | 1 bottle |
| test tube protective plate | 4 pcs |
| mini screwdriver | 1 pc |
