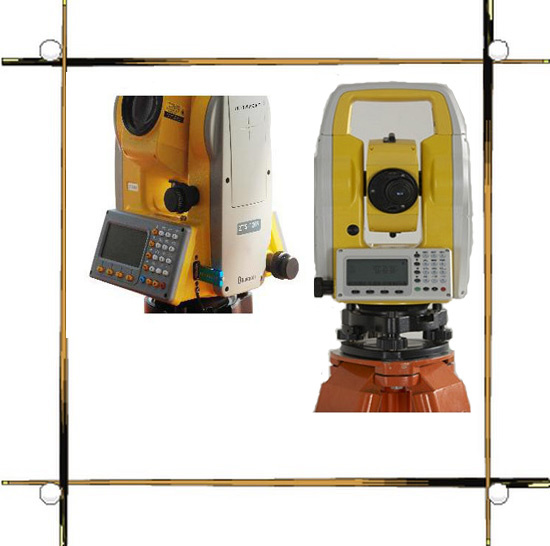

Optical Instruments Reflectorless Electronic Total Station
The ZTS-320/R is configured with advanced dual-axis compensatorfor auto error elimination and auto accuracy compensation,Diversified data transfer options such as SD card, USB pen drive, mini-B interface
This kind of Hi-Target high precision total station is widely used in surveying and mapping,engineering construction,it's popular in the market for it's high precision,good quality,competitive price,
It can help customers to do most of the work in surveying and mapping.
As for Hi-Target brand Engineering Construction Total Station,it's a yonger products,full of creative and thoughtful sonsideration.It's really a competitive prodcts compete with other brand.
The specificaions
| Model | ZTS320R |
| Angle Measurement |
| Measurement Method | Absolute Encoding |
| Minimum Readout | 1"/5"/10" |
| Angle Accuracy | 2″ |
| Distance measurement(ZTS-320R with reflector) |
| Single prism | 3000m |
| Three Prisms | 6000M |
| Reflective Sheet | 800m |
| Accuracy | 2mm+2ppm |
| Measuring time(Fine/Quick/Tracking) | 1.5s/1s/0.5s |
| Distance measurement(ZTS-320R reflectorless) |
| Reflectorless Range | 350m |
| Single Prism | >7500m |
| Accuracy | 3mm+2ppm |
| Measuring time | 1.5s |
| Telescope |
| Magnification | 30X |
| Field of View | 1°30′ |
| Minimum Focusing Distance | 1.5m |
| Reticle | Illuminated |
| Compensator |
| System | Single-axis liquid tilt sensor/Dual-axis (optional) |
| Working Range | ±3′ |
| Setting Accuracy | 1″ |
| Communication |
| Bluetooth | Optional |
| Interface | Standard RS232,SD card,USB pen drive,mini-B |
| Internal Data Memory | Approx. 20,000 points |
| Data Format | ASCII |
| Operation |
| Operation system | Real-time Operation System |
| Display | High resolution backlight black and white display with contrast adjustment/ |
| Graphics: 192x96 pixels |
| Character: 6 lines x 25 characters |
| Keyboard | 2 sides Alphanumeric backlit crystal keyboard |
| Laser plummet |
| Type | Laser point, 4 brightness levels adjustment / Optical plummet (optional) |
| Centering Accuracy | 1 mm at 1.5m instrument height |
| Power supply |
| Battery Type | Rechargeable Li-ion battery |
| Voltage/Capacity | ZBA-400: 7.4V (DC) / 3000mAh |
| Operating time with ZBA-400 | Optimal 16 hours / 10 hours(typical) |
| Measuring times | Approx 12000 times |
| Weight |
| Weight (Incl.Battery & Tribrach) | Approx 5.5kg |
| Environmental |
| Operating temperature | -20°C~50°C |
| Storage temperature | -40°C~70°C |
| Dust &Water Proof (IEC60529 Standard)/Humidity | IP65, 95%, non-condensing |
What's the advantage of our Electronic Total Station?
Dual-axia Compensation
The ZTS-320/R is configured with advanced dual-axis compensator for auto error elimination and auto accuracy compensation.
Absolute Encoding
The absolute encoding disk ensures high accuracy,efficiency and stable performance,Initialization is needless but to measure the angle immediately as the ZTS-320/R is turned on.
The azimuth information won't be missed even the ZTS-320/R is power-off unexpectedly.
High-performance MCU SMT32
The STM32 MCU based on ARM Cortex™-M processor enables the ZTS-320/R has extra high processing speed and low-power consumption.
Bluetooth
The Bluetooth wireless technology makes ZTS-320/R accessible to any data collector for real-time communication.The third party field software such as Carlson SurvCE is fully compatible with the ZTS-320/R.
Data Storage
Diversified data transfer options such as SD card,USB pen drive,mini-B interface.
Backlight
The display and keyboard with backlight for working in the dark.
Diagonal Eyepiece
Support diagonal eyepiece for observations at steep line of sight.
Calibration Software
The proprietary HI-TARGET Calibration software is accessible for real-time diagnosis to ensure trouble-free operation.
Data Transfer Software
The proprietary HI-TARGET data transfer software supports different type of output data format,
which can be used in AutoCAD or other brands' post processing software.
Why choose us?
1.We have more than 6 years of developed sales chanels in many countries.
2.Our company are highly acclaimed and favorably accepted by numerous customers and possessed of the right to import and export.
3.We prominent emphasize the human concern,respect,rust in company management,as we as stimulate staff's sense of responsibility and the sense of mission.
4.Inspected by the Inspection Institution of Bureau Veritas Certification.
5.100% QC inspection Before Shippment.
6.CE/FC listed,competitve price.effective delivery.
