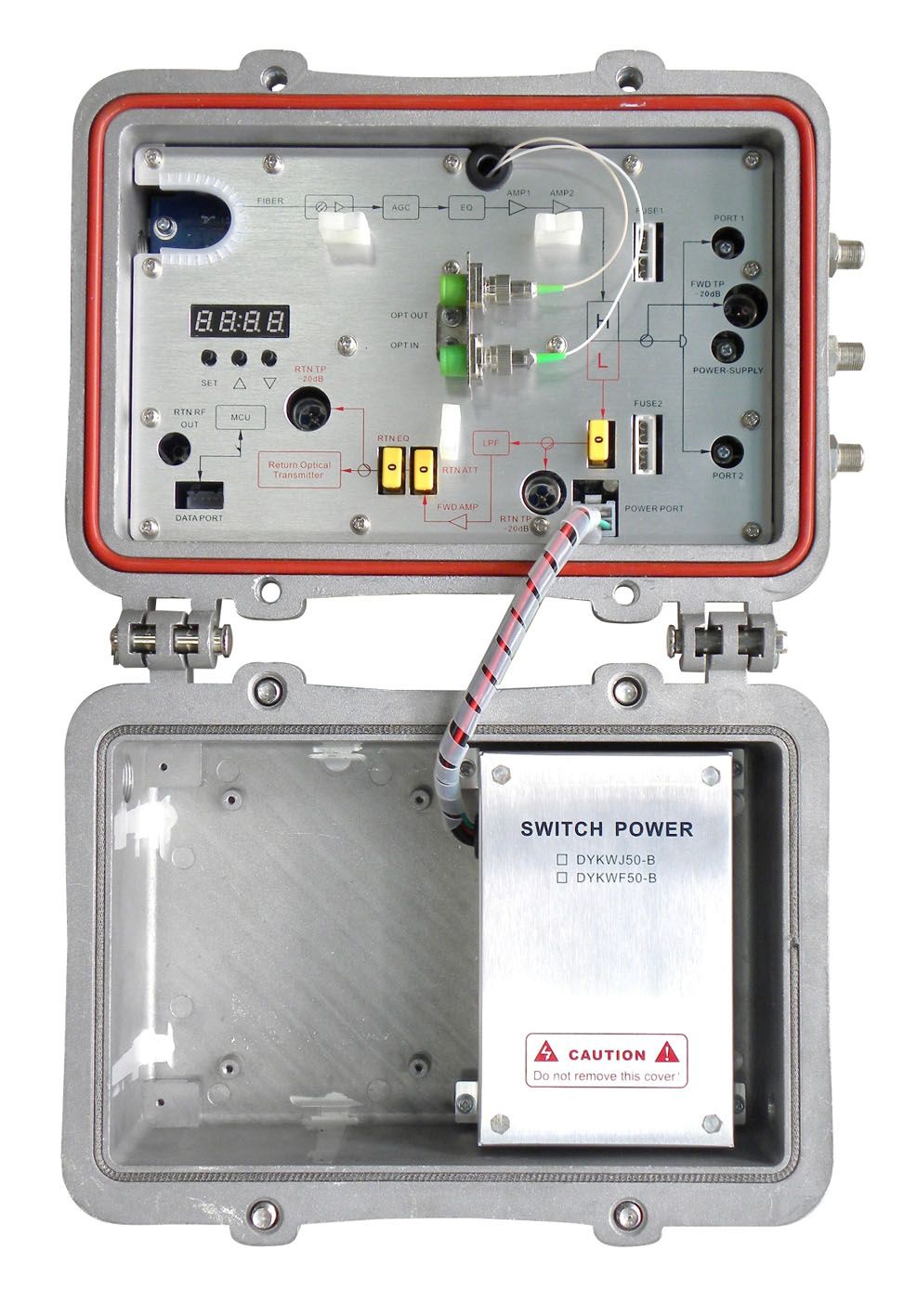

Optical Node (GWS-862H2J-A100P040M)

Name: Optical Node (GWS-862H2J-A100P040M)
Brand: china-manufacturer-directory.com
SKU: 695753945
Availability: InStock
Rating: 4.9 (148 reviews)

Supplier:	Sichuan Jiuzhou Electronic Technology Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	Any

Product Specifications

Prod Model:	GWS-862H2J-A100P040M
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	CATV（Cable Television）Equipment

Product Description

FEATURES
High quality Silicon optical receiver module completes O/E conversion.
Two-Stage RF amplification design: The first stage by a GaAs MMIC amplifier, and the second stage by a GaAs power doubler amplifier module.
Optical AGC function keeps RF output level constant when input optical power varies.
Dual RF outputs. RF output level ≥ 104dBμ V.
MCU senses node's working parameters and get them shown on the numeric display. MCU also enables operation buttons below numeric display to tune forward-path RF slope, level, and AGC range.
All configured parameters could be automatically loaded when node is restarted.
RF test point is built for both forward-path and return-path.
Waterproof Aluminum die-casting housing prevents humidity and electromagnetic interference.
Suitable for outdoor installation where requests strand mounting.

Forward-Path	Unit	Specifications
Optical
Wavelength	nm	1290~1580
Input Power	dBm	-7~+1
Optical AGC Range	dBm	-7~+1
Connector	/	SC/APC or FC/APC
RF
Frequency	MHz	47/54/87~862
Output Level	dBμ V	≥ 104, (2 equal RF out, optical input @ -1dBm)
Connector	/	F-female
Return Loss	dB	≥ 14
Test Point	dB	-20± 2
Optical Link Performance
Frequency Response	dB	± 1.5
C/N	dB	≥ 51
C/CSO	dB	≥ 63
C/CTB	dB	≥ 65
Test Conditions: 59-CH PAL-D analog signal, 1310nm optical transmitter GFS1310F-B, node with -1dBm optical input power and 10dB equalization.
Return Path (Optional)	Unit	Specifications
RF
Frequency	MHz	5~30/42/65
Input Level	dBμ V	75
Return Loss	dB	≥ 14
Test Point	dB	-20± 2
Optical
Wavelength	nm	1310± 20
Laser Type	/	FP Laser or DFB Laser
Transmitting Power	mW	1~2 (Depends on Laser)
TX Power Stability	dBm	± 0.5
NPR Dynamic Range (NPR≥ 30dB)	dB	≥ 15dB, FP Laser.
Optical Link Frequency Response	dB	± 1
Power Supply	Unit	Specifications
Power Supply	V	AC 60V or AC 220V
Power Pass Current	A	10

We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.

Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.

All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
