Product Specifications
| Prod Model: |
JZ3208 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

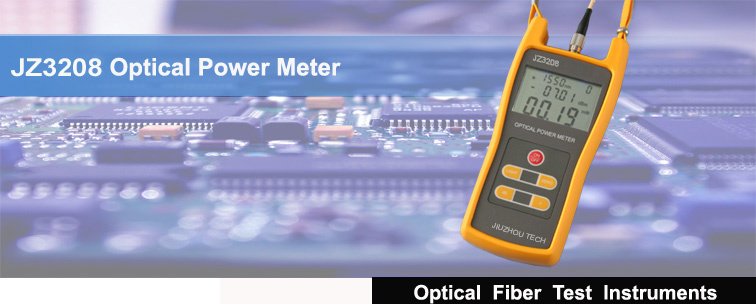

Jiuzhou designs JZ3208 series handheld optical power meter to meet advanced demand. It can be used for the absolute power measurement and relative measurement of the link loss in dB. It favors you with its compact size, friendly operation interface, wide power measurement range, high precision and user automatic calibration function. Making JZ3208 an ideal tool for optical fiber work.
Features:
. User automatic calibration function
. With universal 1.5V batteries, more than 240 hours operating times
. Linearity and non-linearity will be displayed together
. Universal interface
. Optional auto-off function
. Prompt response, no warm up
. Waterproof designs and portable package
Applications:
. Maintenance telecom
. Maintenance CATV
. Test Lab
. Other light fine work
| JZ3208 Handheld Optical Power Meter Specifications |
| Type | JZ3208A | JZ3208C |
| Wavelength | 800 to 1600nm |
| Detector | InGaAs |
| MeasurementRange | -70 to +3dBm | -50 to +23dBm |
| Uncertainty | ±0.15dB |
| Display Resolution | Linear: 0.1% or Nonlinear: 0.01dBm |
| Operating Temperature | -10 to +60 Degree |
| Storage Temperature | -25 to +70 Degree |
| Auto-off Time | 10 min |
| Operating Time | ≥240 h |
| Battery | 3 AA 1.5V |
| Weight | 200 g |
| Dimensions | 152*74*26 mm |
We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.
Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.
All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
