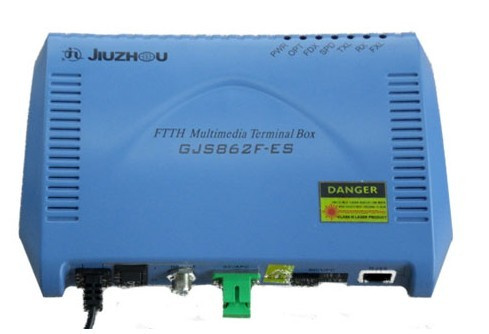

Optical Receiver with Ethernet Media Converter (GJS862F-ES)

Name: Optical Receiver with Ethernet Media Converter (GJS862F-ES)
Brand: China-Manufacturer-Directory.com
SKU: 695766525
Availability: InStock
Rating: 4.8 (120 reviews)

Supplier:	Sichuan Jiuzhou Electronic Technology Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	Any

Product Specifications

Prod Model:	GJS862F-ES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

FEATURES
According to IEEE 802.3 10Base-T, 10Base-FL IEEE802.3u 100Base-TX, 100Base-Fx standards.
Compatible with IEEE802.3 Ethernet, IEEE802.1d Spanning Tree, IEEE802.1p QoS, IEEE802.1Q VLAN TAG, IEEE802.3X Autonegotiation standards.
Auto MDI-II/MDI-X.
10/100M auto-negotiation.
Internet signal over one fiber or two fibers.
25km optical transmission distance with standard single mode optical fibre.
LED indication on top.
High sensitive optical receiving module.
AC 85~265V power supply.

CATV
Optical Wavelength	1310± 20 nm / 1550± 20 nm
Input Power Range	-8 ~ 0 dBm
Input Reflection Loss	≥ 45dB
Optical Link Flatness	± 1.0 dB
Optical Link C/CTB	≥ 65 dB
Optical Link C/CSO	≥ 66 dB
Optical Link C/N	≥ 49 dB
* Connected with 1550nm optical transmitter, 84-PAL signal flat input, -4dBm optical receiving power.
RF Frequency Range	47--862 MHz
RF Output Reflection Loss	≥ 14 dB
RF Output Level	80 dBμ V
Connector	Optical: SC/APC, RF: F10
Ethernet Connection
Wavelength	1310 nm / 1550 nm
Optical Transmitting Power	-15 -- -6 dBm
Receiving Sensitivity	-30 dbm
Transmission Distance	0~25 km
Transmitting Rate	10/100Mbps AUTO
Connector	Optical: SC/PC, Twisted Pair: RJ45
Power Supply
Power Supply	AC 85 --265 V
Power	≤ 3.5 W
Others
Working Temperature	-10 --+40
Dimensions	192 × 135 × 36 MM
Weight	380 g

We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.

Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.

All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
