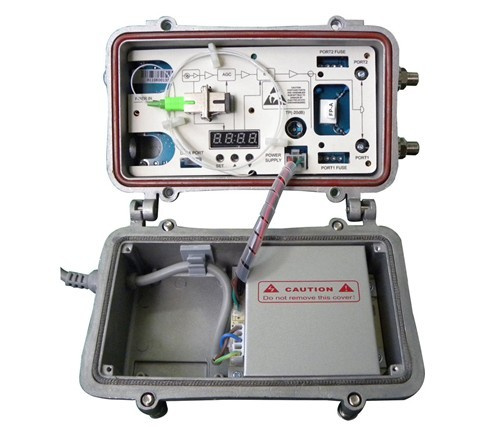

Optical Receiver with Optical AGC GJY862H2J/F-F

Name: Optical Receiver with Optical AGC GJY862H2J/F-F
Brand: china-manufacturer-directory.com
SKU: 695756575
Availability: InStock
Rating: 4.4 (33 reviews)

Supplier:	Sichuan Jiuzhou Electronic Technology Co., Ltd.
Price:	Negotiable
Min Order:	1 /Piece
Quantity::
Trade Terms:	Any

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	CATV（Cable Television）Equipment

Product Description

FEATURES
with optical AGC function, output level is no change under different optical power (-7- +1dBm).
Digital display forward receive optical power, voltage, etc. Else parameters, accurate and intuitive.
Adjust output level, equalization by press-key only
Frequency bandwidth 47-862MHz.
One-way receiving, 2 distribution or branch output.
Forward RF single -20dB test port.
Adopts AC60V centralized power supply or AC220V power supply.

Item	Unit	Performance parameter	Remarks
Down-link optical receive performance parameter
Receiving optical wavelength	nm	1290--1580
Receiving optical power range	dBm	-7--+1
Frequency range	MHz	47--862
Optical link frequency response	dB	± 1
Return loss	dB	≥ 14
Test port level	dB	-20(± 2)	Compare to output port
Output level	dBμ V	≥ 110(branch output)	Connect with GFS1310F-B optical transmitter, -1dBm optical receiving, 59-way PAL-D single input, 10dB equalizer.
Output level	dBμ V	≥ 106(distribution output)
Optical link C/N	dB	≥ 51
Optical link C/CSO	dB	≥ 63
Optical link C/CTB	dB	≥ 65
Optical AGC range	dBm	-7--+1
Other parameters
Fiber connection type		SC/APC	Or FC/APC
Power supply voltage	V	AC60(GJY862H2J-F)	Or AC220 (GJY862H2F-F)

We are professional CATV products manufactory, which stablished in 1958, we have 52 years of experience in developing and manufacturing CATV systems. Our sales network covers China, Southeast Asia, the Middle East, Europe, and the US.

Our product range includes:
1. Full DVB-C digital headend equipment/software/STB, and solution.
2. Full Gepon/EOC equipments, and solution.
3.1550/1310nm Optical euquipments.
4. Optical workstations, Nodes and receivers.
5. Optical devices and accessories.
6. RF modulators.
7. Trunk and line amplifiers.
8.5-1, 000MHz taps/splitters.
9. Satellite Dish antennas.
10. C/Ku band LNBs.
11. Coaxial and optical cables.

All operations at our 410, 000 square meter facility are ISO 9001 certified. 5600 employees, 100 R&D staff, and 500 engineers are ready to satisfy your requirements. We have an annual capacity of 2, 000, 000 terminal equipment and 80, 000 network equipment.
