Orifice Plate Flow Meter (A+E 88F)
Product Specifications
| Prod Model: |
A+E 88F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Diameter: |
15 -1200mm |
| Nominal Pressure: |
<10mpa |
| Working Temperature: |
-50-550 Degree |
| Sensor: |
Tube/Flange |
| Type: |
Differential Pressure Flow Meter |
| Accuracy: |
?à0.6-1% |
| Measuring Principle: |
Mechanics |
| Main Application: |
Corrosive Liquid/Gas |
| Certification: |
Gn, Ans, ISO, SGS |
| Measuring Media: |
Liquid, Gas, Steam |
Product Description

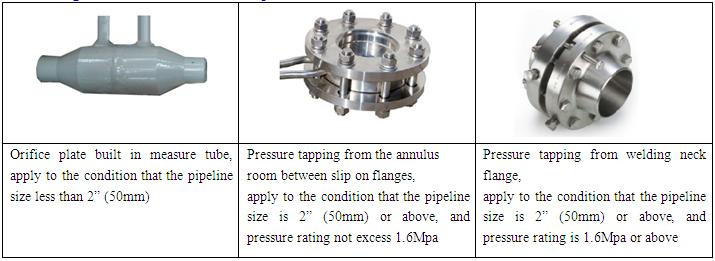

Orifice Plate Flow Meter is a combined device with differential pressure meter, which is used for measuring the flow of liquid, gas and steam. This product is widely used in the industries of petroleum, chemical engineering, metallurgy, electricity and light industry. The products meet the standard and have the characteristics of simple structure, high accuracy, good reliability and safety, wide application range.A+E 88F Series Throttling Device is a kind of standard throttling device, which can be directly manufactured in accordance with the national and international standard without calibration:
1. National standard GB/T2624-2006 Measure flow with the differential pressure device installed in the pipeline with round section and full of liquid ;
2. International standard ISO5167:2003 (E) Measure flow with the differential pressure device-installed in the pipeline with round section and full of liquid.
Features
1) Widely used for measuring the flow of gas, steam and liquid;
2) It is suitable for environment with high, low pressure.
3) Simple structure and convenient installation;
4) Accurate measurement, stable performance;
5) Wide application range, low cost. Throttling Device
Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.
AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.
The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.
AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.
The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
