Outdoor P6.25 Full Color LED Digital Display with High Brightness
Product Specifications
| Prod Model: |
P6.25-OR1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Encapsulation: |
SMD3535 |
| Module Size: |
250X250mm |
| Cabinet Material: |
Die-Casting Aluminum |
| Control Method: |
Synchronous |
| Waterproof IP: |
IP65 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Pitch: |
6.25mm |
| Pixel Density: |
25600dots/Sq.M |
| Scanning Mode: |
1/10 Scan |
Product Description
P6.25 Full Color LED Digital Display for outdoor advertising, can be stack or hanging installation, with seamless spliced, high resolution,high gray scale, high refresh rate, high brightness,good stabilityProduct Features:
1.SMD3535 3 in 1 led encapsulation confirm wide view angle and lower power consumption
2. Good waterproof IP65, suit to any weather,anti-corrossion,long life span>100000Hours
3. Die-casting Aluminum material cabinet with slim thickness of 75mm ensure strong durable and light weight, easy to pick up and move, better for rental use,4. High brightness up to 5500nits, close view distance,good performance
5. Rental design cabinet with locks and aviation plugs, easy and quick to assemble without tools in short time, can be fixed install or hang on truss with flying bar
6. Dot to dot maintainance, quick maintain and save cost
7.No fans design, no noise caused, good environment protection
8. Widely used for stage, concert, show, banquet, wedding, public advertising etc.

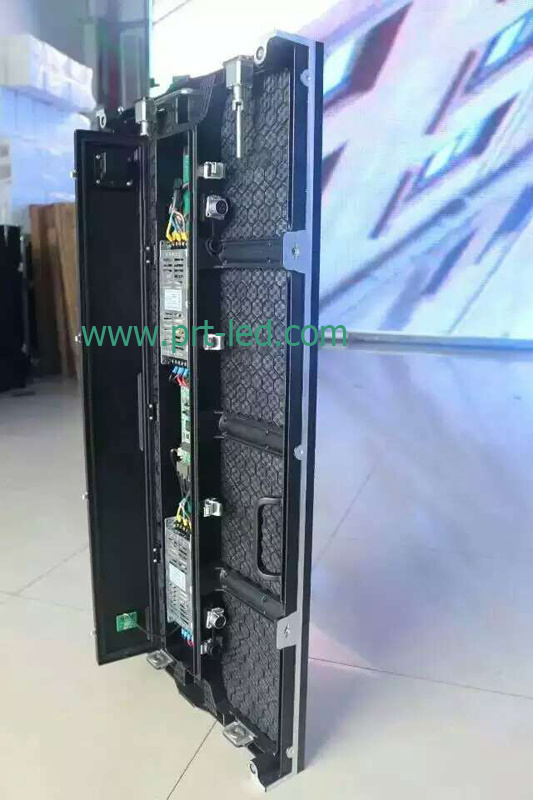

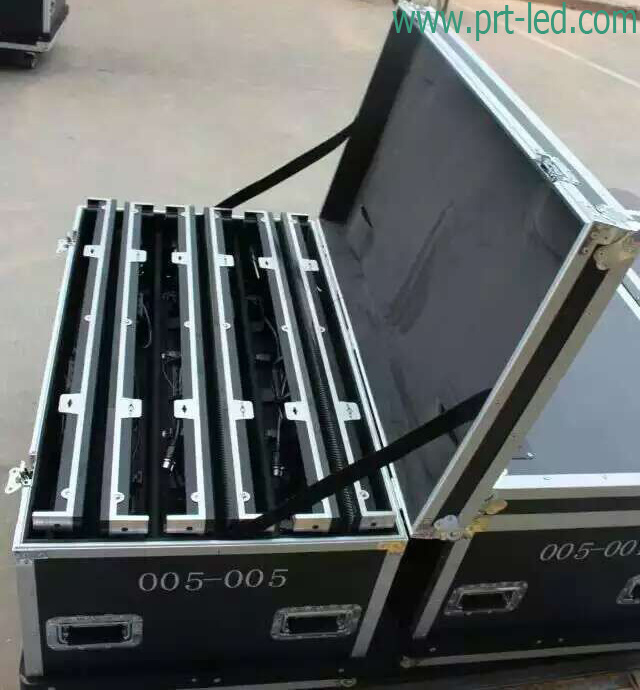

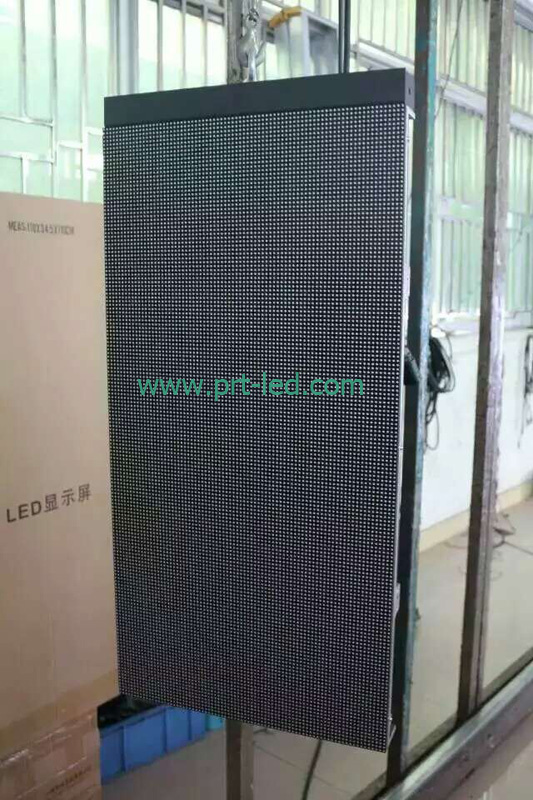

9. This cabinet design also suit for outdoor P8.928,P6.25,P5.95,P4.81 and P3.91More cabinet pictures for reference as below:
| Outdoor P6.25 LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 6.25 |
| Pixel Density | Dots/sq.m | 25600 |
| Pixel Configuration |
| SMD3535 |
| Cabinet Resolution | dots | 80×160 |
| Refresh Rate | Hz | ≥1920 |
| View Angle(H/V) | ° | 140/140 |
| Brightness | nits | ≥5500 |
| Gray Scale | Bit | 16 |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 900/300 |
| Input Voltage(AC) | V | 110~220 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 500×1000x75 |
| Cabinet Material |
| Die-casting Aluminum |
| Cabinet Weight | Kg | 14 |
| Module Size(W×H) | mm | 250×250 |
| Environment |
| Operation Temperature | ºC | -20~+50 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/10 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R& D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
