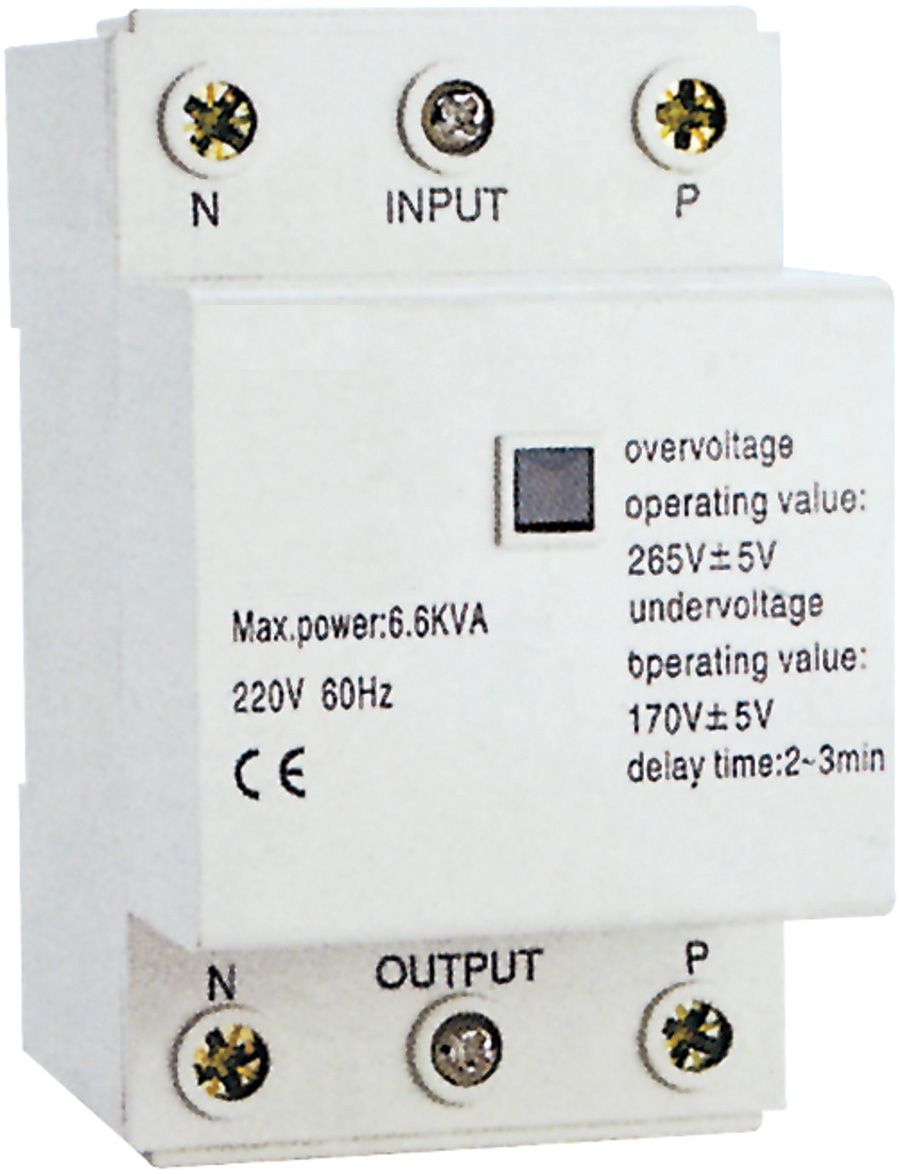

Over-Voltage/Under-Voltage Delay Protector (EL15 Series)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
Product Specifications
| Prod Model: |
EL15 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Poles: |
1p,2p,3p,4p |
| Electric Ratings: |
230/400V, AC50/60Hz |
| Response Time: |
Less Than 25ms |
| Width: |
17.5mm Per Pole |
| Pollution Grade: |
II |
| Type: |
Power Source Arrester |
| Structure: |
Valve Type Arrester |
| Installation: |
Parallel Arrester |
| Brand: |
Eleco |
Product Description
Application1.Rated AC voltage 220V and frequency 50Hz
2.Passing Max Current:20A,32A,40A(resistance)
3.Max.Loading power:4.4KVA,6.6KVA,8.8KVA
4.Over-voltage action cut-off value:260-270VAC
5.Over-voltage recover value:248±5VAC
6.Under-voltage action cur-off value:180±5VAC
7.Under-voltage recovery value:II:170±5VAC
8.Electricity transmitting delay after cur-off:2~3minutes
9.Action delayed time:1~6 seconds
10.Self power consumption≤2W
11.Electric machinery life≥10
12.Dimension:80×50×66.5mm(Length×Width×Height)| Number of Poles | 1p,2p,3p,4p |
| Electric Ratings | 230/400V, AC50/60Hz |
| Response Time | Less Than 25ms |
| Width | 17.5mm Per Pole |
| Pollution Grade | II |

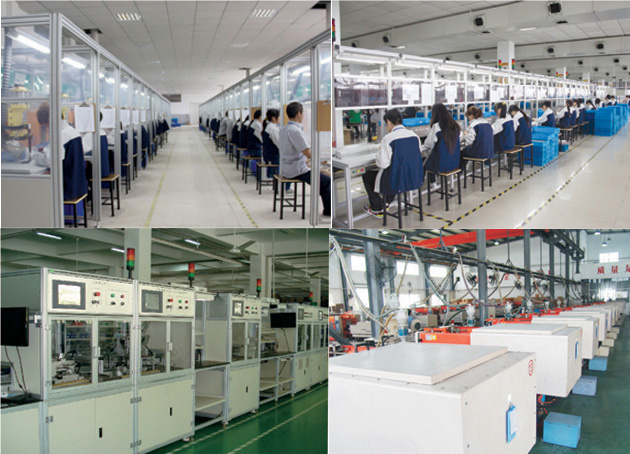

About usELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
