Overland Pipe Belt Conveyor Systems/ Pipe Conveyor Equipment/ Pipe Transporting Machinery
| Price: |
US $ 500-1000/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
300/Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |

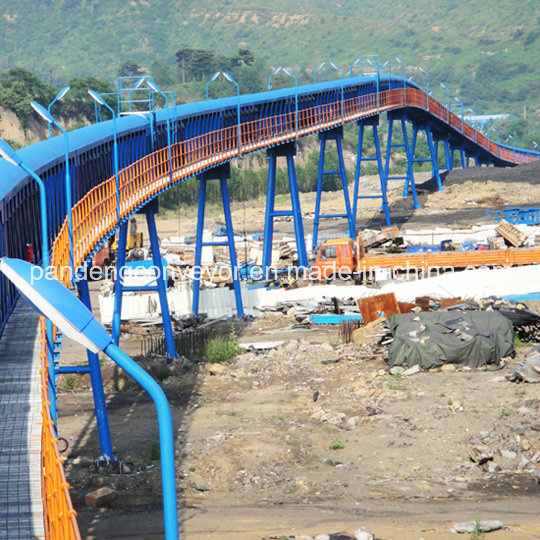

Heavy duty overland/pipe belt conveyor systems for bulk materials handling
Features:1,The pipe belt conveyor (hereinafter referred to as tubular belt conveyor) is a new type of conveying equipment for bulk materials researched and developed by our company through absorbing advanced technology from abroad. Its design and manufacture conform to JB/T10380-2002 industrial standard.
2, The conveying system can be a single machine or combination of multiple machines, which is used to convey various powdery, granular and lumpy materials with bulk density of generally less than 2.5t/m3.
3,The applicable operating temperature of the tubular belt conveyor is generally -25ºC~+40ºC, for special environment which requires heat resistance, cold resistance, waterproofing, corrosion protection, explosion protection, fire retardance, etc., special conveyor belt can be adopted, in such cases, the operating temperature can reach -35ºC~+200ºC. Application:It
can be widely used in such industries as of coal, electric power, chemical engineering, metallurgy, machinery, grains, light industry, harbor and building materials, etc.Main technical parametersmm
Tube dia. | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 850 |
m/s
Belt speed | (m3/h) Conveyingcapacity |
| 0.8 | 17 | 38 | 67 | 118 | 141 |
|
|
|
|
|
|
| 1.0 | 21 | 48 | 83 | 148 | 176 | 238 |
|
|
|
|
|
| 1.25 | 27 | 59 | 104 | 185 | 218 | 297 | 486 | 698 |
|
|
|
| 1.6 | 34 | 76 | 133 | 236 | 282 | 380 | 622 | 893 | 1244 | 1616 | 2327 |
| 2.0 | 42 | 95 | 166 | 296 | 352 | 475 | 777 | 1116 | 1555 | 2022 | 2909 |
| 2.5 |
| 119 | 208 | 370 | 441 | 594 | 972 | 1395 | 1944 | 2528 | 3636 |
| 3.15 |
|
|
| 464 | 556 | 748 | 1224 | 1758 | 2449 | 3185 | 4581 |
| 4.0 |
|
|
|
| 705 | 950 | 1555 | 2232 | 3110 | 4044 | 5818 |
| 4.5 |
|
|
|
|
|
| 1749 | 2511 | 3499 | 4536 | 6545 |
| 5.0 |
|
|
|
|
|
| 1944 | 2790 | 3888 | 5056 | 7272 |
Note: the parameters in this table are numerical values when the fill factor is 75%.

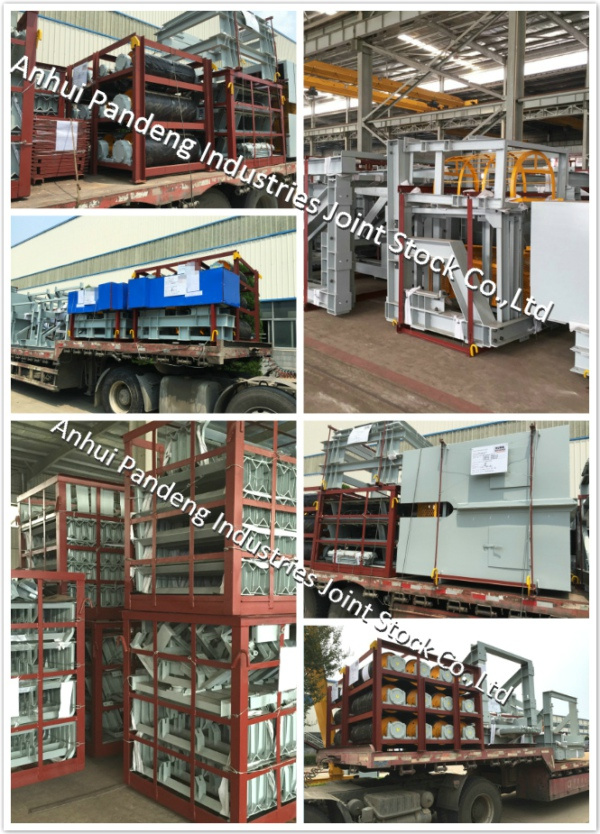

Packing Detail:1.Water-proof nylon wrapping package
2.Steel frame box
3. As requestPackage for reference:

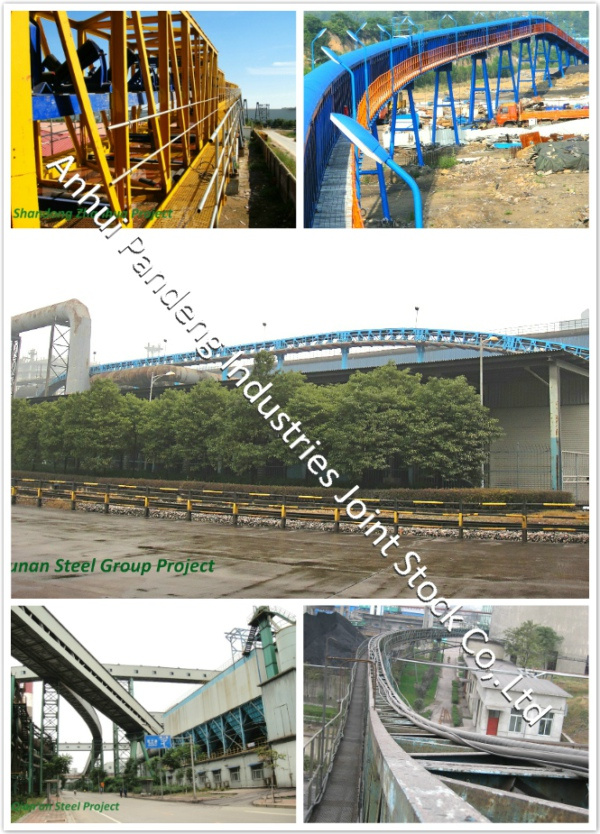

Projects for reference:
| Prod Model: |
DG-850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Bulk Materials Handling |
| Pipe Diameter: |
100-850mm |
| Perfomance Standard: |
Dn,Cema,ASTM,Sha,etc |
| Applications: |
Coal, Electric Power, Chemical Engineering, Metall |
| MOQ: |
1 Meter |
| Terms Of Shipment: |
by Sea |
| Surface Processing: |
Painted or Galvanized |
| Other Material: |
Stainless Steel |
Anhui Pandeng Industries Joint Stock Co., Ltd belongs to Anhui Pandeng Group established since 1974, which has total capital of 106000000USD, registered capital of 58000000USD, catches the size of 463500 square meters, owns over 1000 workers. Group owns three famous brand of "PANDENG", "OUNA", "KINSON".
We are specialized in developing, designing, manufacturing bulk material handling system, like belt conveyor, pipe conveyor, bucket elevator, screw conveyor, conveyor roller, idler, pulley, hydraulic coupling, backstop, various kinds of conveyor belt etc nearly all products related to the conveyors. The products mainly applied to mining, metallurgy, power generation, heating, sea port, grain, chemical etc industries.
Our group has 5 subsidiary corporation, owns over 100 patents. Two sub-companies have attained ISO9001: 2008 Quality Management System Certificate, MA certified enterprises, Member of China Heavy Machinery Industry Association, Bank AAA credit class enterprise, China top 10 conveying machinery industries etc. During 40years, we served many Global 500 companies, such as SINOPEC, CNPC, APP, SHENHUA GROUP CORP, SGCC, Conch Group, CHALCO, Baosteel, etc.
Professional design, developing and manufacturing, installation&commissioning, after-service of Anhui Pandeng Group has helped us to win the China famous Bulk Material Handling system leading position. We also built stable and good cooperation relationship with over 30 Design&Research Institutes including Beijing lifting conveying machinery design&research institute.
Welcome to visit Anhui Pandeng Group!
