Hangzhou Fivelake Electronics Co., Ltd. >> P10 Outdoor Green Color LED Message Display

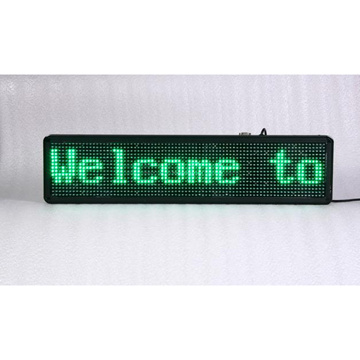

P10 Outdoor Green Color LED Message Display

P10 Outdoor Green Color LED Message Display
Supplier: Hangzhou Fivelake Electronics Co., Ltd.
Price: US $ 125-150/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: NL-O-10
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Outdoor and Semioutdoor
View Distance: >5m
LED Type: 5mm DIP LED
View Angle: 30/70
Display Resolution: 16DOT X 80DOT
Display Size: 16cm High X 80cm Wide
Display Type: LED Dot Matrix Display
Tube Chip Color: Single Color
IP Rating: IP43
Pixel Pitch: 10mm
Display Function: Image & Text Display
Scanning Mode: 1/16 Scan
Certification: UL
Pixel Density: 10000 dot / m²
Average Power Consumption: 300W / m²
Pixel Configuration: Red,Green,White,Orange

Product Description

1) Attractive animations for each text
2) Low power consumption (below 10W)
3) Single color LED moving message display and tri-color LED moving message
Display (red, green and yellow)
4) Single line, double line or multi line
5) PC interface (rs-232)
6) Easy to use windows based software or remote controller to enter messages
7) Non volatile memory (restores message even after power failure)
8) Can store up to 1000 characters
9) Size can be designed according to your requirements

Applications:
1) Shops: Production and promotion information display
2) Office: Notice board
3) Highway: Road direction, temperature information
4) Advertisement in banks, hotels
5) Information for railway, bus stations.
Product Content
Display type
φ5 (1G )
Pixel pitch 10 mm
Pixel dot 1Green
Density of pixel 10000 dots/m2
Display pixel 80 x 16
Optimum viewing distance 6 --100 m
Optimum viewing angle 120
Weight( KG/m2) 35
Environment  temperature -20 °C  ---50 °C
Max. power consumption 700W/M2
Driving   mode 1/4Scan
Refresh  frequency ≥120 hz/s
Computer system WIN98   \  WINXP  \  WIN2000
Work voltage 220±15% or 110±15%
Screen lifetime >100000hours
Out-of-control point <0.0002

Who We Are:

Hangzhou Fivelake Electronics Co., Ltd is a leading manufacturer of alpha numeric LED display module and LED display in China East. It is established in 1997 by a group of professionals who are the earliest people dealing with semiconductor business in Hangzhou, China. Due to the business extension and corporation size enlarging, we are divided into two companies for offering better service to our customers, one is Hangzhou Fivelake Electronics Co., Ltd and the other is Hangzhou Newlake Electronics Co., Ltd, both are owned by the same administrative team. Fivelake is specialized in LED alpha numeric display field while Newlake is specialized in big LED display such as bus LED display, bus countdown sign for bus station, digital LED sign for gas station.

Our Production Lines:

-- Alpha numeric display module, including 7 segment LED display, LED matrix, custom dash LED display module. Custom-design is available for special application as well.

-- Gas LED Sign for gas station price display.

-- Bus LED Display, countdown LED sign for bus station, bus route display.

Why Choose Us:

-- We are the one of originated company of China LED council.

-- We have been in design and production of LED related products for over 16 years, with abundant experience in this field.

-- A dedicated and professional team will be your backup on hardware construction, software integration, a whole solution will be offered to you according to your application purpose.

-- Strict checkout process is able to ensure quality products completed with no defect.

-- Our products have exported to most Countries in the world, including Eroupe, America, Southeast Asia and Africa. We have built a long term business relationship with a France company who distributes our crossing LED display and gas price LED display in Europe since 2006.

-- We are always developing new technology and new products to meet the exact requirement of clientele both domestic and abroad.
