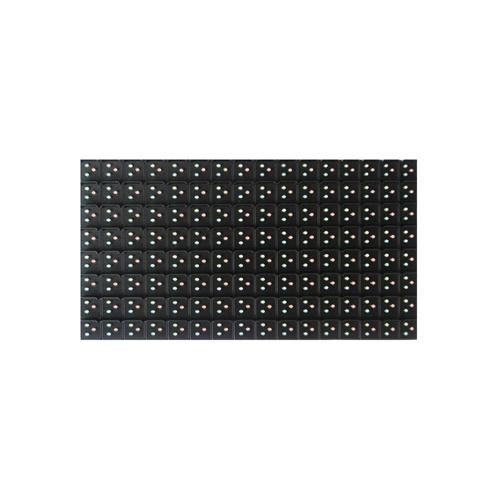

P20 Full Color Outdoor Module LED Display with Cheap Cost
Product Specifications
| Prod Model: |
P20-DIP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color Of LEDs: |
DIP346 |
| Module Size: |
320X320mm |
| Module Resolution: |
16X16dots |
| Warranty: |
3years |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
20mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
220W / m² |
| Scanning Mode: |
Static Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| Pixel Density: |
2500dots/Sq.M |
Product Description
P20 Full Color Outdoor Module LED Display with cheap cost
1) New design PCB board confirm the light weight and low power consumption
2.) Unique lighting distribution curve, ensure visual effect is perfect seeing from different angle
3) High brightness, High definition, Long view distance, smooth and good quality vision
4) Dot to dot maintain, easy and quick maintenance, save maintenance cost
5) Good waterproof IP65,suit to any weathers.raining,sunny,fogging
6) 3 years quality warranty, meet the international standard of CE,Rohs,FCC etc.
7) Can be assembled with cabinets or on rackes with magnets
| Outdoor P20 Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 20.0 |
| Pixel Density | Dots/sq.m | 2500 |
| Pixel Configuration |
| DIP346 |
| Module Resolution | dots | 16×16 |
| Refresh Rate | Hz | ≥3000 |
| View Angle(H/V) | ° | 100/45 |
| Brightness | nits | ≥7000 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 700/300 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 1280χ960 |
| Cabinet Material |
| Iron |
| Cabinet Weight | Kg | 60kgs |
| Module Size(W×H) | mm | 320×320 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| Static Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
PRT OPTOELECTRONIC Co., Ltd is located in Bao'an District of Shenzhen city, specializing in R& D, manufacturing Full Color LED display for outdoor and indoor advertising with many different pixel pitches, and many different design, owned 5 new-automatic production lines and advanced test equipments to control quality ensure high quality. And got the international standard certificates of ISO9001-2000 and 14001, CE, CCC, FCC, RoHS, gurantee high quality!
Our main products include Outdoor LED display, Indoor LED display, Rental LED Display, Stage backbround LED screen, LED Curtain, Sport stadium perimeter LED screen, Mobile LED screen, LED display modules etc. Also supply LED professional stage lights based as customer's requests.
As the growing, we have more than 150 staffs, mostly with rich working experience in this area for many years, and several professional engineers for production and after sale service.
We got a strong team for exporting business, members with rich exporting experience over ten years, to introduce better solutions based on customers' requirements professionally, and guarantee the products to be shipped out in time and smoothly, so we can provide our clients high quality products with competitive prices and excellent service, and have obtained a good reputation from our customers.
Our company's operating philosophy, "Quality is everything, Service is the key to success ", because our purpose is to let business done easily and trustingly, to save customer's searching time and purchase cost, solve problem on customer's position, to let everything to be "PERFECT"(abbreviated to"PRT" )!
PRT is a developing company, need hard work of our staffs, also need your large positive support, let us do business and develop together, "sincere cooperation, mutual benefit and common development" is our principle.
Please send your e-mail to us and call us directly, we will answer you as soon as we can.
Business Type: Manufacturer/Factory
International Commercial Terms: FOB, CFR, CIF, EXW
Terms of Payment: LC, T/T, PayPal, Western Union, Money Gram
Average Lead Time: Peak season lead time: within 15 workdaysOff season lead time: within 15 workdays
Number of Foreign Trading Staff: 4~10 People
Export Year: 2011-02-20
Export Percentage: 71%~90%
Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Export Mode: Exportation via agency
Factory Address: A5-A708,West Song Bai Road,Shiyan Town Bao'an District
R&D Capacity: OEM, Own Brand(PRT)
No. of R&D Staff: 5-10 People
No. of Production Lines: 5
Annual Output Value: US$10 Million - US$50 Million
