Product Specifications
Prod Model: |
P5.68 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED Style: |
SMD3528 |
Moduel Size: |
250X250mm |
Cabinet Size: |
500X1000mm |
Cabinet Material: |
Aluminum Profile |
Display Type: |
LED Video Display |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Certification: |
FCC |
Pixel Configuration: |
1R,1G,1B |
Application: |
Shopping Guide |
IP Rating: |
IP43 |
System Operating Platform: |
WIN XP |
Scanning Mode: |
1/11 |
Pixel Pitch: |
5.68mm |
Pixel Density: |
30976dots/Sq.M |
Product Description

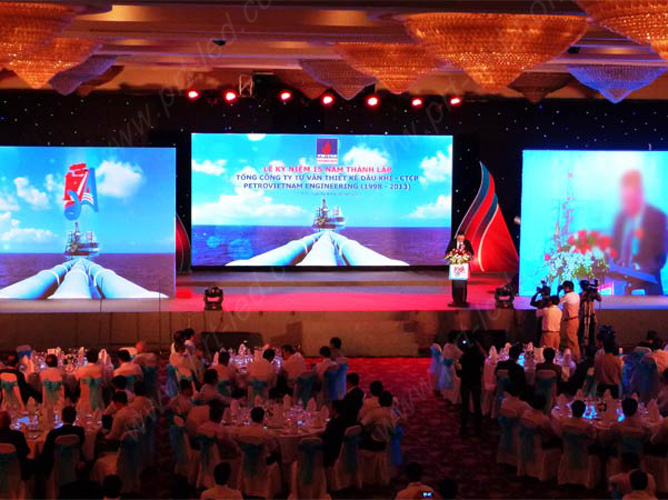

P5.68 Large LED Indoor Display for stage background with aluminum panel size of 500x1000mm
Product Features:
1. Stage design led screen,available for various applications,such as tile screen,sky screen,indoor fixed screen,rental screen,abnormal shape screen
2. Made with Aluminum material, light and thin, less than 70mm thickness
3. 500mm cabinet is pieced together easily with 1000mm,helpful for stage design
4. Unique muting and fan free design seems much more environment
5. Exquisite and tastful appearance due to structural wire layout
6. Back installation for drivers,benefical to maintenance
The configuration design is available for P4.81, P5.68, P3.91,P6.25
Indoor P5.68 Full Color LED Display Main Parameters |
Visual Characteristics | Unit | Value |
Pixel Pitch | mm | 5.68 |
Pixel Density | Dots/sq.m | 30976 |
Pixel Configuration |
| SMD3528 |
Cabinet Resolution | dots | 88×176 |
Refresh Rate | Hz | ≥1200 |
View Angle(H/V) | ° | 120/120 |
Brightness | nits | ≥1500 |
Gray Scale | Bit | 687Million |
IP Rating |
| 43 |
Power Consumption(Max/Avg) | W/sq.m | 800/500 |
Input Voltage(AC) | V | 110~240 |
Modular Characteristics |
Cabinet Size(W×H×D) | mm | 500×1000×70 |
Cabinet Material |
| Aluminum |
Cabinet Weight | Kg | 12.5 |
Module Size(W×H) | mm | 250×250 |
Environment |
Operation Temperature | ºC | -20~+40 |
Operating Humidity |
| 10%~90% |
Driving Mode |
| 1/11 Scan |
Control Distance | Cat 5E <100m,Single mode fiber<10Km |
