Shenzhen HTS Optoelectronic Technology Co., Ltd. >> P5 Fixed LED Display for Indoor Environment

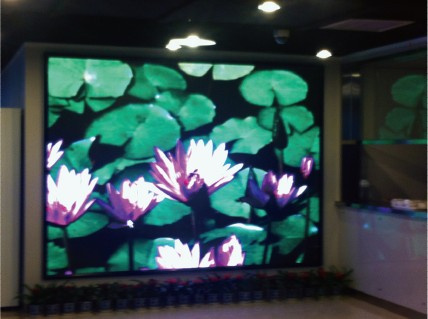

P5 Fixed LED Display for Indoor Environment

Name: P5 Fixed LED Display for Indoor Environment
Brand: China-Manufacturer-Directory.com
SKU: 676014561
Availability: InStock
Rating: 4.5 (126 reviews)

Supplier:	Shenzhen HTS Optoelectronic Technology Co., Ltd.
Price:	US $ 1100-1250/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIF,CIP

Product Specifications

Prod Model:	P5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Application:	Meetings
Pixel Pitch:	5mm
IP Rating:	IP43
Certification:	FCC, CB
Pixel Density:	40,000 dots / m²
System Operating Platform:	WIN XP
Pixel Configuration:	SMD3528

Product Description

Features: 1. Low noise, good cooling, low power consumption, reliable 2. Keep its beatiful pictures and brightness after using for a long time 3. Energy-saving design, rich colors, smooth pictures and good conformity 4. Wide view angle, it keeps its real and wonderful colors from different angles 5. High refresh rate, high gray scale, no flickering, can be used for live TV show Photos LED System Diagram

NO.	Item	Parameter
1	Model	P5
2	Pixel pitch	5mm
3	Pixel configuration	1R1G1B
4	LED type	SMD3528
5	Module size	160*160mm
6	Module resolution	32*32
7	Cabinet resolution	128*128
8	Cabinet size	640*640mm
9	Density	40000dots/m2
10	Brightness	1800NIT
11	Scan method	1/8
12	Best view distance	≥5m
13	Max. power consumption	750W/m2
14	Ave. power consumption	380W/m2
15	Weight	45kg/m2
16	Cabinet weight	20kg
19	Refresh rate	960Hz
17	Grey scale	8192 levels
18	Colors	0.54 trillion
20	View angle	Horizontal: 120°, Vertical: 120°
21	Color temperature	6500K
22	Frame frequency	≥60Hz
23	Out of control pixel rate	<1/10000
24	MTBF	>5000 hours
25	Lifespan	50000 hours
26	Control mode	Synchronous display with control PC by DVI
27	Working voltage	AC 100/200v 50-60Hz
28	Control distance	Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km
29	Operation temperature	-20 to +60
30	Operation Humdity	10% to 80%
31	Protection level	IP40 Front, IP21 rear

Shenzhen HTS Optoelectronic Technology Co., Ltd is a Shenzhen-located high-Tech enterprise which specializes in the R&D, manufacturing, salesand serviceof LED display and LED lighting products. Thanksto the human-base management policy, advanced production machines and test equipments as well as rich options of raw material resource, HTS has developed a professionalplatform to become a modern enterprise. According to the demand of the market HTS has developed a Full product range through industry-chained opetatio model and HTS aims to rank. In the front line of the LEDdisplay industry. Of professional designers and software and hardware systems personnel, creative and unique copy talent.

HTS is located in Dalang, Longhua, Baoan District, which enjoys a group of influential experts in LED industry, a professional R&D team and highly-skilled manufacturing staff. It occupies more than 6000 square-meter free-dust and static-proof production area which covers several automated assembling lines, many advanced production machines and optimized testing equipments. Aim to the high level market, HTS insists developing MID and high-end products, serves the customers as the center of our work, strives for survival on the basis of quality, employs the managing idea of searching development by integrity, we manage to win the customers and the market by our sincerest heart, most advanced technology, best-quality products and most satisfactory service.
