Product Specifications
| Prod Model: |
P50-70-E Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
199*98*39mm |
| Working Temp.: |
-10-+50 Degree |
| Input Voltage: |
220V |
| Voltage Regulating Mode: |
Width Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Warranty: |
>2 Years |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
ISO |
| Energy Transmission: |
Single / Dual / Triple/Quad |
| Output Type: |
Single / Dual / Triple/Quad |
| Output Power: |
100-120W |
| Brand: |
Pengtu |
Product Description

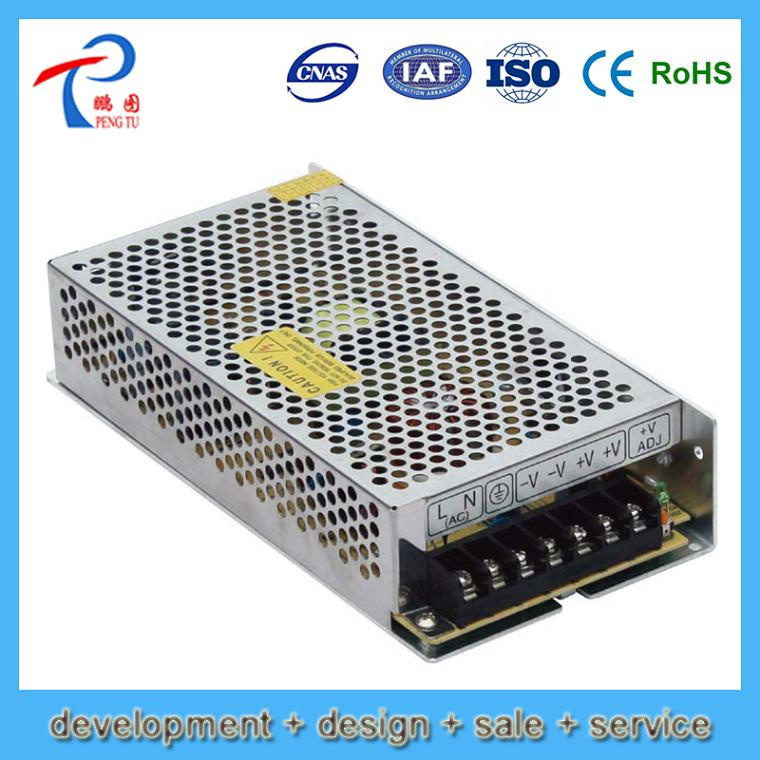

P50-70-D Series 50-70W AC/DC Switching Power Supply
FeaturesL Output overload, overvoltage, short circuit protection; Overtemperature protection for option
L With reference to the international safety regulation: UL/TUV/CB/CE
L Cooling by free air convection
L 100% full load burn-in test
L Three years warranty
Input CharacteristicL Inputvoltage range...176 ~ 264 VAC/ 85~264 VAC/ 210-370 VAC
L Input Frequency...47~63Hz
L Inrush current...Cold start 40A/230VAC
L Leakage current...<0.5mA/240VAC
Output CharacteristicL Rated Power...100-120W
L Voltage adj. Range...± 10% (Rated output voltage)
L Line Regulation...<0.5%
L Set up time...… ≤ 50ms/230VAC (Full load)
L Hold up time...… ≥ 20ms/230VAC (Full load)
General CharacteristicL Overload protection: Above 105% rated output power/ Automatically recovers after fault conditions removed
L Overvoltage protection …Above 110% rated output voltage/ Automatically recovers after fault conditions removed
L Isolation characteristic … I/P-O/P: 1.5KVAC 1Min, I/P-FG: 1.5KVAC 1Min, O/P-FG: 0.5KVAC 1Min
L Anti-vibratility...10-500Hz, 5G 10min/ cycle, period for 60min, each axes
L Safety Regulation...Refer to UL60950-1, TUV EN60950-1
L EMC standard...Refer to EN55022(CISPR22) class B. EN-61000-4-2, 3, 4, 5, 6, 8, 11
L Environmental Characteristic
Working temperature...-10-+50º C
Storage temperature...-20~ +85º C
L Size...199*98*39mm

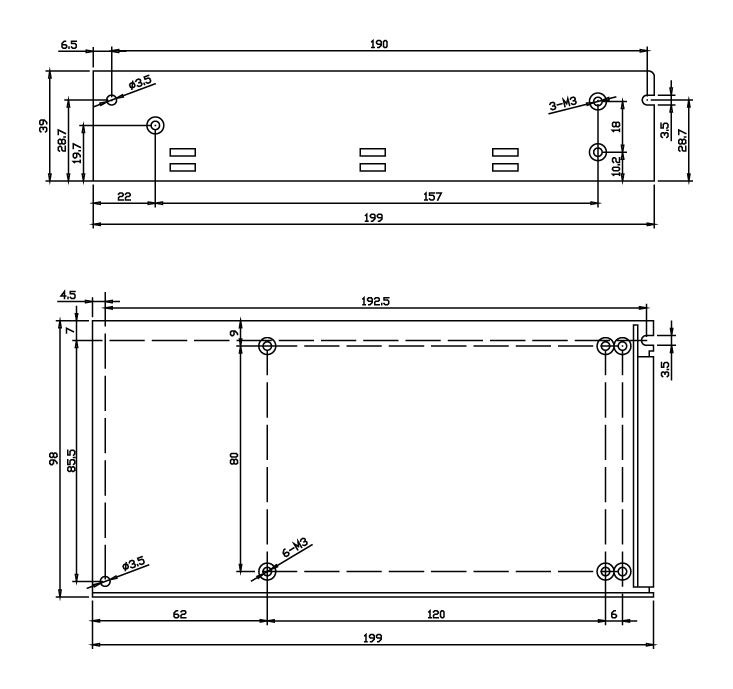

Mechanical drawing and pin definition
Company informationName of Co.:Nanjing Pengtu Power Supply Co.,LtdAddress:NO.16 Songgang Road Jiangning District, Nanjing, ChinaTel. No.:025-52636417Fax No.:025-52636195
Our service
1.Your inquiry will be reply within 24hours
2.Well-trained and experienced staffs to answer all your inquiries in English
3.We have strictly management on the production and quality control
4.We have our own factory and professional engineers team to help you to resolve the prombles
5.We are greatly to accept the sample order for testing our quality ,serive and your market.
Warranty term
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide free new products or components based on the proof-documents.
2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, we will provide paid service.
If you want to know more information ,pls feel free to contact us. Any feedback from you will be given the prompt attention and reply! | Model | Output Lines | Power (W) | Output V.(V) | Output Curr.(A) | Ripple (mv) | Efficieency (%) |
| P100D-A-E | Dual | 100 | 5 | 2 ~ 15 | 100 | 74 |
| (5V/12V) | 12 | 0.02 ~ 5 | 120 |
| P100D-B-E | 5 | 2 ~ 15 | 100 | 75 |
| (5V/15V) | 15 | 0.02 ~ 4 | 150 |
| P100D-C-E | 5 | 2 ~ 15 | 100 | 75 |
| (5V/24V) | 24 | 0.02 ~ 3 | 200 |
| P100T-A-E (5V/12V/-12V) | Triple | 5 | 2 ~ 12 | 100 | 73 |
| 12 | 0.02 ~ 2.5 | 120 |
| -12 | 0.02 ~ 1.5 | 120 |
| P100T-B-E (5V/15V/-15V) | 5 | 2 ~ 12 | 100 | 74 |
| 15 | 0.02 ~ 2.5 | 150 |
| -15 | 0.02 ~ 1.5 | 150 |
| P100Q-A-E (5V/24V/12V/-12V) | Quad | 5 | 1.2 ~ 6 | 100 | 81 |
| 24 | 0.02 ~ 2 | 200 |
| 12 | 0.02 ~ 1 | 120 |
| -12 | 0.02 ~ 0.5 | 120 |
| P100Q-B-E (5V/24V/15V/-15V) | 5 | 1.2 ~ 6 | 100 | 81 |
| 24 | 0.02 ~ 2 | 200 |
| 15 | 0.02 ~ 1 | 150 |
| -15 | 0.02 ~ 0.5 | 150 |
| P120S05-E | Single | 120 | 5 | 20 | 50 | 79 |
| P120S7.5-E | 7.5 | 16 | 50 | 80 |
| P120S12-E | 12 | 10 | 100 | 82 |
| P120S13.8-E | 13.8 | 8.7 | 100 | 83 |
| P120S15-E | 15 | 8 | 120 | 83 |
| P120S24-E | 24 | 5 | 150 | 84 |
| P120S48-E | 48 | 2.5 | 150 | 84
|
