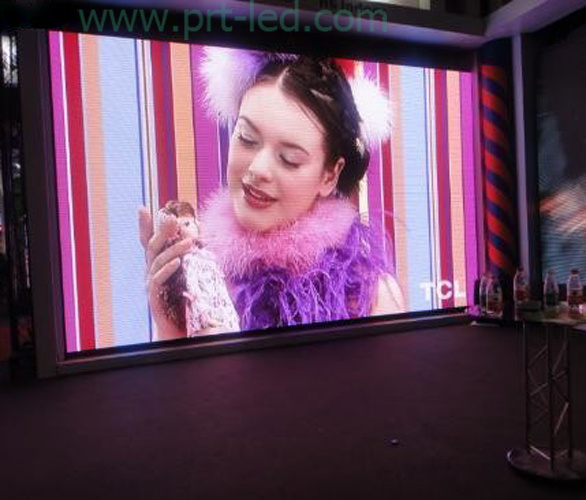

P7.62 LED Moving Message Display
Product Specifications
| Prod Model: |
P7.62 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size: |
732X732mm |
| Cabinet Material: |
Aluminum Alloy |
| Module Size: |
244X122mm |
| Module Resolution: |
32X16dots |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
FCC |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
7.62mm |
| Pixel Density: |
17,222 dots / m² |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| System Operating Platform: |
Win XP,Win 2000,Nt |
Product Description
P7.62 LED Moving Message Display with slim panels
Product Features:
1. Made with aluminum alloy , very light weight,can be portable
2. Super thin cabinet size of 732× 732× 60mm
3. Rental design, easy to install and dismantle without any tools
4. Seamless splicing,No funs, no noise
5. High brightness, good display performance and cost performance
6. Wide view angle, high definition and good uniformity
7. Packed with flightcase or wooden case as request
9. Widely used in public advertising, shopping mall, theatre, live show, live meeting, banquet, stage background etc.
P7.62 Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 7.62 |
| Pixel Density | Dots/sq.m | 17222 |
| Pixel Configuration |
| SMD3528 |
| Cabinet Resolution | dots | 96×96 |
| Refresh Rate | Hz | ≥1200 |
| View Angle(H/V) | ° | 150/120 |
| Brightness | nits | ≥2000 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 43 |
| Power Consumption(Max/Avg) | W/sq.m | 1200/500 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 732×732 |
| Cabinet Material |
| Aluminum alloy |
| Cabinet Weight | Kg | 8.0 |
| Module Size(W×H) | mm | 244×122 |
| Environment |
| Operation Temperature | ºC | -20~+50 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/8 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
