P9.375 Curved LED Screen Display with Full Color
Product Specifications
| Prod Model: |
p3.975 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Type: |
SMD3528 |
| Module Size: |
300X150mm |
| Transparency: |
25% |
| IP Degree: |
65 |
| Module Unit Demension: |
300X900mm |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
CCC |
| Pixel Configuration: |
1R,1G,1B |
| Application: |
Shopping Guide |
| Pixel Pitch: |
9.375mm |
| Pixel Density: |
11377dots/Sq.M |
| IP Rating: |
IP65 |
| System Operating Platform: |
Window 7,XP |
Product Description
P9.375 Curved LED Screen Display with full color, good for stage background
Product Advantages:
1. Transparent design, light transmittance up to 25%, good lighting and wind transparent, good heat dissipation,special design for stage background
2. Super slim with minimum thickness of 7mm and maximum thickness of 17mm
3.Ligh weight, single unit weight only with 1.85kgs
4.Adopt of metal connection component, fastness and durable
5.Easy bend for defferent shapes,like S, Circle, Curve etc, also can Foldable from Horizontal and Vertical
6.Streamline design and beautiful appearance
7.Good waterproof IP65, can used for outdoor environment
8.Single module design, can dismantle by single module, fast and easy to maintain
9.High definition,high gray scale, high contrast ratio and refresh rate, meet the request of HD vidicon

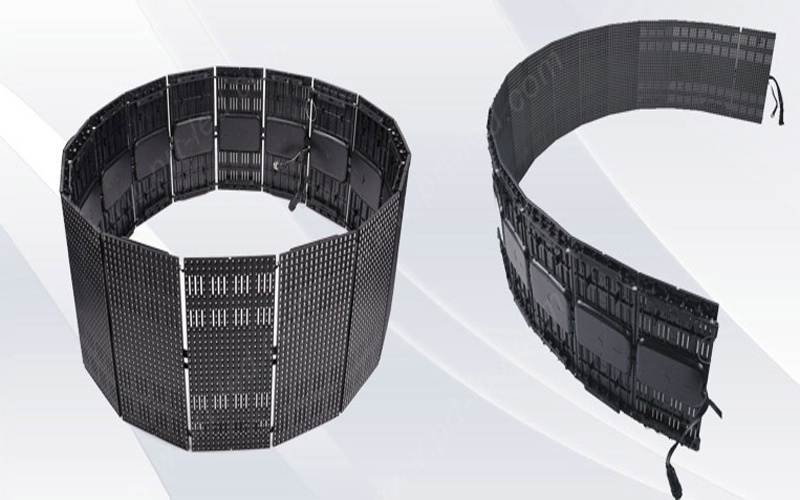

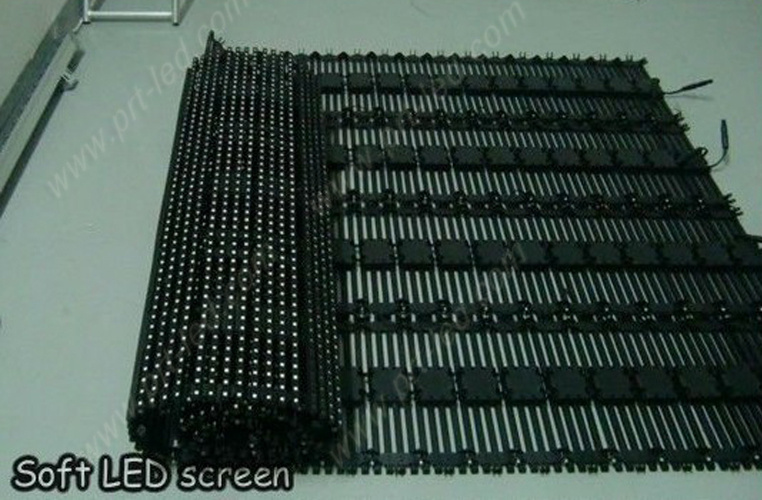

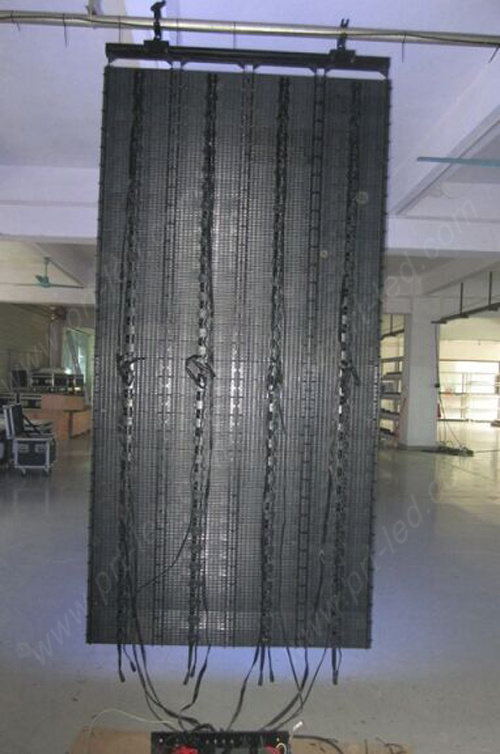

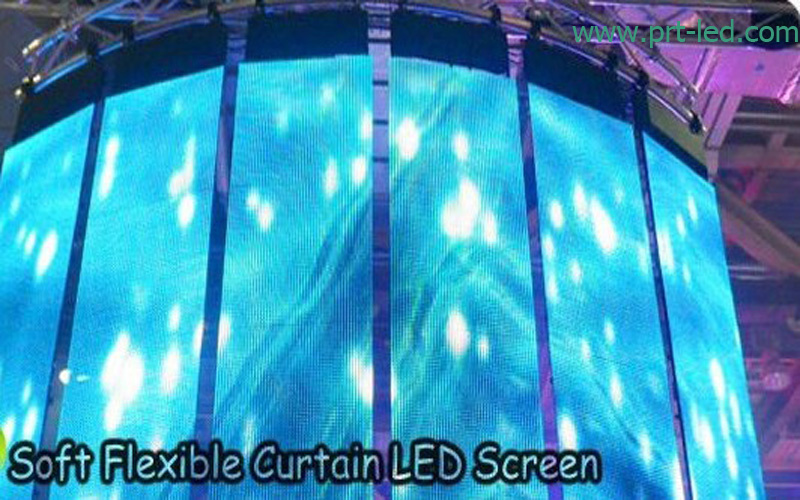

More pictures for reference:
Main parameter as below:| Specificaion: |
| Type Number | SLOR9375 | Unit module composition | L1×H6module |
| Pixel pitch(MM) | 9.375 | Unit module pixel | L32×H96dot |
| LED Standard | SMD3528 | Max.power consumption | 135W |
| Pixel composition | 3 IN 1 | Module material | PC |
| Pixel density(dot/m2) | 11377 | Protection level | IP 65 |
| Demensions(mm) | L300*W150 | Viewing angle | 110° |
| Module Power | 25W | Working temperature | -20ºC~+50ºC |
| Module resolution(L×W) | 32*16 | Working humidity | 10%~90% RH |
| Scan mode | 1/8 | Life span | ≥30,000 hours |
| Grey | 65536 | Working voltage | AC 220 V / (110V) ±15% , 47~63 HZ |
| Refresh rate(Hz) | ≥2000 | Signal transfer | Lan cable |
| Brightness (CD/m2) | 2000 | Control system | LED FLASH Computer Control System |
| Best viewing distance(M) | 9.5 | Computer platform | Windows XP,Windows 7 |
| Unit module dimension | L300×H900mm | Video Sources available | DVD, VCD, VCR, TV, camera with PAL/NSTC |
| Control case size | 535×200×150mm | Control pixel | L128×H192dot/L64×H384dot |
| Control area dimension(mm) | L4×H2unit/L2×H4unit | Control case max.power | 1200W |
| Control area dimension(mm) | W1200×H1800MM/W600×H3600MM |
|
|
| Effetive control distance | ≤ 100 M (by LAN) , ≥ 100 M (by fiber optic with multi-module or single module) |
