Packaging Production Machinery (Passed CE)

Product Specifications

Prod Model:	ZK-660A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Process:	Finishing Process Machine
Usage:	Packing Paper Machine
Computerized:	Yes
Certification:	CE
Automatic Grade:	Automatic
Application:	Cosmetics
Driven Type:	Mechanical
Material Type:	Solid
Type:	Paper Folding Machine
Packaging Type:	Box Formng Machine
Packaging Material:	Paper,Leather,Cardboard

Product Description

Independent Research and Development, the First of Its Kind in China of rigid box making machine
Our production is the most advanced equipment of making the rigid set-up box (such as shoe-box, shirt box, underwear box, gift box, food box, hardware box etc). It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping, box coming out in one process. The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 50 times.

We Offer the high quality products and provide the excellent service.

The warranty period is 1 year, in which we can free provide the damaged parts, not including the user man-made damaged parts. After receiving the users' service request, we will dispatch the technicians timely in 24 hours in the province, in 70 hours out the province to give your a satisfied solutions and provide a lifelong service.
We will dispatch the technicians to your company providing the spot installation, adjusting and training the operators. We have built up the sales and service network in the nation, so we can regular or nonscheduled visit the users and give a comprehensive and sincere service.

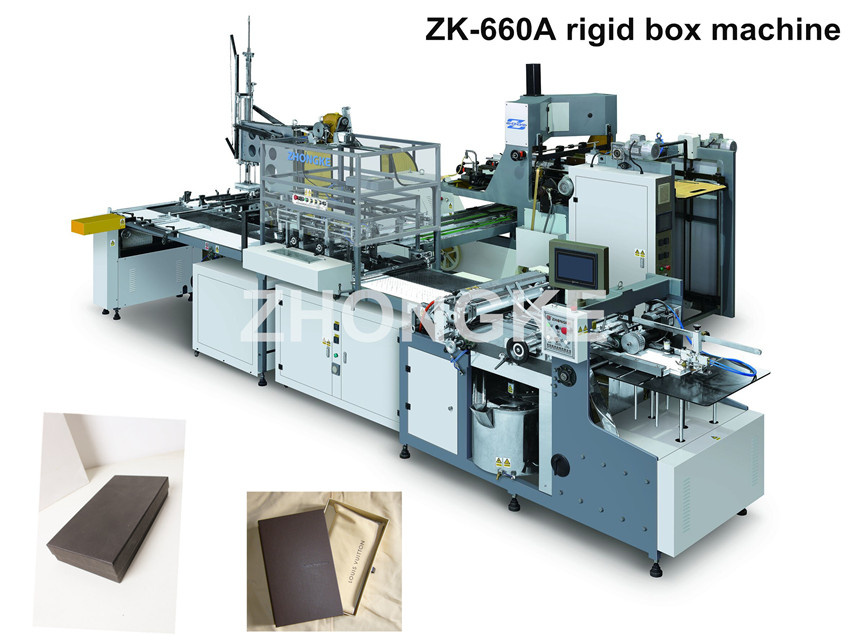

Full Automatic Rigid Box Making Machinery
Model: ZK-660A


General Introduction:
Zhongke is the first factory to produce Full-Automatic Rigid Box Making Machinery in China. Our machine is suitable to produce the cardboard or chipboard boxes, such as shoe box, elegant gift box, Shirt box, strap boxes, puzzle game box and any two pieces set-up box.


Product Introduction
ZK-660A is now china's most advanced and most efficient equipment of producing perfect bottom-locked cardboard cartons and cover like shoes boxes, shirt boxes, garment boxes, gift boxes, and other boxes. The machine wrapped the box in one process. It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping, and box coming out in one process. The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 50 times. (Please visit our website or call us for the detail information)


Advantages:
Comparing with other semi-automatic machine or handmade working, our full-automatic machine has more advantages:
1. We only need 2 operators to run the machine. However semi-automatic machine need about 12 skilled employees.
2. Our machine needs the hot melt glue, which has no pollution to people. However semi-automatic machine use the white glue or industrial glue, which has the fatal damage to people's health.
3. The quality of the finished box is good, because it was controlled by the computer and accurate servo motor. The error is about 0.5mm. However the semi-automatic machines make the box by their eyes and experiences. The error is big.
4. Our machine has the fast speed to make the box, about 1500pcs/hour. And the broken error probability is less than 2%.

Lines for the production of rigid set up boxes
(luxury boxes, luxury packaging, gift boxes, wine and spirit boxes, shirt and shoes boxes, make-up and toiletry boxes, biscuits and cakes boxes, ring binder boxes, cd dvd and book boxes, cylindrical boxes).

Paper wrap size	Amin	150mm		Paper wrap grammage	Min	100g/
	Amax	580mm			Max	160g/
	Bmin	180mm		Cardboard blank thickness	Min	0.8mm
	Bmax	660mm			Max	3mm
Box size	Lmin	125mm		Speed		1500(Cycle/h)
	Lmax	400mm		Paper pile height		260mm
	Wmin	85mm		Cardboard pile height		1000mm
	Wmax	300mm		Electrical power		20kw
	Hmin	20mm		Glue tank capacity		45(Litre)
	Hmax	125mm		Air supply		12(Litre/min)
Turn in depth :R	Rmin	12mm		Net weight		7030kg
	Rmax	35mm		Machine overall dimension		L6.8XW3.5XH2.9m
