Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

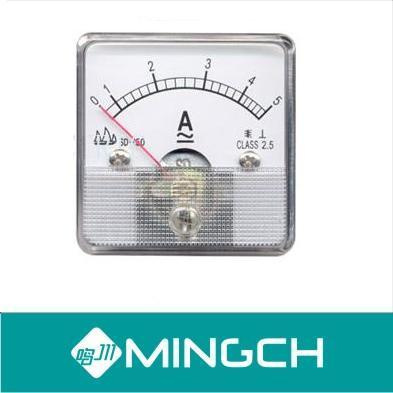

AC Ammeter
Model: AM-96 AM-72 AM-48
Class: 1.5
Specs: 0.1A 0.5A 1A 1.5A 3A 5A 7.5A 10A 15A 20A 25A 30A 50A 75-105A(use
Ext. CT 5A)
Note: For60/75/100A direct meter, the class is 2.5.
Advantage: The scale can be easily changed without opening the front frame so
That the class will not be influenced.
DC Ammeter
Model: AM-96 AM-72 AM-48
Class: 1.5
Specs: 25uA 50uA 1mA 2mA 5mA 10mA 20mA 30mA 50mA 75mA 100mA 150mA
200mA 250mA 300mA 500mA 1A 3A 5A 7.5A 10A 20A 30A 50A 75-105A(used
With Shunt)
Feature: The scale can be easily changed without opening the front frame so that
The class will not be influenced.
DC Voltmeter
Model: AM-96 AM-72 AM-48
Class: 1.5
Specs: 3V 5V 7.5V 10V 15V 20V 50V 75V 100V 120V 150V 200V 250V 300V
400V 450V 600V
Note: Over 600V should be used with Ext. Resistor. (Rated Cuuent 5mA).
AC Voltmeter
Model: AM-96 AM-72 AM-48
Class: 1.5
Specs: 30V 50V 75V 100V 120V 150V 250V 300V 450V 600V For 450-380KV,
DC Voltmeter
Model: AM-96 AM-72 AM-48
Class: 1.5
Specs: 3V 5V 7.5V 10V 15V 20V 50V 75V 100V 120V 150V 200V 250V 300V
400V 450V 600V
Note: Over 600V should be used with Ext. Resistor. (Rated Cuuent 5mA).
AC Voltmeter
Model: AM-96 AM-72 AM-48
Class: 1.5
Specs: 30V 50V 75V 100V 120V 150V 250V 300V 450V 600V For 450-380KV,
MODEL: AM-96 AM-80 AM-72 AM-60 AM-50
Struction: Moving Coil, Moving Iron and Rectifier.
Class: 2.0 2.5
POWER METER
Wattmeters with built-in converter for 1 phase, 3P 3W, 3P 4W.
Model: AM-96 AM-72
Class: 1.5
Voltage: 50V 100V 220V 240V 220/380V 240/415V
Current: 5a
These meters are used with potential secondary voltage 100V voltage transformer
Or secondary current 5A CT. Wattmeters with built-in converter for 3P 3W, 3P 4W
And single phase.
POWER FACTOR
For 3 phases circuits, balanced load 45-65Hz and for 1 phase AC 50Hz.
Model: AM-96 AM-72
Class: 2.5
Voltage: 100V 380V 440V
Frequency: 50Hz 60Hz
Scale graduation: 0.5cap-1-0.5ind 0.3cap-1-0.7ind 0.4cap-1-0.4ind 0.7cap-1-0.
3ind.
Yueqing Mingchuan Electric Co., Ltd is a manufacturer specialized in
development, production, marketing as a body to produce electric power voltage regulators/stabilizers. since origination, it has been persisting in taking the science and technology as the forerunner, the abundant technique as a backing, and positively introducing the overseas advanced technology, unceasingly improve and consummate the products, many years specialized management, our products has been the best-selling in own Chinese nation, meanwhile export to Bangladesh, Mayanmar. India, Russia, Indonesia, Thailand and other countries in southeast Asia and Africa area, they are highly praised and welcomed by foreign customers.
Our company has been persisting in regarding"being realistic, innovation, development"as the operation ideas, combining with today's modern science and technology along with economical high speed development, the applications of information technique and micro electron technique as well as pretty massively power units has more and more serious requirements on the quality of power supply, under these bad extremely unbalanced situations of our nation AC electrical netwok constructions and developments, in addition, electric quantity supply not well, therefore a new series electric power voltage regulator products are reserched and developed accordingly will satisfied each kind of special current equipements and some places that need voltage regulator, our company products are widely used in the situations where all need normal voltage guaranteed, such as the industry and mining enterprises, the textile machinery, the printing packing, the petroleum chemical industry, the school, the market, the elevator, the post and telecommunication correspondence, and the medical machinery etc.
Yueqing Mingchuan Electric Co., Ltd promises"taking the good faith as base, the long-term cooperation as target", promptly to help you exclude the difficulty and anxiety, Yueqing Mingchuan Electric Co., Ltd sincerely expects for your joins, sharing double-win joyfully.
