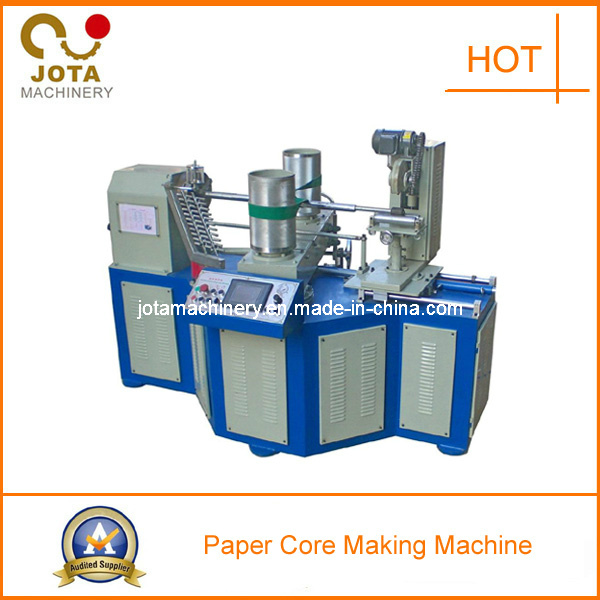

Paper Core Machine for Making Cores

Product Specifications

Prod Model:	JT-50A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Paper Core Machine for Making Cores
Computer:	Programmed Control System
Touch Screen:	Hightech From Taiwan
Cutting Blade:	Long Working Life
Double Side Glue Coating Devices:	Adopted
Paper Roll Layer:	3-10 Layers
Paper Core Diameter:	10-120mm
Core Thickness:	0.6-5mm
Core Length:	500-5000mm
Material:	Kraft Paper
Certification:	CE
Type:	Paper Core Machine

Product Description

Paper Core Machine for Making Cores


Specifications:

Paper Core Machine for Making Cores is used for making all kinds of paper core in different diameter and length which is used for gift packing, tissue paper, stretch film, fax paper etc. It can make flowers, cloth movements, Split, cotton yarn, fax paper, film preservation, tissue paper and pipe tobacco production. Special high-precision lathe with a fixed three-jaw chuck, top flange bear more than solid, more convenient replacement Spindle.

It adopts Programmed Control System and HIGHTECH touch screen from Taiwan, all the parameters can be displayed on the control panel, and easy operation.

It adopts separate electrical control box, and it is with input plug terminal, the after-sale service and repair shall be more easier.

It adopts imported single disc cutter to cut the paper core, it is high precision, and more bearable no longer incision more precision without wasting.
More easier.

It adopts double side glue coating devices, the paper core is more sticky and stronger.

It adopts double photocell for the paper core length tracking, after get to the setup length, the paper core shall be cut off.
