Product Specifications
| Prod Model: |
DLQC-FZ018 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Vocational Training Equipment: |
Professional Manufacture |
| Type: |
Teaching Model |
Product Description
Note: (optional models are available for customers Volkswagen Passat B5, Volkswagen Touran, Toyota Camry, etc. )
Features

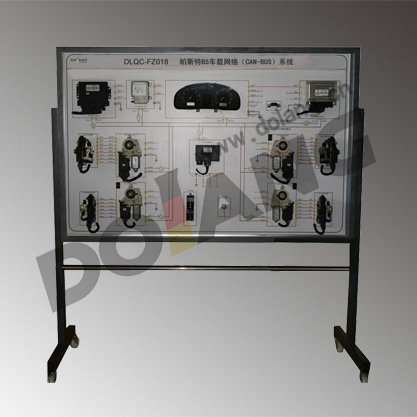

1. A real and operable CAN-BUS network system is used to illustrate the structure and works of the system.
2. Can fully demonstrate operation of Passat B5 automobile data transmission network structure and data transmission control circuit elements;
3. Through the fault diagnostic test entire power system system and comfortable CAN-BUS data transmission network and terminal control unit;
4. Through combining meter gateway control connection, you can connect the power system data transmission network and comfort systems data transmission network, combined into a complete automible CAN-BUS network systems;
5. A color circuit diagram on the instruction board is engraving via Germany imported computer laser engraving machine fixed with aluminum rims. The diagram and CAN data transmission network system can help trainees learn and analyze the operating principle of the system.
6. The instruction board is installed with detection terminals to detect electric signals, for example, resistance, voltage, current, and frequency, of circuit components of the CAN data transmission network system.
7. Do not need batteries, with DC12V power supply, reducing charging trouble, there are short-circuit proof function;
8. The instruction board is installed with a diagnosis socket connecting a dedicated or universal automobile decoder. The diagnosis socket reads fault codes, clears fault codes, and reads data stream from the engineer control unit (ECU) connected with the in-vehicle network.
9. The teaching board's base frame is made of steel and the surface is paint-coated. Self-retention wheels are installed.
Training Content
1. Automotive data transmission network structure composition and working principle project training.
2. Automotive data transmission network common fault simulation, diagnosis and detection project training
3. Automobile data transmission network signal simulation work processes project training
4. Automotive data transmission network each circuit element voltage, resistance, signal detection project training.
5. Automotive data transmission network circuit diagram analysis project training.
6. Automotive data transmission network troubleshooting and confirm training.
7. Automotive data transmission network troubleshooting and exclusions training.
Technique Features
1. Bracket adoped imported luxury car paint, sprayed at high temperatures, with anti-corrosion function.
2. Support frame material select GB high quality (40 * 60 * 3mm) square tube welding.
3. Dimensions: . 1260 × 850 × 1800mm.
Packaging And Delivery Details:
Packaging Detail:
1). Packaging for training kit: Plastic package + carton + plywood pallets
2). Packaging for training equipment: Plastic package + plywood pallet
Delivery Detail: 40 to 50 days after Received advanced payment.
After-Service And Training for Foreign User
1) For our exported equipments, the Warranty is one year, within one year, if there is any problem for spare parts(except damage by man-made) We can supply and replace free of charge. And if after one year, we also supply the service. The difference is user need to pay it.
2) We dispatch our professional and experienced engineer to install equipments and make training for th
