Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

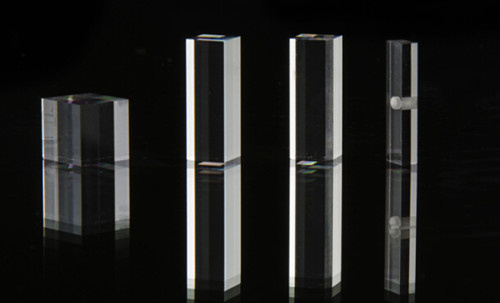

Lead Fluoride(PbF2) crystal grown from a melt exist in cubic form, it has high density (7.77g/cm3), short radiation length (0.93cm) and small Moliere radius (2.2cm), and its transmittance extends to the near UV (250nm)
Basic information of PbF2 scintillator
Growth method: Bridgman
Dimension range: Diameter 50-60 mm x 150-160mm length
Available items: Monolithic crystal
Typical Features of PbF2 scintillator
PbF2 scintillator grown from a melt exist in cubic form (b-PbF2), the most outstanding properties are its high density (7.77g/cm3), short radiation length (0.93cm) and small Moliere radius (2.2cm), and its transmittance extends to the near UV (250nm), It also show rather good radiation hardness and the radiation damage can be cured by optical bleaching.
Main applications of PbF2 scintillator
Being a Cherenkov radiator, it dose not produce as much light as a scintillating crystal, but its light output is sufficiently high to give an energy resolution equal to or better than lead glass. The relatively inexpensive cost make it a very promising material for electromagnetic calorimeter. In addition it is an attractive candidate for use in reactions where particle multiplicities are very high or where a high degree compactness is desired.
EPIC Crystal manufactures and designs scintillation crystals, including Cesium Iodide CsI(TI) and CsI(Na), Sodium Iodide NaI(TI), Bismuth Germanate BGO, Silicate Yttrinm Lutetium LYSO(CE) and Plastic Scintillator. Established in 2005, EPIC has become well recognized for providing essential components to X ray and Gamma ray detection.
