Product Specifications
Prod Model: |
ACR122U |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operating Distance: |
<= 50mm |
Supply Voltage: |
Regulated 5V DC |
Operating Temperature: |
0-50°c |
Operating Frequency: |
13.56 MHz |
Standards/Certifications: |
ISO14443 1-4, CE, FCC, RoHS Compliant |
Dimensions: |
98 mm (L) X 65 mm (W) X 12.8 mm (H) |
Weight: |
70g |
Installation: |
External (',634) |
Card Slots: |
All in 1 / Multi in 1 (',245) |
Interface: |
USB |
Type: |
Smart Card Reader |
Product Description
General

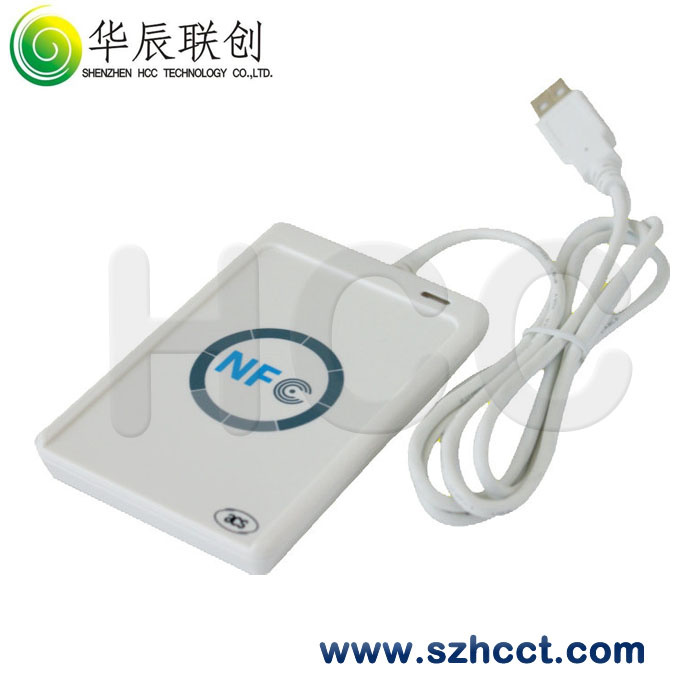

ACR122U is a PC-linked contactless smart card reader/writer developed on the 13.56MHz Contactless (RFID) Technology and followed the ISO/IEC18092 Standard for Near Field Communication (NFC), supporting not only Mifare® ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.
The ACR122U is a USB Plug and Play device with CCID compliance. By making use of up to 424 Kbps for NFC Tag access and full USB speed of up to 12 Mbps, the ACR122U can read and write faster and more efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use. Operating distance can be extended on request by adding an RF boaster, so the ACR122U is suitable for logistics and supply chain management.
In order to increase the security level, the ACR122U can be optionally integrated with an ISO7816-3 SAM slot. In addition, the ACR122U is available in module form for easy integration into bigger machines, like POS terminals, physical access devices and vending machines.
With excellent performance and flexibility, you can experience the convenience and benefits offered by the ACR122U.
Feature
USB Full Speed (12 Mbps)
USB PnP
Bi-Color LED
Built-in Antenna
NFC Reader
ISO/IEC18092 (NFC) compliant
NFC Tags Access Speed = 424 kbps
Contactless Smart Card Reader
Support FeliCa card
Support ISO 14443 Type A & B cards
MIFARE® cards (Classics, DES Fire)
CCID Standard
CE and FCC Certificated
RoHS Compliant
User Controllable Buzzer (optional)
SAM Socket (optional)
Application
Home Banking and Home Shopping
E-commerce
Checking the balance of electronic purses
Network access control
Customer Loyalty Program
Identification and Authentication
Ticketing
Online gaming
Parking and toll collection
Automatic Fare Collection
Public Transportation Terminals
Physical Access Control
Time attendance
Vending machines
Contactless public phones
Logistics and supply chain management
Dimensions | 98 mm (L) x 65 mm (W) x 12.8 mm (H) |
Weight | 70 grams |
Interface | USB Full Speed |
Operating Distance | <= 50mm |
Supply Voltage | Regulated 5V DC |
Supply Current | 200mA (operating); 50mA (standby); 100mA (normal) |
Operating Temperature | 0-50°C |
Operating Frequency | 13.56 MHz |
Standards/Certifications | ISO14443 1-4, CE, FCC, RoHS Compliant |
Operating System Support | Windows 2000, 2003, XP 32, XP64, Vista 32 and Vista 64, Android 3.1 and above |
