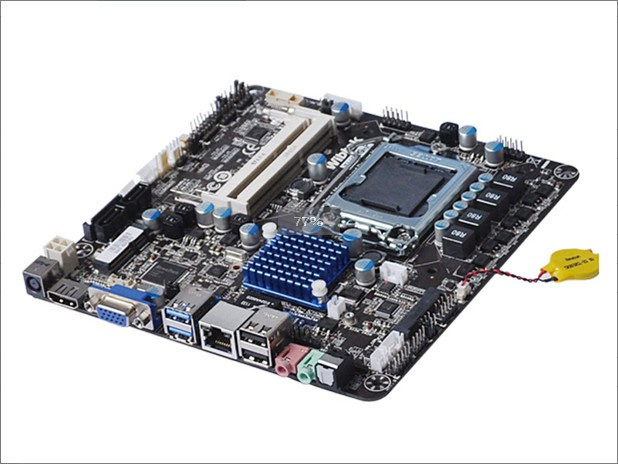

PC Motherboards Support I3/I5 with LGA1155 CPU (TH61)

Name: PC Motherboards Support I3/I5 with LGA1155 CPU (TH61)
Brand: china-manufacturer-directory.com
SKU: 698293705
Availability: InStock
Rating: 4.4 (124 reviews)

Supplier:	Huizhou Dayawan Fox Etech Limited
Price:	Negotiable
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	TH61
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Integrated Graphics:	Integrated Graphics
Main Chipset:	Intel
Structure:	Mini-ITX
Memory:	DDR3
CPU Socket:	LGA 1155

Product Description

What is MainBoard?
The mainboard is the part of most any technology device you may own today where everything comes together. It's where the data is crunched, where all the peripherals are plugged in; The central hub for everything that goes on inside of your computer, satellite receiver, router, modem, cell phone, etc. The mainboard is ever-evolving into something new and exciting for the technology enabled world.

CPU&Chipset
CPU	Intel Core i3/i5 Processor With LGA1155 CPU Processor Series
CPU
System Bus Support	DMI
Memory Support	DDR3 1066/1333
Max Memory	8GB
DDR3 DIMM Sockets(QTY)	*2
Graphics Interface	Intel HD Graphics 2000/3000 Support 1080i/1080p Video HD Decoder
Chipset	Intel H61
BIOS
SPI	32M
BIOS(Standard or Custom)	Custom
Discrete Components&Features
Integrated LAN1	RTL8111E 1000M Ethernet Controller(RTL8105EL 10/100M Optional)
HD Audio Codec	Azalia Codec ALC662/ALC661
PATA Controller	N/A
Support I/O	ITE 8758
Add-in slots
PCIEX16 Slots	N/A
PCIEX1 Slots	N/A
PCI Slots	N/A
MINI-PCIE Slots	2(Half-height card1,Full-height card*1)
Back Panel
USB Ports(Qty)	4(USB3.02+USB2.0*1)
DC JACK	*1(19V~3.4A / 12V~5A)
PS/2 Keyboard	N/A
PS/2 Mouse	N/A
VGA Connector	*1
HDMI Connector	*1
DVI Connector	N/A
Serial Ports	N/A
Parallel Ports	N/A
S/PDIF Out Audio Ports	*1
RJ45 LAN Connector	*1
Line-Out	*1
Mic-in	*1
Internal Headers
SATA Connectors	*2
PATA Header	N/A
USB Header (2×5-pin 9 keyed)	*2
additional USB Header (1×4)	*1
LVDS Connector(40Pin)	*1
eDP Connector(40Pin)	*1
FPD Brightness connector(1x8)	*1
Inverter Power	*1
LCD Power	*1
Serial Port Header	*1
COM Power Select Header (2x3)	*1(COM Support 12V & 5V option)
InfraRed Header	*1
Chassis Main Panel Header(2×5)	*1
Front Audio header(front panel mic/hp)(2×5)	*1
PS/2 KB/MS Header (1x4)	*1
S/PDIF Out Audio header(1x2)	N/A
3G SIM Card header(1x4)	*1
Internal Mic Header(1×2)	*1
Speaker Connector(1×6)	*1(2W~3W)
Internal Speaker Header(1×4)	*1
USB Power Select Header (1x3)	*2
ME_PROTECT Select Header (1x3)	*1
Clear CMOS Header (1X2)	*1
Clear CMOS Header (front panel)(1X2)	*1
Power Headers
Universal Power Connector	*1(2x2)
Thermal Headers
CPU Fan	*2
System Fan	*1
Size	MINI -ITX(170mm*170mm)
