Product Specifications
| Prod Model: |
Y&D 7400N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Y&D |
| MOQ: |
1 Set |
| Capacity: |
OEM,Own-Factory |
| Guarantee: |
365 Days |
| Motor System: |
Electric |
| Feature: |
High Precision |
| Type: |
Fully Automatic |
| Robot Weight: |
41kg |
| Voltage: |
585*610*610 |
| Warranty: |
1 Year |
Product Description
Y&D7400N Series Dispensing Robot
Common application scope: Automobile mechanical parts coating, cell phone buttons point glue, mobile phone battery packaging, laptop battery package, the coil point glue, PCB bond fixed sealant, IC sealant, horn external punctuate glue, PDA sealant, LCD sealant, IC packaging, IC bonding, casing bonding, optical device processing, mechanical seal, etc.
Applicable fluid: Silica gel, EMI conductive adhesive, UV glue, AB glue, fast dry glue, epoxy adhesive, sealant, hot glue, grease, silver glue, red glue, solder paste, cooling paste, prevent solder paste, transparent lacquer, screw fixation agent, etc.
Main use: The product in the process of bonding, infusion, coating, sealing, filling, drop, linear/arc/round glue, etc. Dispense in point, line, surface, arc, circle and irregular curve and triaxial linkage function is available etc.
7400N
1.A powerful compact-sized desktop robot with a working area of 400mm x 400mm x 100mm . Its reduced bench top footprint makes it an ideal robot for automating a dispensing application . Programming is by teach-pendant, using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.
2.The model 7400N is a large desktop robot in the compliant 7000N series, offering a generous working area of 400mm x 400mm x 100mm .Y&D robots are suitable for adhesives, silicones and UV Cure resins. The 7400Nhas been engineered to accept a tool weight of up to 5 Kg and a worktable load of 10 Kg, making the system tough enough for a wide range of automated dispensing applications.
Features
| Dispensing area | 400mm x 400mm x 100mm |
| Repeatability | 0.01mm/Axis for accurate dispensing |
| No computer skills required | Min100 Group and 4,000 points per Group |
| Continuous path motion for precision XYZ dispensing | Interpolates lines or arcs for three-dimensional dispensing |

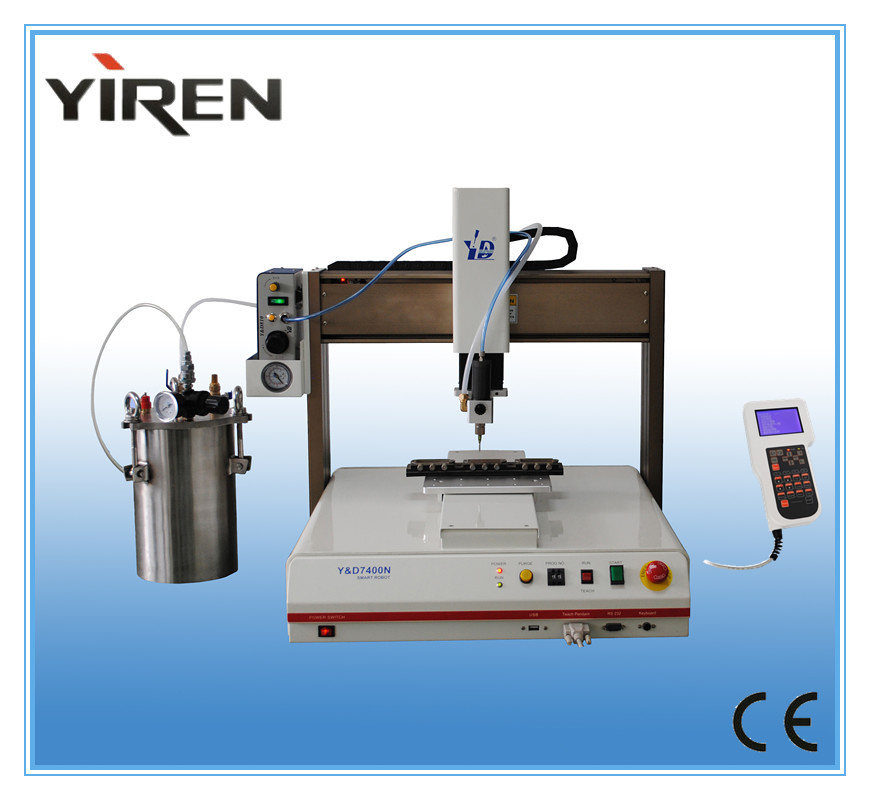

The picture we attached is only for your reference. If you need our machine, we can recommend you in accordance with your requirement . Also we can give your different solutions.It is a best way to match Y&D robot with Y&D accessories. It is good for your using.
Our standard device : Y&D automatic robot + Y&D810 dispenser controller+Teach pendant for programming +other accessories.
Dongguan Yiren Industry Co., Ltd. Which is short for Y&D was founded in 2005 is a professional high-tech company providing liquid control and Automatical dispenser equipment. After 8 years' development, we have obtained a leading position based on innovation and specialty in this kind of industry in China. Also we have passed I S O 9 0 0 1 and many of our major products have got CE certificates. With efforts, Y&D gained a number of national invention patents for different machines. In order to cater for requirments of different industry, Y&D has produced and will continual to produce high quality and plactical products.
We are one of the earliest developers of application robots which are used extensively in liquid control and dispenser equipment industry today in China. Our aim is to provide complete solutions for automation of large and middle scale companies. Currently, Good quality, timely and thougtful after sale service makes us gain lots of customers all over the world. If you are looking for a professional supplier of liquid control and dispenser equipment with creativity, advanced technology and rich experience, please contact us at any time. We will provide internationally advanced products for you. We warmly welcome both domestic and abroad customers to visit our company to guide and give us some constructive suggestions.
We are looking for import agents or distributors for a long term relationship. If you are interested in us, welcome to contact us anytime.
