Shanghai Hufei Cable Co., Ltd. >> Pet Insulated PVC Sheathed Onter Shieided Computer Cable

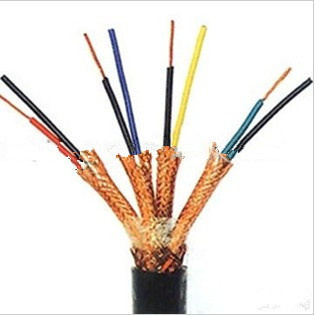

Pet Insulated PVC Sheathed Onter Shieided Computer Cable

Name: Pet Insulated PVC Sheathed Onter Shieided Computer Cable
Brand: China-Manufacturer-Directory.com
SKU: 679334952
Availability: InStock
Rating: 4.8 (149 reviews)

Supplier:	Shanghai Hufei Cable Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1000/Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DJYVP DJYPV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Power Cable
Application:	Computer

Product Description

1. CCC certification
2. Professional system
3. Good quality
4. Fast delivery

Computer cable
1. Standard
The products is manufactured according to the standard Q/320282DCE021-2001, and the same time is also manufactured according to the standard of English and Japanese standard.
2. Application
The cable are manufacture to meet stringent interference requirements and voltage up to 300/500V, It is suitable for use in computers, measuring equipment, control system and transmission of analogue signal.
3. Operating characteristics
Rated power-frequency voltage Uo/U: 300/500V
Max. Admissible operating temperature of the conductor: 70° C
4. Cables model, name and application

Model	Name	Application
DJYVP	PET insulated PVC sheathed inter shielded computer cable	To be fixed installed in indoor, cable channel or pipe.
DJYVPR	PET insulated PVC sheathed inter shielded flexible computer cable	To be fixed installed
DJYP2V	Copper core pet insulated pair with copper shielded layer	To be fixed installed
DJYVP2	Copper core polythene insulation paired with copper tape shielded sheath computer cable	Fixedly installed
DJYP2Y	Copper core polythene insulation paired with copper tape shielded polythene sheath computer cable	Fixed installed outdoors
DJYP3Y22	Copper core polythene insulation paired with aluminium foil/plastic film compound shield polythene sheath steel tape armoured computer cable	Upright bury installed

5. Specfication size and technology data

Reference outer diameter of 2-strand cable

Pair no. X core X dia	Reference outer dia(mm2)
Pair no. X core X dia	DJYVP	DJYVPR
1 x 2 x 0.5	7.7	7.9
3 x 2 x 0.5	15.5	16.0
5 x 2 x 0.5	17.6	19.8
8 x 2 x 0.5	20.5	23.2
10 x 2 x 0.5	22.8	26.1
12 x 2 x 0.5	23.9	27.2

Shanghai Star Enterprise", Shanghai Hufei Cable Co., Ltd., with a 40% staff of higher education, focuses on R&D, manufacturing, marketing communication cables and medium/low voltage electrical cables; The main equipments were imported from SIKORA in Germany, HIPOTTRONIC in USA and Nokia in Finland. We have established large-scale production bases in Shanghai, Wuhan and Zhengzhou. Our hit product, communication cables have been exported to Southeast Asia/Middle East/Africa, etc.

As one of the leading manufacturers of cable industry in China, we had obtained certificate of ISO 9001-2008, TLC quality certification and met the standards of China Compulsory Certification (CCC). Our hit products, communication cables have gained the advantages over similar products: More reliable quality, more cost-effective, complete range of articles. Welcome your enquiry and visit.
