Yueqing Shangjing Rectifier Co., Ltd. >> Phase Control Thyristor (Capsule Type) Kp3000A1600V

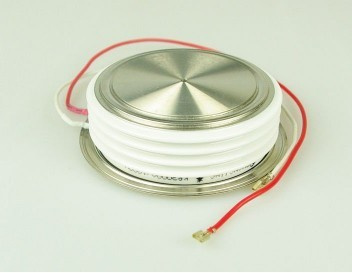

Phase Control Thyristor (Capsule Type) Kp3000A1600V

Name: Phase Control Thyristor (Capsule Type) Kp3000A1600V
Brand: china-manufacturer-directory.com
SKU: 663447921
Availability: InStock
Rating: 4.9 (75 reviews)

Supplier:	Yueqing Shangjing Rectifier Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Box
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	KP3000A1600V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Element Semiconductor
Package:	SMD
Manufacturing Technology:	Semiconductor
Type:	Power Semiconductor

Product Description

Features
Total diffusion process
Ceramic disc type seal
Central amplifying gate structure
Double-sided cooling
Heavy current

Typical Applications
High-power converter
AC & DC motor control
AC & DC switch
Phase control rectification
Inverter

Explanation
IGT, VGT, IH are TA=25° C test data, others are all TA=Tjm test data.
I2t=I2TSM× TW/2: TW=Half sine wave current when at 50Hz, I2t=0.005I2FSM(A2S)
When at 60Hz ITSM(8.3ms)=ITSM(10ms)× 1.066, Tj=Tjm
I2t(8.3ms)=I2t(10ms)× 0.943, Tj=Tjm

Type	V_DRMV_RRM	I_T(AV)	I_TSM	dv/dt	di/dt	I_DRMI_RRM	I_GT	V_GT	I_H	V_TM/I_TM	R_th(j-hs)	T_jm	M 2	Outline
		T_HS55° C	10ms				25° C
	V	A	kA	V/μ s	A/μ s	mA	mA	V	mA	V/A	° C/W	° C	kN
KP200A	100-6000	200	2.5	300	100	30	35-250	0.8-2.0	20-150	1.2/600	0.090	125	3.3-5.5	E1/E2
KP300A	100-6000	300	3.8	500	100	30	35-250	0.8-2.0	20-200	1.5/900	0.065	125	5.3-10	E1/E2
KP400A	100-6000	400	5	500	200	40	35-250	0.8-2.0	20-200	1.5/1200	0.040	125	10-20	E1/E2
KP500A	100-6000	500	6.4	800	200	40	35-250	0.8-2.0	20-250	1.6/1500	0.033	125	15-20	E2/E3/E5
KP600A	100-6000	600	6.4	800	300	40	35-300	0.8-2.0	20-250	1.6/1800	0.022	125	10-20	E2/E3/E5
KP800A	100-6000	800	10	1000	300	50	40-300	0.8-2.0	20-250	1.8/2400	0.022	125	15-20	E5/E6
KP1000A	100-6000	1000	13	1000	500	80	40-300	0.8-3.0	20-300	1.8/3000	0.020	125	21-30	E6/E8
KP1200A	100-6000	1200	15	1000	500	120	40-300	0.8-3.0	20-300	1.8/3000	0.020	125	21-30	E8
KP1500A	100-6000	1500	20	1000	500	120	40-300	0.8-3.0	20-300	1.8/3000	0.016	125	27-34	E8/E9
KP1800A	100-6000	1800	22.5	1000	500	160	40-300	0.8-3.0	20-300	1.8/4000	0.016	125	30-40	E11/E12/E13
KP2000A	100-6000	2000	25	1000	500	160	40-300	0.8-3.0	20-300	1.8/4000	0.011	125	35-47	E11/E12/E13
KP2500A	100-6000	2500	31	1000	500	200	40-300	0.8-3.0	20-300	2.0/5000	0.011	125	35-47	E11/E12/E13
KP3000A	100-6000	3000	38	1000	500	200	40-300	0.8-3.0	20-300	2.0/5000	0.011	125	35-47	E14/E15
KP3500A	100-6000	3500	44	1000	500	250	40-300	0.8-3.0	20-300	2.0/5000	0.011	125	70-85	E14/E15
KP4000A	100-6000	4000	44	1000	500	250	40-300	0.8-3.0	20-300	2.0/5000	0.009	125	70-85	E14/E15
KP4500A	100-6000	4500	44	1000	500	250	40-300	0.8-3.0	20-300	2.0/5000	0.009	125	70-85	E15
KP5000A	100-6000	5000	44	1000	500	250	40-300	0.8-3.0	20-300	1.8/5000	0.0135	125	70-85	E15

China Shangjing Rectifier Co., Ltd. Was co-founded by China DELIXI Group, Shanghai Rectifier Co., Ltd. And Jingtai Electric Co., Ltd. In 1999. As one of the most professional manufacturers of power semiconductors and silicon rectifying whole set equipments, our company has been devoted to provide the high quality semiconductor products for our customers all over the world.
Shangjing Rectifier Co., Ltd. is located in Liushi Town which is well known as the "Capital of Electric City" in China. We are very close to the Wenzhou Airport and the deep-water sea port, which makes it very easy for us to reach our customers from the whole world.

Our company has been certified by China Industrial Department and we have got CE certificate. Furthermore, our products are compliant to the latest RoHS directions.

We have brought advanced technologies and equipment from abroad and kept improving our management and products quality. We stick the spirit of "Chasing for high quality and Servicing our clients with all our heart and credibility", we have gained a lot of honors like "AAA class China quality & credibility company", "member of China Electric Industry Association", etc. We have been exporting our products to Europe, South and North America, Middle East, Africa and earned a lot of good feedback.

We hope our high quality products and service will be bringing successful future to all our customers.
