Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Torch Type: |
Flame/Plasma |
| Model: |
Ncm-Xy3(3-Axis) / Ncm-Xy6 ( 6-Axis) |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Automation: |
Automatic |
| Type: |
Cutting Machine |
Product Description

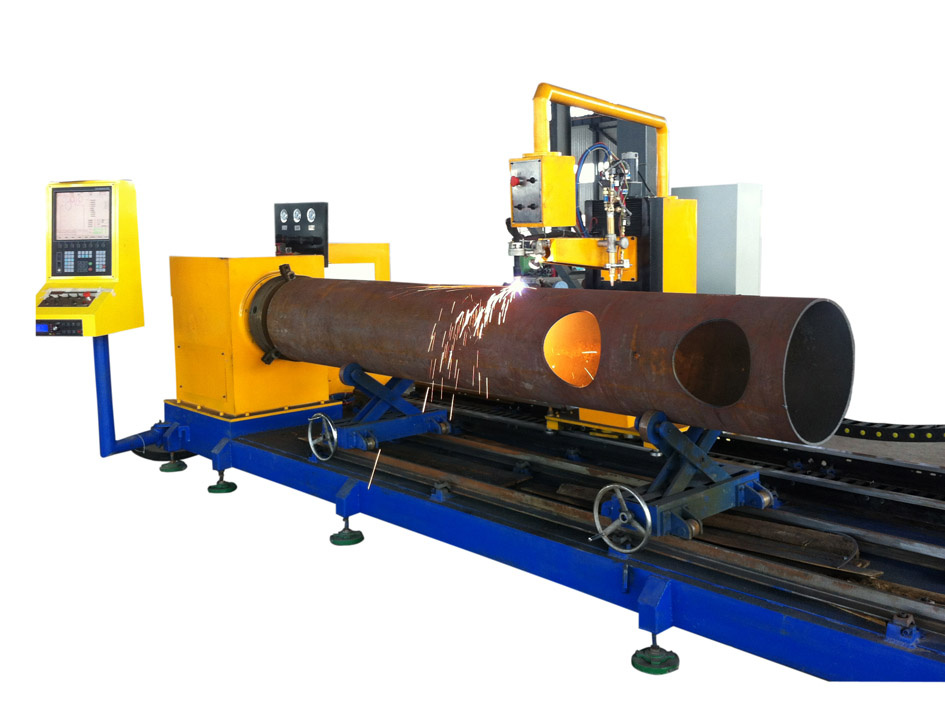

Features: 1.Equipped with professional control system for variety types of cuts, including tees, miters, saddles, centerline offsets, multiple intersections, elbow supports, gusset slots; round, rectangular, saw cut, overlapping pipe holes, re-pads with axial offsets and baseline or work point offsets, and other types of intersecting cuts.
2.Precise casting parts and strict manufacture and test procedures ensure high accuracy, reliability and durability.
3.Integrated with powerful Canada's specialized programming and computing modules for complicated large steel structure construction, it can generate CNC codes from AutoCAD drawings to save operators and engineers' time. And these modules are compatible with IGES, DXF, SAT and STL files.
4.Automatic, servo driven height sensing system compensates vertical position for out-of-round pipe. In-feed and out-feed conveyors available for loading/unloading.
5.3D operating interface for easy operation. Use:CNC pipe professional cutting is well used in Steel construction: arenas/stadiums, bridges, attractions, exhibition centers, airports; Process industry: piping, skids, manifolds, heat exchangers, boilers, pressure vessels, power plants, refineries; Shipbuilding: piping, ventilation works; Offshore: subsea structures, jack-ups, stingers, heli decks.Specification:| Specifications | Unit | NCM-XY3(3-axis) | NCM-XY6 ( 6-axis) |
| Cutter system |
| Cutting length | mm | 6000(or customized) | 6000(or customized) |
Cutting diameter |
| 0° | ≤ ±45° |
| Bevel Angle | mm/min | 6000 | 6000 |
| Torch Type and Quantity |
| Flame/Plasma, 1 | Flame/Plasma, 1
|
| Cutting Thickness | Flame cutting: 6-60mm; Plasma cutting: depends on plasma source, please contact our representatives for more information |
Cutting Speed
| Depends on raw materials, please consult with our representatives for more information |
| Accuracy |
| Positioning Accuracy | mm/m | ≤ 0.3 | ≤ ±0.3 |
| Repeatability | mm/m | ≤0.2 | ≤ ±0.2 |
| Main Drive Rotation | degree | 0.2° | 0.2° |
Torch Tilting | degree | 0° | 0.5° |
Note:3-axis, 4-axis, 5-axis, 6-axis, 7-axis systems are available for customization.Image
NCM Group has been an expert in design and manufacture of construction equipment and computer numerical control (CNC) machines. NCM Group provides construction related engineering services and products, such as concrete batch plants, asphalt batch plants, stabilized soil batch plants, concrete pump trucks, concrete pump trailers, truck mixers, belt conveyors, tubular screw conveyors, cement silos, and mixers with focus on quality, safety and environmental care. NCM Group applies state-of-art technologies in our NCM branded CNC machines, such as CNC pipe and irregular tube plasma cutting machines, robot cutting and welding systems, CNC laser cutting machines, CNC portable pipe cutting machines, and water jet cutting machines. Feel free to contact our outstanding staff in Europe, North America and Asia, let NCM Group quality team help you to have your project delivered smoothly and on time with lower cost and risk. With over 50, 000 square meter manufacturing facilities, two research and development centers, our outstanding staff and spare parts and service points all over the world, NCM Group can deliver more values to you through maximizing operational uptime by safe, reliable, precise, and cost-effective construction equipment and CNC machines.
