Wuxi Hengtong Petrolic Machinery Co., Ltd. >> Pipe Welding

Pipe Welding

Name: Pipe Welding
Brand: China-Manufacturer-Directory.com
SKU: 682398285
Availability: InStock
Rating: 4.5 (134 reviews)

Supplier:	Wuxi Hengtong Petrolic Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1 /Piece
Quantity::

Product Specifications

Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Certificate:	CE SGS ISO9001
Processing:	Sand Blast

Product Description

Welding rotator
1. CE SGS ISO9001
2. Sand blasting
3. Taiwan Inverter, schneider electric, Siemens motor
4. Rubber, steel, PU roller

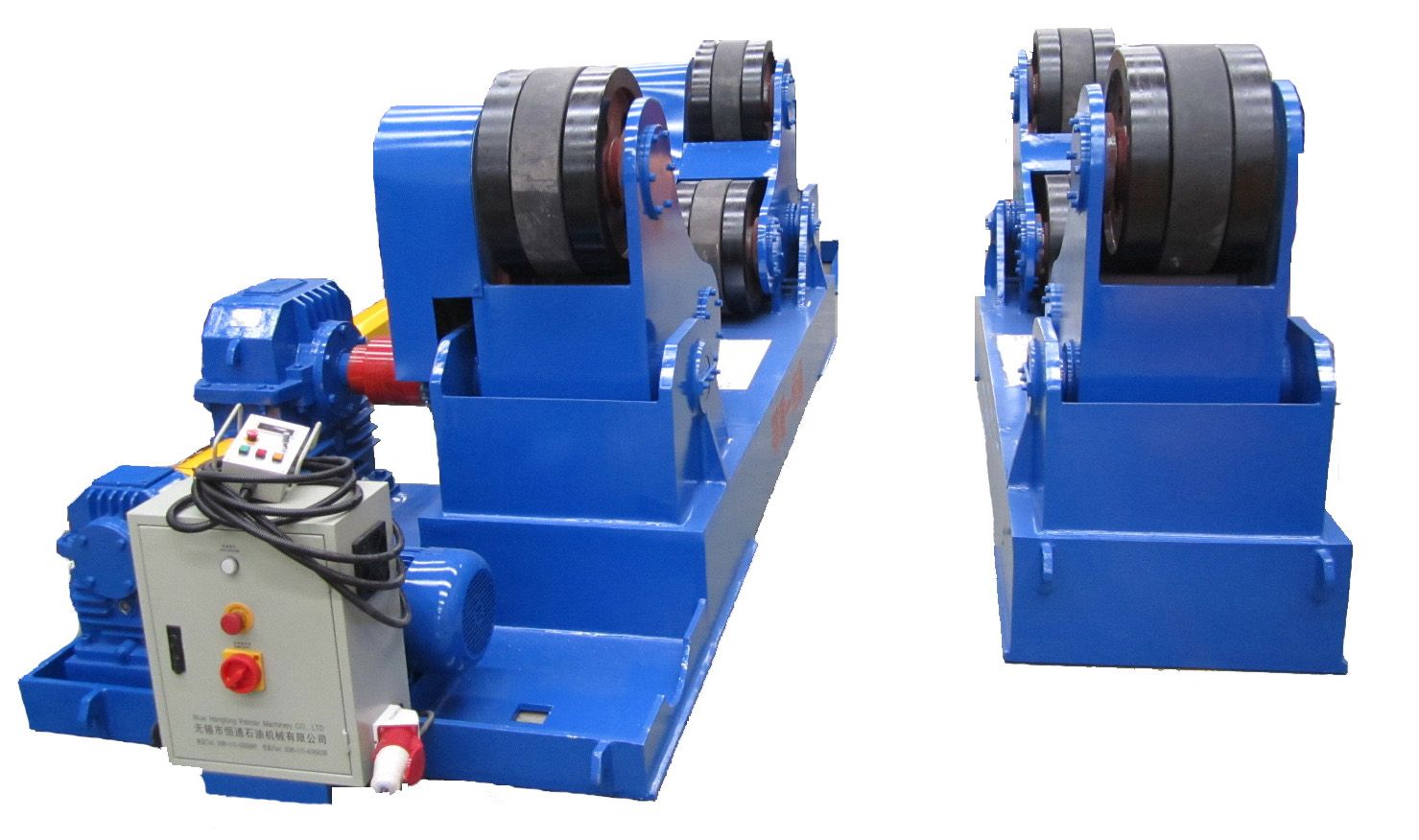

Welding rotator (turning roll, roller bed):

-Composed of driving/power unit, idler unit, electric cabinet and manually controlled panel.

-Manual controlled panel with buttons makes operation much convenient.

-Distance between rollers can be adjusted automatically to fit pipes/tanks with different diameters.

-Frequency speed control is applied for the adjustment of roller speed.

-Two steel rollers are used at both ends of rubber rollers to protect rubber rollers.

-Rollers material could also be polyurethane or steel.

-Widened rollers increase life span of rollers and reducer pressure on pipes/tanks.

type	Max loading capacity(kg)	Applicable operating range(mm)	Diameter and width of the roller(mm)		Roller speed(m/h)	Motor power(kw)	way of setting
type	Max loading capacity(kg)	Applicable operating range(mm)	Rubber roller	Metal roller	Roller speed(m/h)	Motor power(kw)	way of setting
HGZ5	5000	Φ250-2300	Φ250*100	Φ223820	6-60	0.75	Electromagnetic step-less speed control or frequency conversion step-less control
HGZ10	10000	Φ320-2800	Φ300*120	Φ228825		1.1
HGZ20	20000	Φ500-3500	Φ350*120	Φ233830		1.5
HGZ30	30000	Φ600-3800	Φ350*120	Φ233830		2.2
HGZ40	40000	Φ600-4200	Φ400*120	Φ233840		3
HGZ50	50000	Φ700-4500	Φ400*120	Φ233850		4
HGZ60	60000	Φ750-4800	Φ450*120	Φ243850		4
HGZ80	80000	Φ850-5000	Φ500*120	Φ248860		5.5
HGZ100	100000	Φ1000-5500	Φ500*120	Φ248870		7.5

We are manufacturer of two business:

1. Welding equipment: Welding rotator, welding positioner, welding manipulator.

2. Seamless tubes: Hydraulic / pneumatic cyliner honed tubes, cold drawn tubes, skiving tubes.
